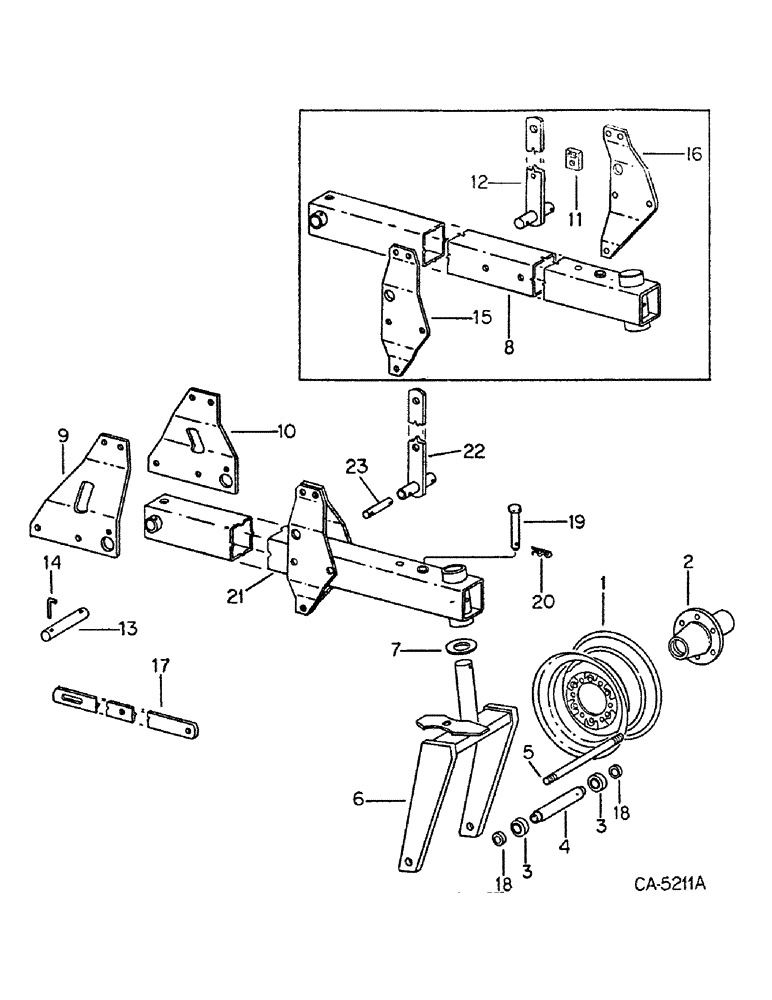

Запчасти Case IH 500 (C-46) - TRANSPORT WHEEL ATTACHMENT, WHEELS, BRACKETS AND CONNECTIONS

1

486101R2

RIM

WHEEL, 15 in., for 11L-15 tire

1шт.

655042R1

BOLT

BOLT, conical wheel

6шт.

120371

NUT,1/2"-20, G5

6шт.

2

541757R1

HUB

wheel

1шт.

3

963078R91

BALL BEARING,1.1811" ID x 2.4409" OD x 0.9449"

ball

2шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

2шт.

4

541758R1

TUBE

SPACER, axle rod

1шт.

5

100062C1

ROD, axle

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

9849633

NUT,1"-8, G5

2шт.

6

100058C2

ARM ASSY, wheel

1шт.

193244

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

1шт.

7

100063C1

THRUST WASHER

wear

2шт.

8

62130C2

TUBE ASSY, wheel, replaced by 62130C2

1шт.

66584D

FITTING

3/16 drive type STR lub

1шт.

109366

FITTING, 3/16 drive type 30 deg angle lub

1шт.

9

62128C1

PLATE, cylinder anchor LH

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

25693R1

BOLT,Hex, 7/8" - 9 x 2", Gr 8

7/8 x 2 PHC type 8

2шт.

131047

WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

10

62129C1

PLATE, cylinder anchor RH

1шт.

25693R1

BOLT,Hex, 7/8" - 9 x 2", Gr 8

7/8 x 2 PHC type 8

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

11

541782R1

STOP ASSY

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

12

62133C1

LINK ASSY, cylinder, replaces by arm 128713C1

1шт.

551183R1

WASHER, 1-17/32 x 2-1/2 x 16 ga

2шт.

22947R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

2шт.

13

100054C1

PIN

wheel tube pivot

1шт.

193244

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

1шт.

14

491601R2

PIN

pivot lock

1шт.

15

125700C1

PLATE, LH support, for tube assy 62130C1

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

16

125701C1

PLATE, RH support, for tube assy 62130C1

1шт.

17

62136C2

LINK, transport

1шт.

392194R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 std-hd

2шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2 znd std-hd

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

520175R1

CLIP

PIN, quick attachable cot.

3шт.

18

100077C1

SPACER

wheel

2шт.

19

100076C1

PIN, pointed

1шт.

20

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

1шт.

21

62130C2

TUBE ASSY, wheel, replaces 62130C1 when used w/128713C1 and 541756R1

1шт.

66584D

FITTING

3/16 drive STR lub

2шт.

22

128713C1

ARM ASSY CYL, will work for 62113C1 when used w/pin 541756R1

1шт.

551183R1

WASHER, 1.531 x 2.500 x .054 pln

2шт.

22947R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

2шт.

23

541756R1

PIN

1шт.
