Запчасти Case IH 500 (C-44) - AIR BAFFLE ATTACHMENT, REQUIRED ON HYDRAULIC BLOWER DRIVEN 16 ROW PLANTERS W/SOYBEAN DRUM

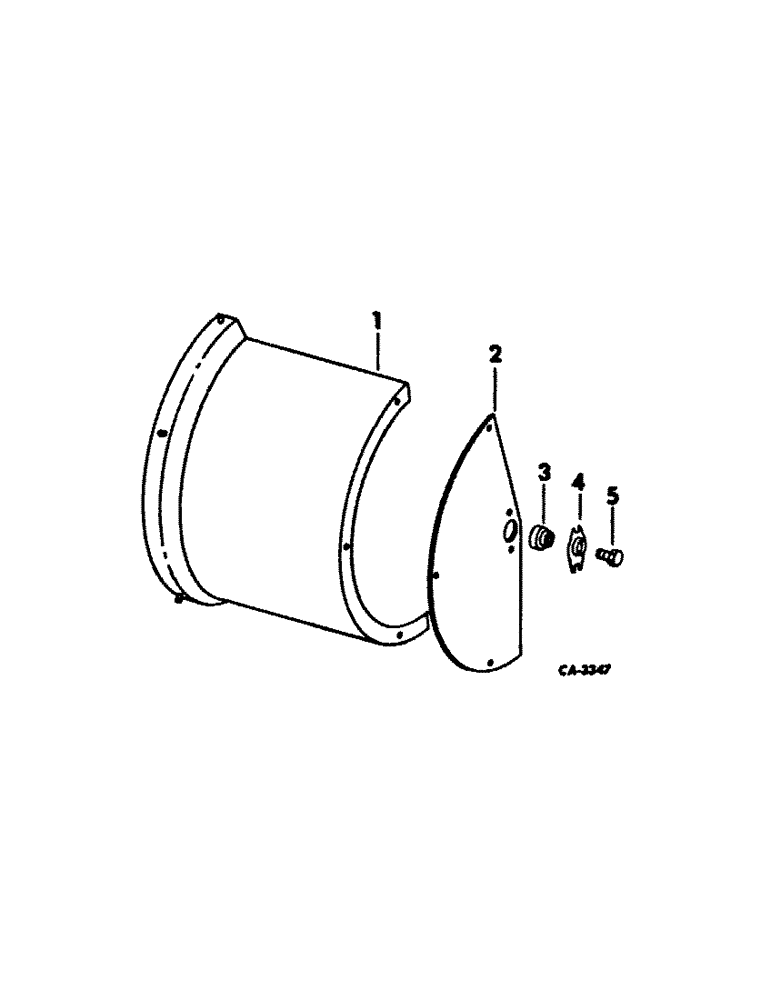

Схема запчастей Case IH 500 - (C-44) - AIR BAFFLE ATTACHMENT, REQUIRED ON HYDRAULIC BLOWER DRIVEN 16 ROW PLANTERS W/SOYBEAN DRUM
5
2
4
3
1

Артикул

Название

Примечание

Количество

1

119938C1

BAFFLE ASSY, air

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

3шт.

2

58207C2

PLATE, air baffle

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

3

543766R91

BEARING ASSY,15.88mm ID x 35mm OD x 11mm W

ASSY

1шт.

4

543731R1

FLANGE

bearing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 znd sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

1шт.
