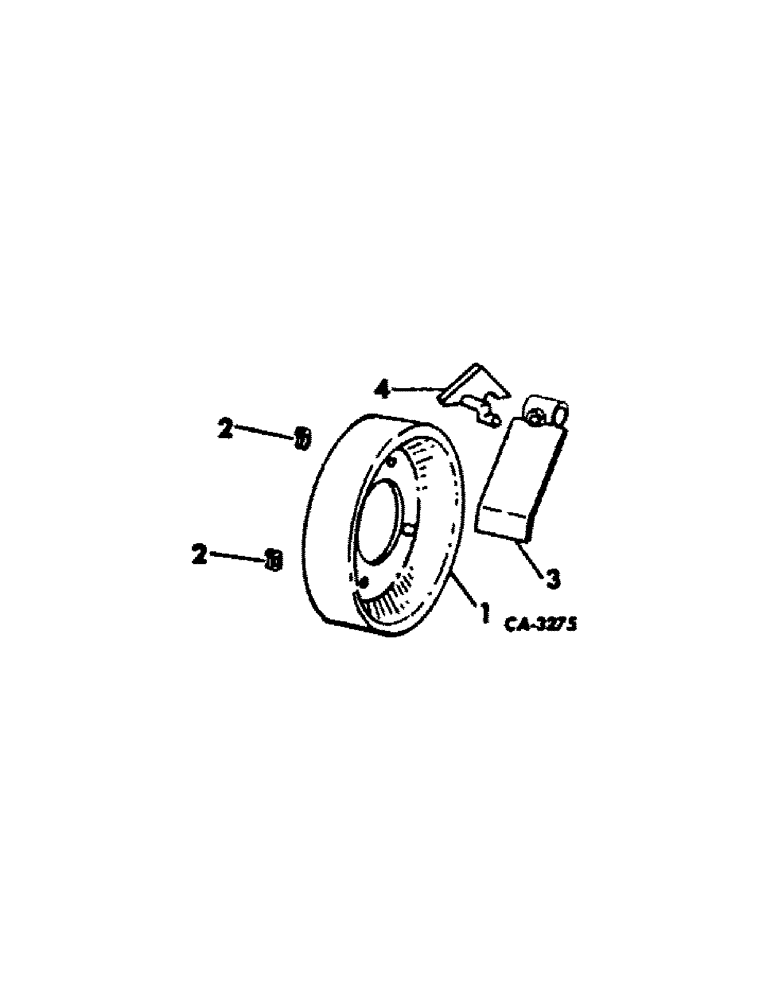

Запчасти Case IH 500 (C-43[A]) - DEPTH BAND DRUM AND SCRAPER ATTACHMENT MACHINES W/DOUBLE DISK OPENERS QUANTITIES SHOWN ARE PER ROW

1

461915R1

DRUM

depth 11-3/8 in. OD, for 3/4 in. depth adjusting

2шт.

1

542555R2

DRUM

depth 11 in. OD, for 1 in. depth adjusting

2шт.

1

493540R2

DRUM

depth 10-1/2 in. OD, for 1-1/4 in. depth adjusting

2шт.

1

524670R1

DRUM

depth 9-7/8 in. OD, for 1-1/2 in. depth adjusting

2шт.

1

493539R1

DRUM

depth 9-1/2 in. OD, for 1-3/ in. depth adjusting

2шт.

1

542671R1

DRUM, depth 8-3/8 on. OD, for 2-1/4 in. depth adjusting

2шт.

492752R1

BOLT,Carriage, 3/8" - 16 x 1 1/4"

special crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

492751R1

WASHER

disk

4шт.

3

471242R11

SUPPORT

BLADE ASSY, depth drum scraper

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2-13 x 3 znd hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znd hex. jam

2шт.

4

(Not used in this application)

1шт.
