Запчасти Case IH 500 (C-42) - DISK FURROWING ATTACHMENT, 9-1/4 IN., ONE PER ROW

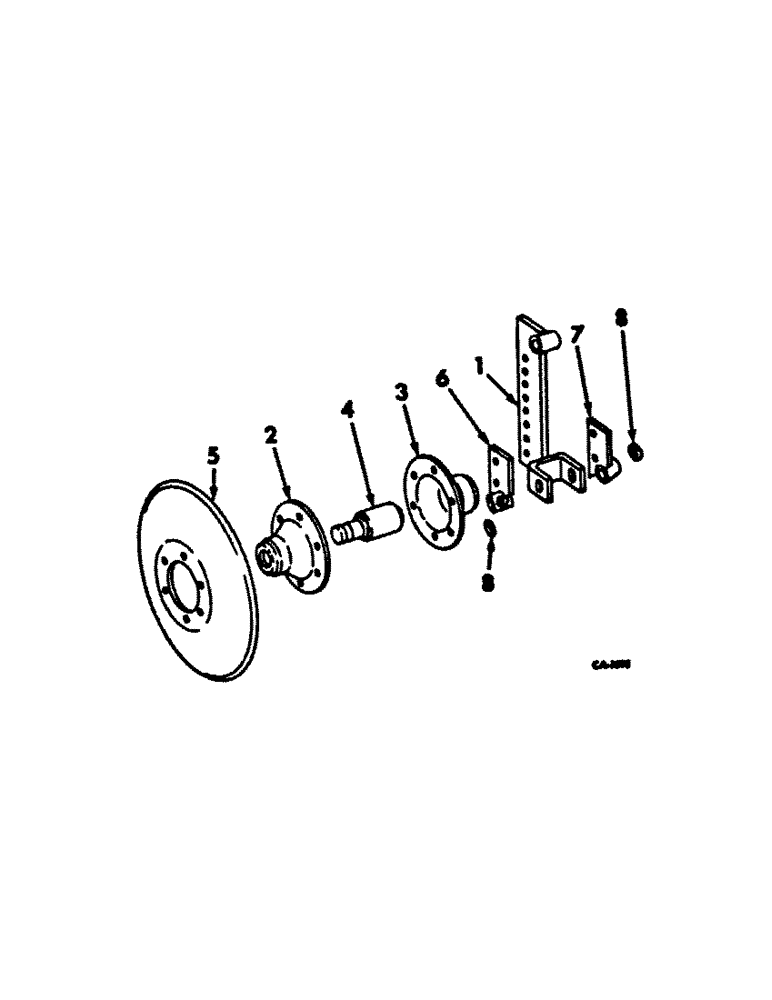

Схема запчастей Case IH 500 - (C-42) - DISK FURROWING ATTACHMENT, 9-1/4 IN., ONE PER ROW
8
5
7
4
1
3
6
8
2

Артикул

Название

Примечание

Количество

1

(Not used in this application)

1шт.

2

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

bearing inner

1шт.

3

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

bearing outer

1шт.

4

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING ASSY, disk ball

1шт.

5

480674R1

DISC

DISK, 9-1/4 in.

1шт.

104097

RIVET,But Hd, 5/16" x 3/4"

5/16 x 3/4 b-hd

6шт.

6

125842C1

BRACKET

ASSY, furrowing disk LH, will work for 480675R91

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

7

125843C1

BRACKET

ASSY, furrowing disk RH, will work for 480676R91

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

8

480679R1

WASHER

dirt seal felt

2шт.

Выбрано товаров: 17
