Запчасти Case IH 500 (C-42[A]) - DISK FURROWING ATTACHMENT, 12 IN., ONE PER ROW

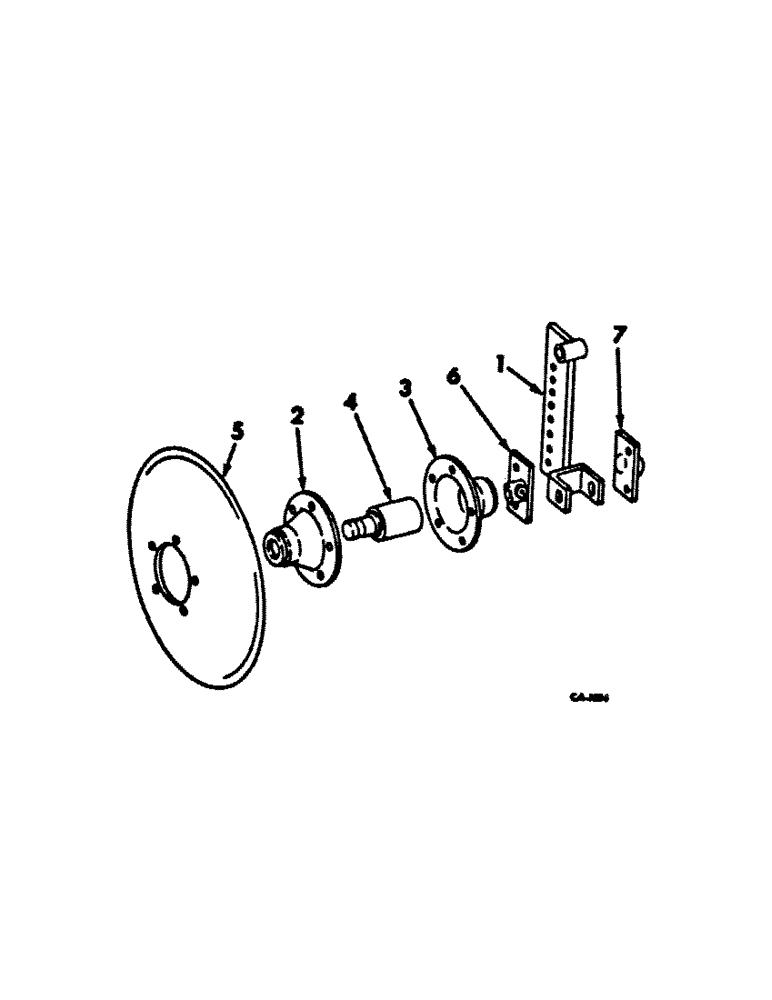

Схема запчастей Case IH 500 - (C-42[A]) - DISK FURROWING ATTACHMENT, 12 IN., ONE PER ROW
2
5
3
7
1
6
4

Артикул

Название

Примечание

Количество

1

(Not used in this application)

1шт.

2

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

HOUSING, bearing inner

1шт.

3

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

bearing outer

1шт.

4

472022R91

BEARING, BALL,18.961 mm ID x 38.1 mm OD x 91.13 mm

BEARING ASSY, disk

1шт.

5

479848R1

DISC

DISK, 12 in.

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 b-hd

5шт.

6

125844C1

BRACKET

ASSY, furrowing disk LH, will work for 472248R91

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

7

125845C1

BRACKET

ASSY, furrowing disk LH, will work for 472249R91

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

Выбрано товаров: 16
