Запчасти Case IH 500 (C-41) - FRONT STEP ATTACHMENT

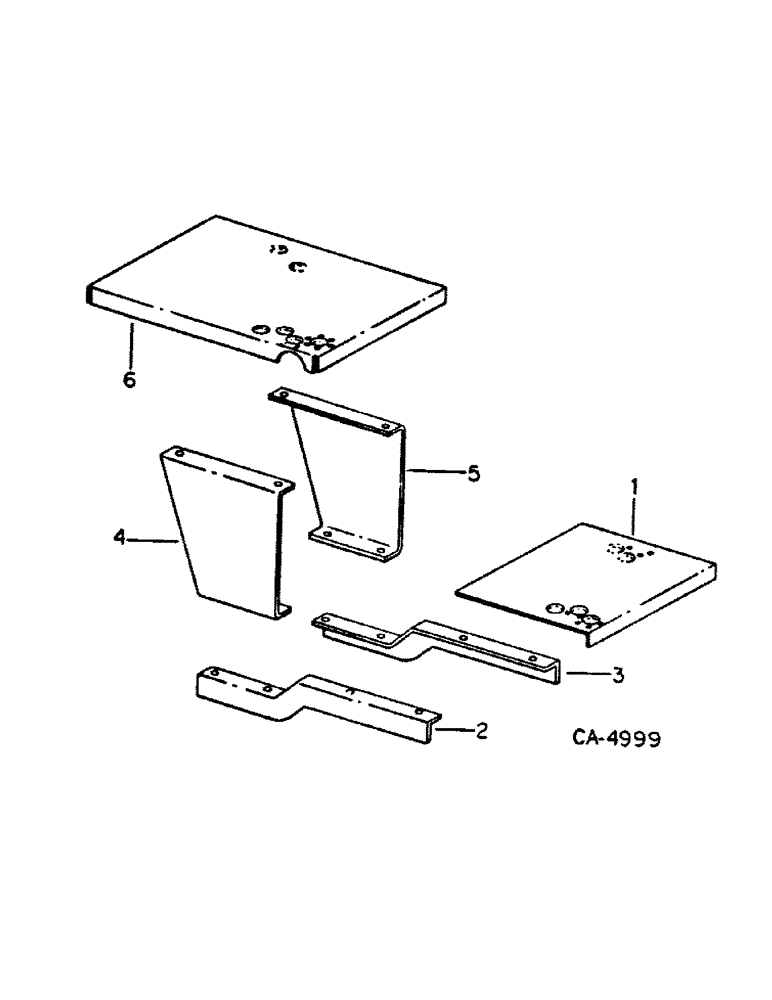

Схема запчастей Case IH 500 - (C-41) - FRONT STEP ATTACHMENT
6
5
3
4
1
2

Артикул

Название

Примечание

Количество

1

547029R1

STEP, lower

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 znd sq-nk crg

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

62157C1

ANGLE, step LH

2шт.

3

62158C1

ANGLE, step RH

2шт.

4

62159C1

SUPPORT

step LH

2шт.

20497R1

BOLT,Hex, 1/2" - 13 x 8 1/2", Gr 5

SCREW, 1/2-13 x 8-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

62160C1

SUPPORT, step RH

2шт.

20497R1

BOLT,Hex, 1/2" - 13 x 8 1/2", Gr 5

SCREW, 1/2-13 x 8-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

62161C1

STEP, upper

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 znd sq-nk crg

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

Выбрано товаров: 18
