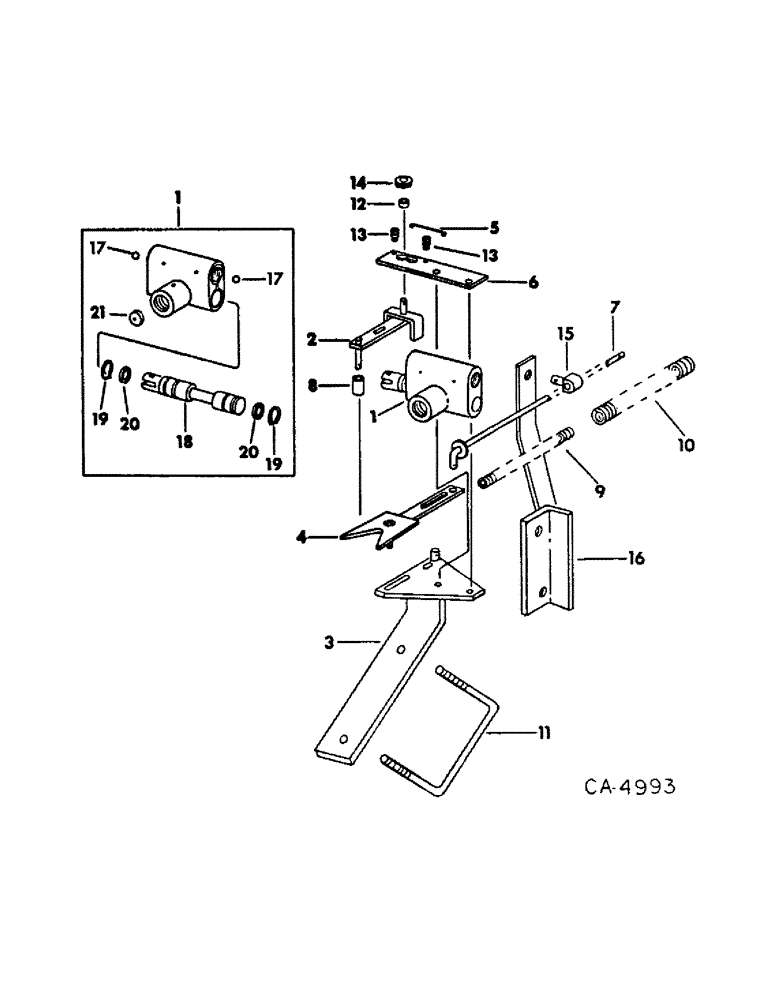

Запчасти Case IH 500 (C-37) - HYDRAULIC MARKER ALTERNATOR, PLANTERS W/MARKER ATTACHMENT & ASSIST WHEELS

1

546861R92

VALVE

ASSY, selector

1шт.

2

546854R1

ARM

ASSY, rocker

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

22922R1

LOCK PIN,1/4" x 3/4", Slotted

Pin, 1/4" x 3/4", Slotted

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

3

62123C1

PLATE ASSY

1шт.

4

546856R2

ARM

ASSY

1шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

4шт.

648002

KNIFE

1/8" x 3/4"

2шт.

5

546851R1

SPRING

1шт.

6

546857R1

SUPPORT

bellcrank

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

SCREW, 5/16-18 x 2-1/4 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

7

546838R1

ROD

ASSY, alternator

1шт.

575807R1

WASHER

13/32 x 1 x 11 ga

1шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

2шт.

8

546847R1

ROLLER

1шт.

9

546836R1

SPRING

override

1шт.

10

546835R3

SPRING

compression

1шт.

11

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5/8-11

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

12

546839R1

BUSHING

1шт.

13

546846R1

STUD

2шт.

14

546850R1

PULLEY

ROLLER

1шт.

15

548084R1

PIVOT

trunnion

1шт.

120395

WASHER

15/32 x 15/16 x 16 ga

2шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

16

62120C1

ARM ASSY, trunnion

1шт.

271715

BOLT,Hex, 5/8" - 11 x 1", Gr 5

SCREW, 5/8-11 x 1 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

663033R1

BALL

9/16 diameter

2шт.

18

SPOOL, selector valve, (not serviced separately) order valve assy, 546861R92

1шт.

NLS

NO LONGER SERVICED

no. 2 x 1-1/2 taper

3шт.

19

549242R1

RING

retaining

2шт.

20

403519R1

O-RING,13.94mm ID x 2.62mm Width

RING, quad

2шт.

21

546844R1

WASHER

restrictor

1шт.
