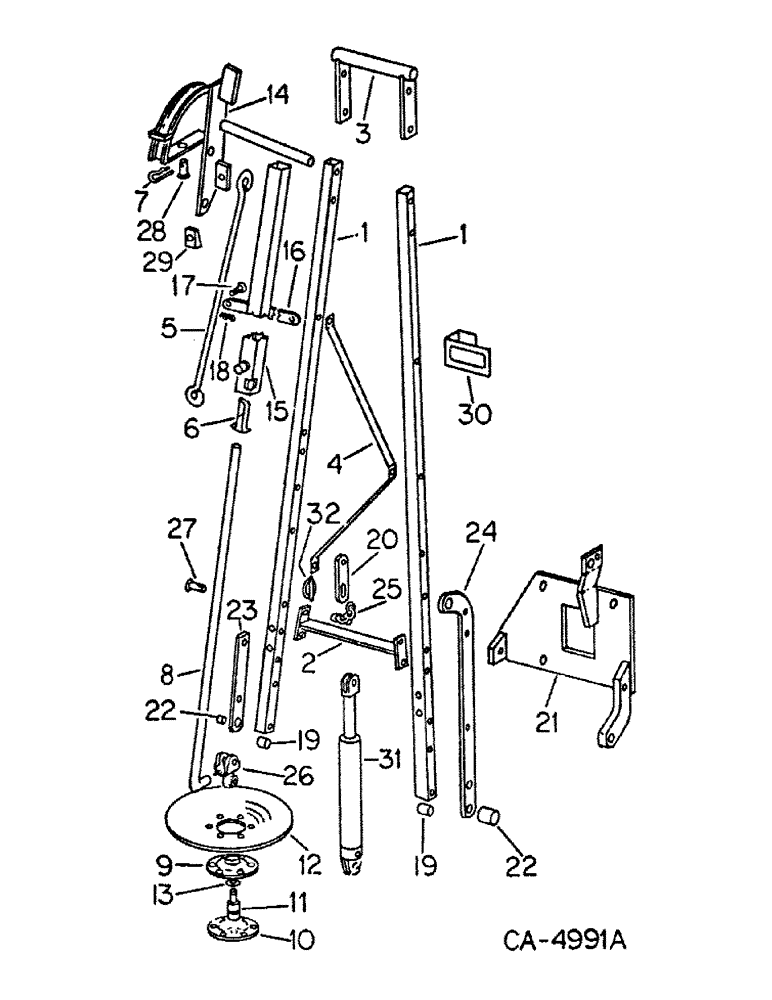

Запчасти Case IH 500 (C-35) - HYDRAULIC MARKER ATTACHMENT

1

489771R3

TUBE, marker, 12 row narrow

4шт.

1

62113C1

TUBE, marker, 12 row wide & 16 row 121.5" Length

4шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap, 10 for 12 row narrow

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 znd hex-hd cap, 12 for 12 row wide and 16 row

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

14шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

14шт.

2

493946R1

BRACKET

ASSY, tube, 12 row narrow

2шт.

2

62115C1

BRACKET ASSY, tube, 12 row wide and 16 row 9.63" Length

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 2-3/4 znd hex-hd cap, 4 for 12 row narrow

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 znd hex-hd cap, 4 for 12 row wide and 16 row

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

489758R2

PIPE

ASSY

2шт.

20181R1

BOLT, 1/2 x 3-1/4 crg type 1

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

489761R1

SUPPORT

BRACE, 12 row narrow

2шт.

4

62114C1

BRACE, 12 row wide & 16 row

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap, 10 for 12 row narrow

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 znd hex-hd cap, 12 for 12 row wide and 16 row

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per screw 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per screw 3/8"-16, G5

1шт.

5

489768R1

ROD

marker brace, 12 row narrow

2шт.

5

489763R1

ROD, marker brace, 12 row wide and 16 row

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

6

489764R1

BLOCK

12 row narrow

2шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 znd sq-hd cup pt set

2шт.

7

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.

8

478033R1

ROD

marker disk clamp, 12 row narrow

2шт.

8

100162C1

TUBE ASSY, marker disk clamp, 12 row wide and 16 row

2шт.

9

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk bearing inner

2шт.

10

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk bearing outer

2шт.

11

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING, ball

2шт.

12

469372R1

DISC,13"

DISK, 13 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

13

480679R1

WASHER

dirt seal felt

2шт.

14

489774R3

PULLEY

ASSY, LH

1шт.

14

489775R3

PULLEY

ASSY, RH

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

6шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

2шт.

15

489784R2

TUBE ASSY, marker right, 12 row narrow

1шт.

15

489786R2

TUBE

ASSY, marker left, 12 row narrow

1шт.

15

100165C1

TUBE ASSY, marker, 12 row wide and 16 row

2шт.

16

489787R1

LINK, 12 row narrow

2шт.

17

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, , 12 row narrow 3/8" x 2"

4шт.

648002

KNIFE

1/8" x 3/4"

2шт.

18

586591R1

COTTER PIN

PIN, quick attachable cot., 12 row narrow

4шт.

19

495137R1

SPACER

BUSHING, tube, 4 for 12 row narrow

1шт.

19

202035C2

TUBE,0.325" ID, 0.875" OD, 42.93" Length

BUSHING, tube, 8 for 12 row wide and 16 row

1шт.

20

548076R1

LINK

BRACKET, outer end pivot

2шт.

21341R1

HEADED PIN,1/2" x 1"

PIN, 1/2 x 1 znd std-hd

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

21

62110C1

BRACKET ASSY, marker RH

1шт.

21

62104C1

BRACKET ASSY, marker LH and transport, illustrated with transport wheel attachment

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

22

128809C1

BUSHING

marker pivot

4шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

23

548077R1

ARM

marker pivot

2шт.

24

548078R2

ARM

marker lift LH

1шт.

24

548079R2

ARM

marker lift RH

1шт.

19077R1

CARRIAGE BOLT,#3, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 no. 3 repair plow

2шт.

25

489767R92

CHAIN (AG)

CHAIN, actuator, 12 row narrow

2шт.

25

62103C1

CHAIN, actuator, 12 row wide and 16 row

2шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 znd hex-hd mach

2шт.

20600R1

WASHER

9/32 x 3/4 x 11 ga C-Z

2шт.

480891R1

NUT

1/4-20 znp hex. flange lock

2шт.

26

478032R1

CLAMP

axle

2шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

27

23172R1

PIN

1/2 x 3-3/4 std-hd

2шт.

28

22090R1

HEADED PIN

PIN, 3/4 x 7/8 C-Z std-hd

2шт.

29

493959R1

BLOCK

STOP, marker frame

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

30

113118C91

BRACKET w/PRODUCT GRAPHIC, 113116C1, marker warning

2шт.

413-432

SCREW, 1/4-20 x 2 znd hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

31

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 145622C91, for components see list of parts under details of hyd cylinder

2шт.

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 x 2-7/16 znd std-hd

4шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

4шт.

32

479696R91

AXLE PIN

PIN, klik

2шт.

128529C1

TIE STRAP

2шт.
