Запчасти Case IH 500 (C-34) - HYDRAULIC CYLINDER, 2 X 8 IN. DOUBLE ACTING

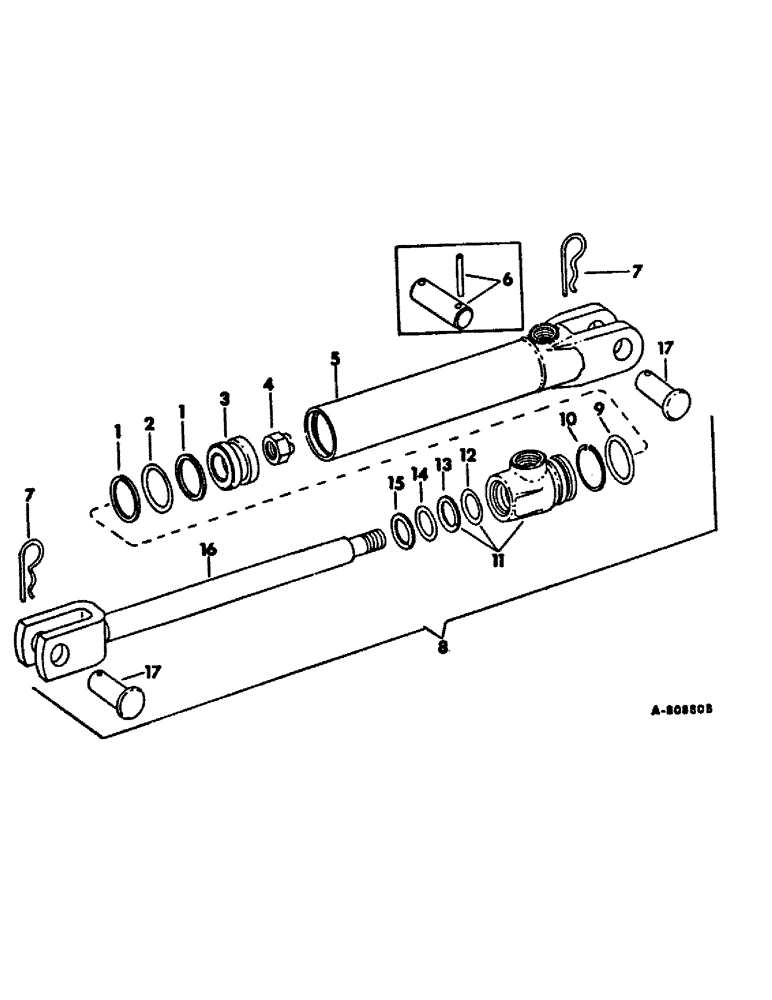

Схема запчастей Case IH 500 - (C-34) - HYDRAULIC CYLINDER, 2 X 8 IN. DOUBLE ACTING
1
16
1
17
7
17
6
4
7
9
2
11
14
10
8
13
5
12
3
15

Артикул

Название

Примечание

Количество

1

WASHER, piston head backup, order kit, 386685R91 (NSS)

2шт.

2

O-RING, 1-5/8 x 2 x 3/16, piston head, order kit, 386685R91 (NSS)

1шт.

3

381849R1

HEAD

piston

1шт.

4

385020R1

NUT

3/4-16 hex. lock

1шт.

5

TUBE ASSY, cylinder, order cylinder assy (NSS)

1шт.

6

(Not used in this application)

1шт.

7

520175R1

CLIP

PIN, quick attachable cotter

2шт.

8

381833R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. double acting hydraulic

1шт.

9

O-RING, 1-3/4 x 2 x 1/8, rod end head, order kit, 386685R91 (NSS)

1шт.

10

461180R1

RETAINER

RING, retaining

1шт.

11

381803R11

HEAD

ASSY, rod end

1шт.

12

RING, cylinder head, order kit, 386685R91 (NSS)

1шт.

13

WASHER, cylinder head back-up, order kit, 386685R91 (NSS)

1шт.

14

SEAL, piston rod dust, order kit, 386685R91 (NSS)

1шт.

15

RETAINER, cylinder head seal, order kit, 386685R91 (NSS)

1шт.

16

73763C1

ROD ASSY.

ROD ASSY, piston

1шт.

17

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 in. x 2-3/4 headed

2шт.

386685R91

KIT

KIT, hydraulic cylinder service, consists of ref nos 1, 2, 9, 12, 13, 14 and 15

1шт.

Выбрано товаров: 18
