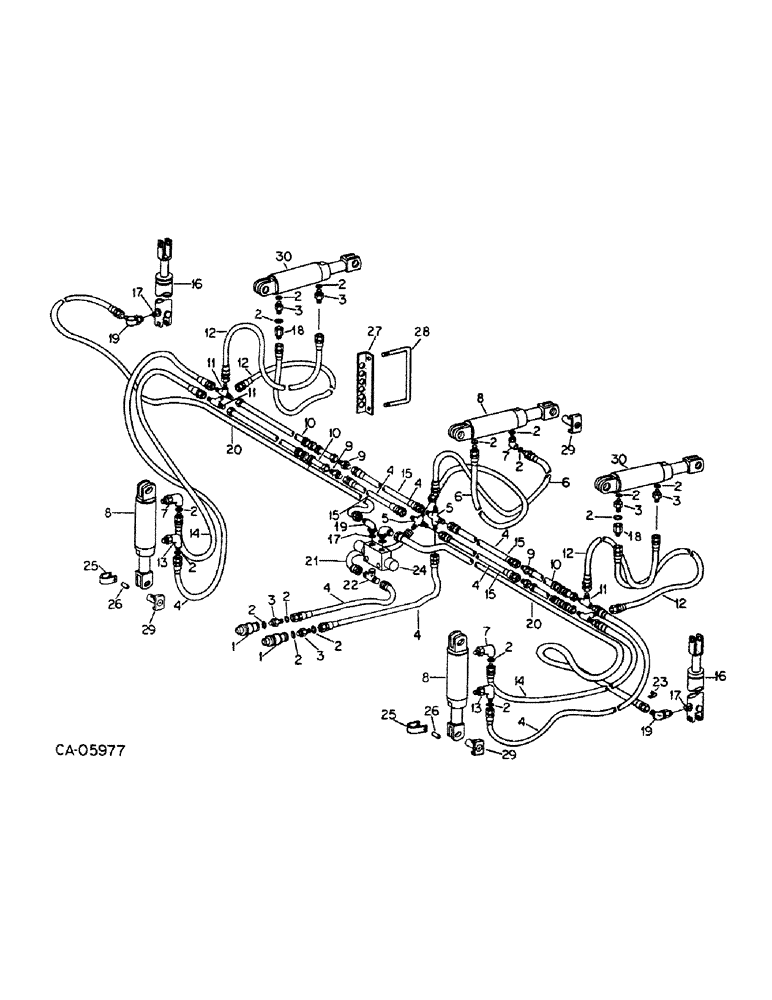

Запчасти Case IH 500 (C-30) - HYDR. CYLINDERS, HOSES & CONNECTIONS, PLANTERS W/ELECTRIC MARKER, ASSIST WHEELS & TRANSPORT WHEELS

1

544787R91

COUPLING, BREAK AWAY

COUPLING ASSY, self-sealing male

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

18шт.

3

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel

6шт.

4

113323C1

HOSE ASSY, 1/2 ID x 56 in. hydraulic, 4 for 12 row narrow, 8 for 12 row wide and 16 row

1шт.

5

9403178

CROSS, 7/8-14 C-Z 37 deg hyd flared tube

2шт.

6

468879R1

HOSE ASSY, 1/2 ID x 24 in. hydraulic

2шт.

7

371357R91

ELBOW

7/8-14 90 deg adjustable

3шт.

8

73660C92

CYLINDER ASSY.

CYLINDER ASSY, 3 x 8 in. double acting hydraulic, replaces 381854R93, for components see list of parts under details of hyd cylinder

3шт.

23289R1

PIN, 1 x 2.750 hd type 1 1" x 2 3/4"

3шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

3шт.

9

9403217

HYD CONNECTOR,7/8"-14, 37 Degree

UNION, 7/8-14 C-Z 37 deg flared tube

4шт.

10

58024C1

TUBE w/THREE GROMMETS ASSY, assist wheels 96 in., 12 row narrow 0.625" OD, 96" Length

4шт.

10

62118C1

TUBE w/THREE GROMMETS ASSY, assist wheels 134 in., 12 row wide and 16 row 0.625" OD, 134" Length

4шт.

11

9402983

TEE,7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd flared tube three way

4шт.

11

166969H1

HOSE ASSY, 1/2 ID x 31 in. hydraulic serial no. & below

4шт.

12

125816C1

HOSE ASSY, 1/2 ID x 35 in. hydraulic serail no. & above

4шт.

13

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj STR THD 90 deg

2шт.

14

541629R1

HOSE

ASSY, 1/2 ID x 46 in. hydraulic

2шт.

15

474977R91

HOSE ASSY, 1/2 ID x 34 in. hydraulic, 12 row narrow

4шт.

16

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 145622C91, for components see list of parts under details of hyd cylinder

2шт.

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 in. x 2-7/16 znd std-hd

4шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

4шт.

17

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

18

493960R91

VALVE

ASSY, drop retarding

2шт.

19

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 C-Z deg hyd flared tube 90 deg swivel

3шт.

20

133933C1

HOSE

252 in.

2шт.

21

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

75 in.

1шт.

22

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

7/8-14 37 deg hyd flared tube adj STR THD 90 deg

1шт.

23

493962R2

CLAMP, hyd hose

3шт.

24

149988C92

VALVE

ASSY, marker solenoid, replaces 125532C91 by also ordering two cables, 1252639C1, for components see list of parts under details of marker solenoid valve

1шт.

25

100159C1

STOP, hydraulic cylinder, 1 in. wide

4шт.

25

100160C1

STOP, hydraulic cylinder, 1-1/2 in. wide

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

26

113068C1

SPACER

cylinder stop

6шт.

27

62167C1

SUPPORT, hydraulic tubing

2шт.

28

541659R1

BOLT,3/8" - 16 x 5 7/8"

U-BOLT, 3/8-16 tubing support

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

29

128723C3

PIN ASSY.

PIN ASSY, cylinder

3шт.

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 STR drive lub

3шт.

30

381833R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. double acting hydraulic, for components see list of parts under details of hyd cylinder

2шт.
