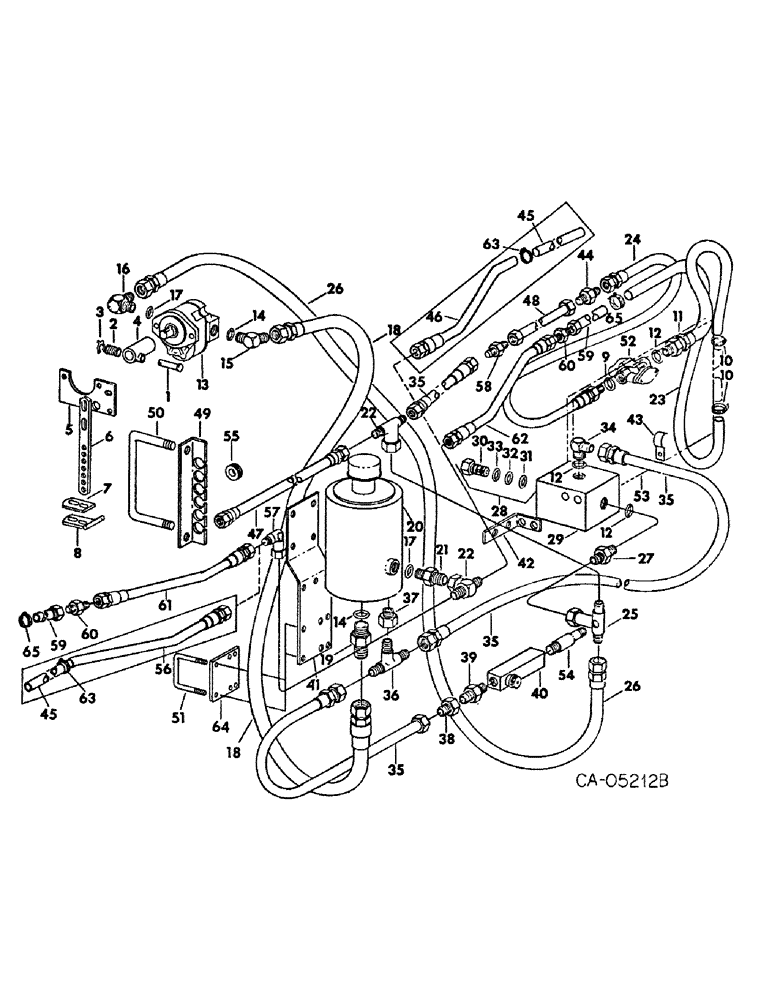

Запчасти Case IH 500 (C-25) - HYDRAULIC BLOWER DRIVE

1

631976R91

PIN

ASSY, lock, used only with couplings, 60582C1 & 140584C1

1шт.

2

455347R1

VALVE SPRING

SPRING, locking pin, for pin, 631976R91

1шт.

3

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

x, for pin, 631976R91

1шт.

4

60582C1

COUPLING ASSY, for use w/pump, 60584C91

1шт.

4

140584C1

COUPLING

ASSY, order 1279355C91, for use w/pump, 142482C91

1шт.

4

149504C92

COUPLING

ASSY, dual modules, twist type, order coupling, 1279355C91, composed of

1шт.

1261263C1

COLLAR

1шт.

1261262C1

CAP WASHER

COVER, collar

1шт.

HUB, (NSS)

1шт.

1261261C1

PIN

1шт.

1268289C1

PRODUCT GRAPHIC

caution

1шт.

383878R1

SNAP RING,1.25, Int, #125

RING, 1.388 int ret

1шт.

4

1279355C91

COUPLING

ASSY, dual modules, push pull type, replaces 140584C1 and 149504C92, composed of

1шт.

21505R1

BALL,1/2" Dia, Stainless

1/2 grade ST100 metal

3шт.

1279357C1

COLLAR

1шт.

HUB, (NSS)

1шт.

279762R1

SNAP RING,#168, Ext

RING, 1.560 ext ret

1шт.

1279356C1

SPRING

1шт.

180141

SPRING,Hex, 7/16" - 14 x 5/8", Gr 5

SCREW, 7/16-14 x 5/8 znd hex-hd cap

1шт.

180146

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, 7/16-14 x 1-1/8 znd hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

60583C1

WASHER

15/32 x 1-3/16 x 3/16

1шт.

5

56773C1

PLATE

pump mounting

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 3/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

6

56774C1

BRACKET

adjusting

1шт.

M906

HEADED PIN,7/16" x 1 1/8"

PIN, 7/16 x 1-1/8 std-hd

2шт.

NLS

NO LONGER SERVICED

.469 x .922 x .051 znd

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

7

56775C91

ANGLE

STRAP ASSY

1шт.

8

56776C1

BAR

STRAP

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2-13 x 4-1/2 znd hex-hd cap

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074 C-Z

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

10

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

4шт.

11

549519R1

HYDRAULIC HOSE,0.50" ID x 38.00", SAE 30R2 Type 3 or SAE 100R3

Top Return, Hydraulic Motor to Oil Cooler 0.50" ID x 38.00", SAE 30R2 Type 3 or SAE 100R3

2шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

4шт.

13

142482C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, replaces 60584C91, for components see list of parts under details of hydraulic pump

1шт.

14

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD tube

2шт.

15

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1-5/16-12 C-Z 37 deg hyd flared tube adj STR THD 90 deg

1шт.

16

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube 90 deg

1шт.

17

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

2шт.

18

58159C1

HOSE

50 in. suction

1шт.

19

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

UNION, 1-5/16-12 C-Z 37 deg hyd flared tube short swivel

1шт.

20

156395C91

RESERVOIR

ASSY, hydraulic oil, 3 gallon, for components see list of parts under details of hydraulic oil reservoir

1шт.

21

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, 1-1/16-12 C-Z 37 deg hyd flared tube short swivel

1шт.

22

549529R1

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Fem Sw Br

special 1-1/16 x 7/8 x 7/8

2шт.

23

549957R1

HYDRAULIC HOSE,0.5" ID x 176.00", SAE 100R6, SAE J517

- 83.00" Required, Return, To Oil Cooler 0.5" ID x 176.00", SAE 100R6, SAE J517

1шт.

23

384582R1

HOSE, 54 in. return, to oil cooler

1шт.

24

347163R91

HOSE ASSY, 1/2 ID x 83 in. pressure, to left hydraulic motor

1шт.

24

62164C1

HOSE ASSY, 1/2 ID x 56 in. pressure, to right hydraulic motor

1шт.

25

539791R1

TEE

special

1шт.

26

58940C1

HOSE,19.05mm ID x 1219.2mm L

- Pressure 0.75" ID x 48.00"

1шт.

27

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

UNION, 1-1/16 x 7/8 reducer

1шт.

28

549528R93

VALVE

ASSY, relief, includes ref nos 29 through 33

1шт.

29

403187R1

BLOCK

relief valve

1шт.

30

396729R93

VALVE

ASSY, 2300 PSI pilot relief

1шт.

31

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

32

378985R2

BACK-UP RING

relief valve

1шт.

33

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

34

9411106

ELBOW

7/8-14 C-Z 37 deg hyd flared tube adj STR THD 45 deg

1шт.

35

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

ASSY, 1/2 x 18-1/4 in. hydraulic

3шт.

36

9403022

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

1/2-14 x 7/8-14 C-Z 37 deg hyd flared tube two way

1шт.

37

444323

BUSHING

REDUCER, 3/8 x 1/2

1шт.

38

9402749

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, Fem Pipe

CONNECTOR, 1/2-14 37 deg hyd flared tube internal pipe thread

1шт.

39

192467H1

NIPPLE, 1/2 to 1/4 male pipe reducing

1шт.

40

539794R91

VALVE

ASSY, control

1шт.

41

62165C1

PLATE, tank mounting offset

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

42

58162C2

BRACKET, valve mounting

1шт.

NLS

NO LONGER SERVICED

SCREW, 7/16-14 x 2-3/4 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

2шт.

43

468256R1

CLAMP

hose

8шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

44

478754R1

ADAPTER

REDUCER, Serial Range: 5/8-1/2

2шт.

45

62166C1

TUBE, return line, 12 row wide and 16 row, serial no. 7430 & below 0.625" OD, 72" Length

2шт.

45

100166C1

TUBE, return line, 12 row narrow, serial no. 7430 & below

2шт.

46

62168C1

HOSE ASSY, 25 in. return RH, serial no. 7430 & below

1шт.

47

59095C1

HOSE

ASSY, 1/2 ID x 43 in. hydraulic

1шт.

48

58024C1

TUBE, pressure line, 12 row wide and 16 row 0.625" OD, 96" Length

2шт.

48

100167C1

TUBE, pressure line, 12 row narrow 0.625" Diameter, 66" Length

2шт.

49

62167C1

SUPPORT, hydraulic tubing

4шт.

50

541659R1

BOLT,3/8" - 16 x 5 7/8"

U-BOLT, 3/8-16

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

51

1250813C1

U-BOLT

5/8-11, 7 x 7, 12 and 16 row

2шт.

51

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5/8-11, 5 x 7, 12 row narrow

2шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x 11 ga znd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

52

MOTOR ASSY, hydraulic blower, refer to seed handling blower unit

1шт.

53

COOLER, oil, refer to seed delivery and manifold assy unit

1шт.

54

443979

HYD CONNECTOR

NIPPLE, 1/4-18 znp auto. pipe

1шт.

55

117966

GROMMET,5/8" ID x 1 11/64" x .188"

5/8 rubber

8шт.

56

62169C1

HOSE ASSY, 45 in. return LH, serial no. 7430 & below

1шт.

57

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1-5/8-12 C-Z 37 deg hyd flared tube adj STR THD 90 deg

1шт.

58

9403217

HYD CONNECTOR,7/8"-14, 37 Degree

UNION, 7/8-14 C-Z 37 deg hyd flared tube male

2шт.

59

125791C1

TUBE w/NUT & SLEEVE, return line, 12 row wide and 16 row, serial no. 7431 & above 0.625" OD, 1830 mm Length

2шт.

59

125790C1

TUBE w/NUT & SLEEVE, return line, 12 row narrow, serial no. 7431 & above 1065 mm Length

2шт.

60

9403217

HYD CONNECTOR,7/8"-14, 37 Degree

UNION, 7/8-14 C-Z 37 deg hyd flared tube male, serial no. 7431 & above

1шт.

61

59095C1

HOSE

ASSY, 1/2 ID x 43 in. hydraulic, serial no. 7431 & above

1шт.

62

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

ASSY, 1/2 ID x 18-1/4 in. hyd, serial no. 7431 & above

1шт.

63

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Used only with hoses, 62168C1 & 62169C1 #06, .44/.78 Type F Worm

2шт.

64

128638C1

BAR, reinforcement

1шт.

65

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 hose

1шт.
