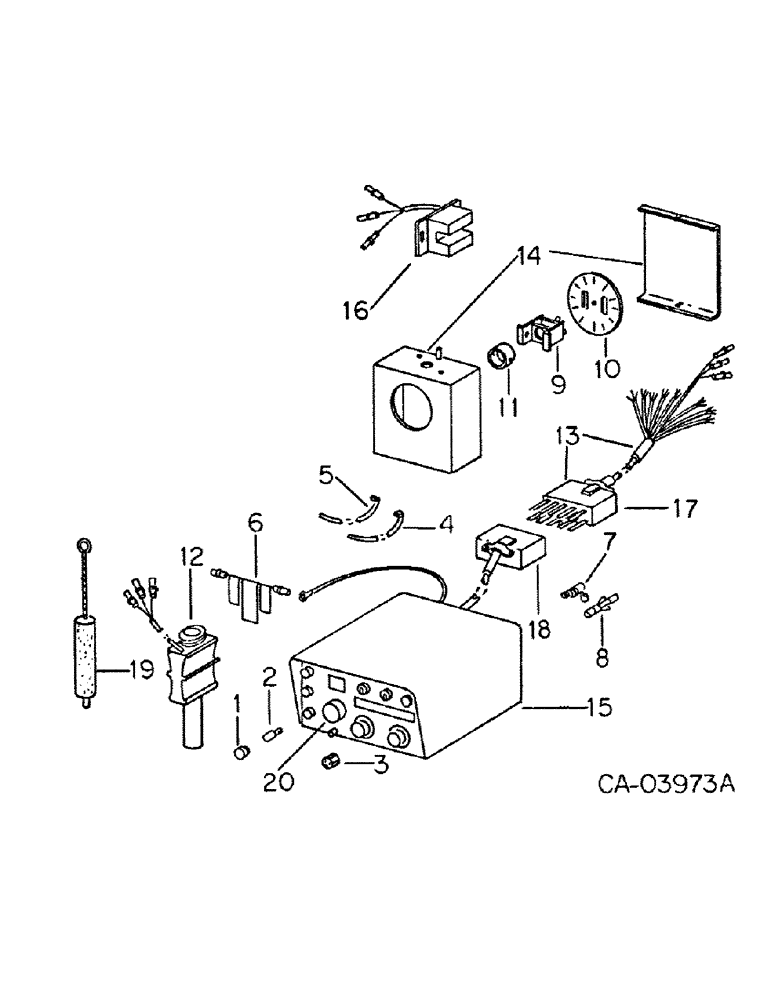

Запчасти Case IH 500 (C-23) - SEED FLOW MONITOR AND CONNECTIONS
№
Артикул
Название
Примечание
Количество
1
58499C1
LENS
amber, 1 used per console
1шт.
2
58554C1
BULB,C2F, #1892, 14V
LAMP, 1 used per console
1шт.
3
106652
FUSE,3 Amp, Type 3AG
3 ampere, 1 used per console
1шт.
4
58555C1
FASTENER
TIE WRAP, 7 in.
1шт.
5
306132C1
CABLE TIE,14.5" L
TIE WRAP, 14 in., replaces 58556C1
1шт.
6
58557C1
ELECTRICAL WIRE
WIRE, shortening
1шт.
7
58558C1
SUPPRESSOR
spark plug
1шт.
8
58559C1
SUPPRESSOR
distributor
1шт.
9
58603C1
BRACKET
disk
1шт.
10
DISK, sensor, 6 slot, serviced only as a machine att, 1 per seed hopper
1шт.
10
DISK, sensor, 8 slot, serviced only as a machine att, 1 per seed hopper
1шт.
10
58604C1
DISC
DISK, sensor, 12 slot, 1 per seed hopper
1шт.
10
60655C1
DISC
DISK, sensor, 18 slot, 1 per seed hopper
1шт.
11
59065C1
COLLAR
1шт.
21242R1
HEADED PIN
PIN, 1/4 x 1.75 znd std-hd
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
12
59363C1
SENSOR
SEED SENSOR, used with digital cyclomitor monitor, 1 per seed tube
1шт.
12
61729C1
SENSOR
SEED SENSOR, used with seed flow monitor, 1 per seed tube
1шт.
13
57685C91
HARNESS
planter, 6 row, 2 for 12 row
1шт.
13
57686C91
HARNESS
planter, 8 row, 2 for 16 row
1шт.
14
DRUM w/SLOT WHEEL ASSY, pickup, serviced only as a machine att
1шт.
133925C1
PRODUCT GRAPHIC, console panel
1шт.
15
79299C1
CONSOLE
seed flow monitor, 1 used per seed hopper
1шт.
15
79298C1
REMAN-ELECT MONITOR
CONSOLE, digital cyclomitor monitor, 1 used per seed hopper
1шт.
15
1935001C1
CORE-MONITOR
Return Number
1шт.
15
126420A1R
REMAN-ELECT MONITOR
Remanufactured Monitor - Seed Flow II
1шт.
15
126420A1C
CORE-MONITOR
Return Number, Monitor
1шт.
133924C1
DECAL
PORDUCT GRAPHIC, console panel
1шт.
16
128815C1
RELAY
sensor
1шт.
17
128813C1
CONNECTOR,ELECTRIC
PLUG, male connector socket
1шт.
18
128814C1
SOCKET
female connector
1шт.
19
128817C1
BRUSH, COMMUTATOR
BRUSH, seed sensor cleaning
1шт.
20
128816C1
BUZZER
solalert
1шт.
Выбрано товаров: 33
