Запчасти Case IH 500 (C-19) - SEED HANDLING TUBES, MANIFOLD AND DRUM

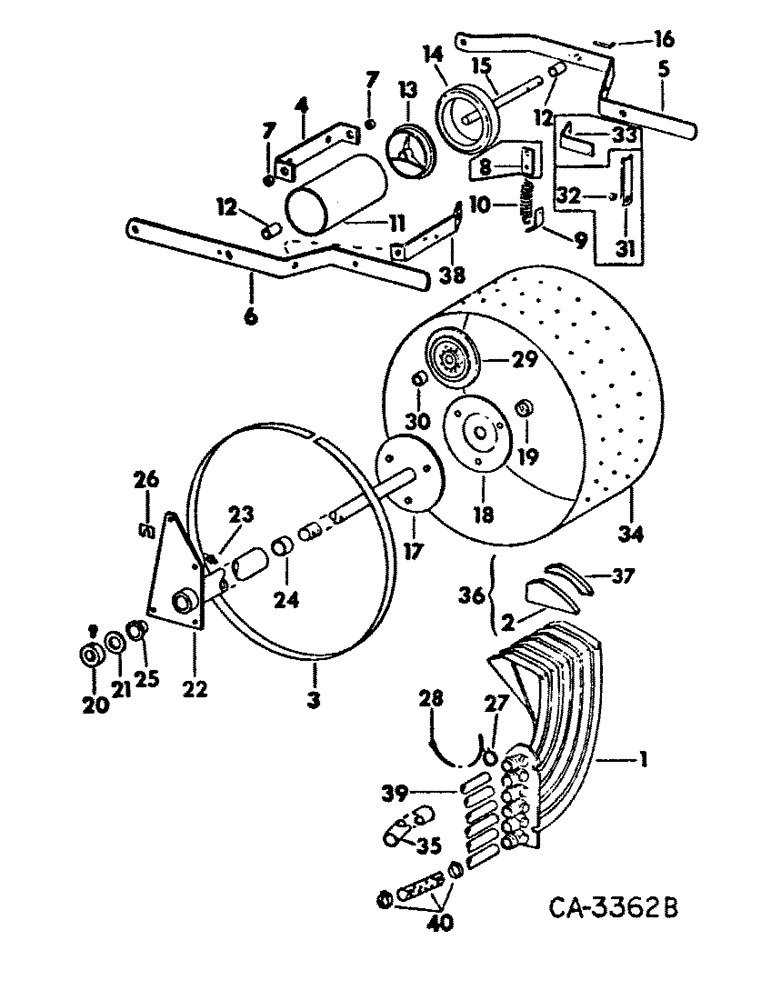

Схема запчастей Case IH 500 - (C-19) - SEED HANDLING TUBES, MANIFOLD AND DRUM
22
31
19
17
13
1
12
25
8
35
24
14
26
23
7
6
18
38
30
15
32
21
28
16
34
7
36
39
37
10
40
33
20
11
29
5
2
4
3
27
12
9

Артикул

Название

Примечание

Количество

1

100157C1

TUBE ASSY.

MANIFOLD ASSY, seed discharge, 2 for 12 row

1шт.

58776C1

GAUGE

manifold

1шт.

113090C1

SEALANT

SEALANT, 3 ounce tube RTV silicone, used to caulk around the manifold mounting flange to prevent air leakage

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

8шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

1

100168C1

TUBE ASSY.

MANIFOLD ASSY, seed discharge, 2 for 16 row

1шт.

58776C1

GAUGE

manifold

1шт.

113090C1

SEALANT

SEALANT, 3 ounce tube RTV silicone, used to caulk around the manifold mounting flange to prevent air leakage

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

12шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

2

113255C1

PLUG

manifold, 4 for 12 row

1шт.

3

56539C2

BELT

seed drum, for 24 hole drum, for use when planting seed corn w/butterfly tips

1шт.

3

63280C1

PACKAGE

seed drum belt service, for 2 rows, used to aid in the planting of long slender corn seeds or seeds with, butterfly tips, for 36 hole drum, consists of (1) belt 113489C1 (NSS), (1) fastener 113490C1 (NSS), (1) instructions (NSS)

1шт.

4

546332R1

SUPPORT

wheel cutoff

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

4шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

4шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

5

100177C1

ARM

wheel cutoff front

2шт.

6

100177C1

ARM

wheel cutoff rear, 2 for 12 row

1шт.

6

100176C1

DEFLECTOR

ARM, wheel cutoff rear, 2 for 16 row

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

548363R1

BUSHING

pivot

4шт.

8

(Not used in this application)

1шт.

9

546336R1

BRACKET, spring

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

10

626206R1

SPRING

extension

2шт.

11

546337R1

SLEEVE

cutoff wheel long, 2 for 12 row

1шт.

11

548809R1

SLEEVE

cutoff wheel, 2 for 16 row

1шт.

12

(Not used in this application)

1шт.

13

539670R1

RIM

cutoff wheel

4шт.

14

546341R1

TYRE/TIRE

TIRE, cutoff wheel, 1 per row

1шт.

15

548364R1

AXLE

2 for 12 row

1шт.

15

548810R1

AXLE

2 for 16 row

1шт.

22258R1

WASHER

21/32 x 1 x 22 ga C-Z, (as required)

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

16

548365R1

PIN

axle retainer

2шт.

17

56039C1

SHAFT

ASSY, drum, 2 for 12 row

1шт.

17

56042C1

SHAFT

ASSY, drum, 2 for 16 row

1шт.

141246

PIN

3/8 x 1-1/4 dowel

6шт.

18

141509C1

CAP

drum end

2шт.

19

23836R1

WASHER

.656 x 1.375 x .105, replaces cap, 547359R1

2шт.

271715

BOLT,Hex, 5/8" - 11 x 1", Gr 5

SCREW, 5/8-11 x 1 znd hex-hd cap

2шт.

20

546378R1

SPACER

drive

2шт.

21

548480R1

THRUST WASHER

wear

6шт.

21891R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 znd std-hd

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

22

546380R1

PIPE

ASSY, drum shaft, 2 for 12 row

1шт.

22

548814R1

PIPE

ASSY, drum shaft, 2 for 16 row

1шт.

589713R1

SHIM

.036 (as required)

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 znd hex-hd mach

4шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 znd hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

23

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF2 STR lubrication

2шт.

24

609775R1

BUSHING

2шт.

25

548453R1

BUSHING,1.002" ID x 1.5" OD x 1.125"

drum shaft

2шт.

26

589713R1

SHIM

.036

6шт.

26

935915R1

SHIM,33.02mm OD x 0.38mm Thk

.015

6шт.

27

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, seed tube hose, planter end, one per row

1шт.

27

995218R1

CLAMP

seed tube hose, manifold end, one per row

1шт.

28

306132C1

CABLE TIE,14.5" L

STRAP, tube holding

1шт.

29

548821R1

BEARING

WHEEL w/BEARING, drum support

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

30

548822R1

SPACER

wheel

2шт.

31

(Not used in this application)

1шт.

32

(Not used in this application)

1шт.

33

(Not used in this application)

1шт.

34

DRUM, seed, refer to seed drum unit

1шт.

35

547608R1

PLASTIC-RUBBER TUBE

TUBE, reinforcing, 1 per row

1шт.

36

(Not used in this application)

1шт.

37

(Not used in this application)

1шт.

38

100180C1

STRAP

cut-off wheel arm

2шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

4шт.

120376

NUT,5/16"-18, G5

4шт.

39

546541R2

TUBE

100 foot coil

1шт.

REF: #39 - 546541R2 TUBE,100 FOOT COIL WILL NO LONGER BE PROVIDED. NEW TUBE 130979A2 ( 195 INCHES LONG ) WILL FIT ALL APPLICATIONS.

1шт.

39

58238C2

TUBE

1шт.

TUBE, 58 inch coil, for tube lengths 58 inch & under, for seed delivery tube use the following lengths, 12 row narrow planter, row 1 use 130 in., row 2 use 102 in., row 3 use 69 in., row 4 use 69 in., row 5 use 88 in., row 6 use 119 in., row 7 use 130 in., row 8 use 102 in., row 9 use 69 in., row 10 use 69 in., row 11 use 88 in., row 12 use 119 in., 12 row wide planter, row 1 use 156 in., row 2 use 112 in., row 3 use 69 in., row 4 use 69 in., row 5 use 112 in., row 6 use 156 in., row 7 use 156 in., row 8 us

1шт.

40

63812C91

PACKAGE

air diffuser, 6 rows, consists of (12) clamp (NSS), (6) diffuser (NSS), (1) instructions (NSS)

1шт.

72902C1

TUBE

PACKAGE, beet seed tube, 2 rows

1шт.
