Запчасти Case IH 500 (C-17) - SEED DELIVERY, OIL COOLER AND CONNECTIONS

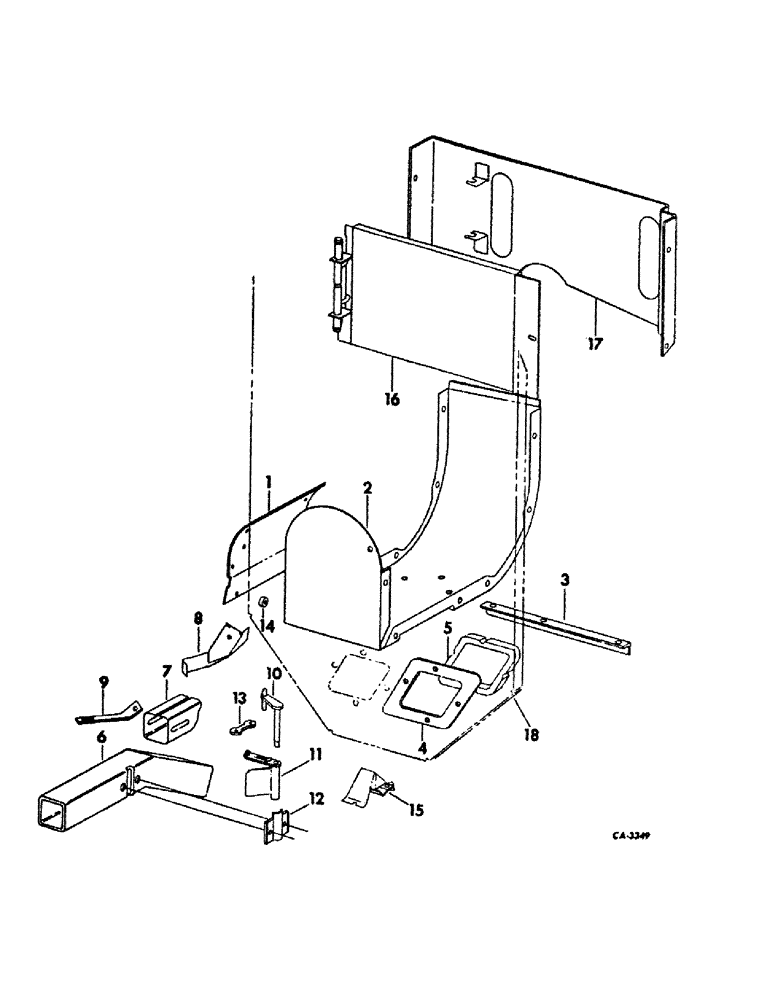

Схема запчастей Case IH 500 - (C-17) - SEED DELIVERY, OIL COOLER AND CONNECTIONS
1
17
4
12
9
6
14
2
18
13
8
3
15
11
7
10
5
16

Артикул

Название

Примечание

Количество

1

100172C1

DEFLECTOR

air, 2 for 12 row

1шт.

1

100171C1

DEFLECTOR

air, 2 for 16 row

1шт.

2

546317R1

DUCT

air, 2 for 12 row

1шт.

2

57569C1

DUCT

air, 2 for 16 row

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

10-24 x 1/2 znp slt-hex-hd mach, 20 for duct, 57569C1,Course threads

1шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 znd ext-tooth lock, 1 per screw

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1 per screw #10-24

1шт.

3

545768R1

ANGLE, plate support

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

4

546352R1

PLATE

seal tightener

2шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

5

546351R1

SEAL

seed chute

2шт.

6

57565C1

CHUTE (DOWNWARD)

CHUTE, seed delivery

2шт.

7

57566C1

EXTENSION

seed chute

2шт.

8

57611C1

BAR

ASSY, seed leveler

2шт.

9

545412R1

RETAINER, seed chute

2шт.

19416R1

BOLT

5/16 x 1 CDP sq-nk crg

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

10

546353R1

ARM

shut-off pivot

2шт.

437157R1

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

2шт.

11

546354R2

FLAP

GATE, cut-off

2шт.

12

546355R1

CAP

cut-off gate

2шт.

13

546356R2

STRAP

holding

2шт.

14

57729C1

SPACER

air duct manifold, 4 for 12 row

1шт.

9415665

SCREW, 10-24 x 7/8 SLT hex-hd mach

4шт.

15

57392C1

DEFLECTOR

DIRECTOR ASSY, air flow, 2 for 16 row

1шт.

16

533233R1

OIL RESERVOIR

COOLER ASSY, oil, 2 for 12 row, order oil cooler, 68437C1 and bracket, 125479C1

1шт.

16

387323R91

COOLER ASSY, oil, 2 for 16 row, order oil cooler, 68437C1 and bracket, 125479C1

1шт.

16

68437C1

COOLER

ASSY, oil

2шт.

17

56770C2

BRACKET, oil cooler mounting, 2 for 12 row, used only w/oil cooler, 533233R1

1шт.

17

56772C2

BRACKET, oil cooler mounting, 2 for 16 row, used only w/oil cooler, 387323R91

1шт.

17

125749C1

BRACKET

oil cooler mounting, used only with oil cooler, 68437C1

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap, 2 for 12 row, 4 for 16 row

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per screw 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per screw 3/8"-16, G5

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

18

SHEET, fan housing rear, refer to seed handling blower unit

1шт.

Выбрано товаров: 42
