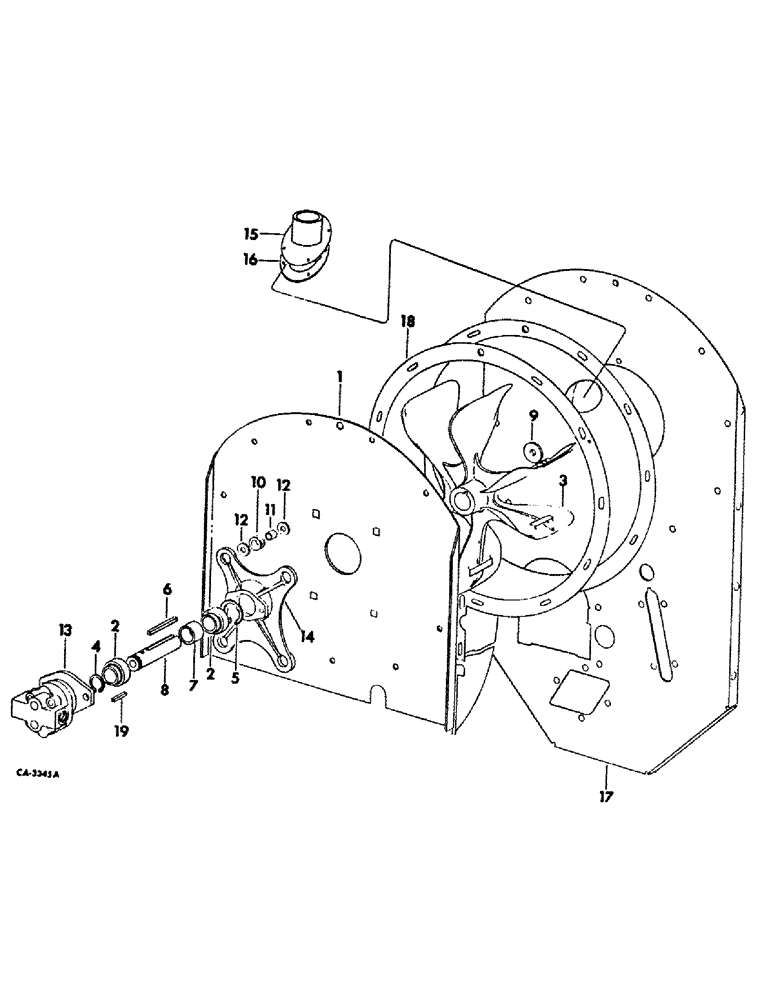

Запчасти Case IH 500 (C-15) - SEED HANDLING BLOWER

1

546318R2

SHEET

fan housing front

2шт.

2

566632R92

BALL BEARING,44.04mm ID x 62mm OD x 18mm W

BEARING, ball

4шт.

3

57570C1

WHEEL

blower

2шт.

187870

SCREW, 3/8-16 x 1-1/2 znd sq-hd cup-pt set

4шт.

4

21745R1

SNAP RING,#118, Ext

Ring, Snap, #118, Ext

2шт.

5

289357R1

RING

retaining

2шт.

6

479370R1

KEY,1/4" Sq x 2", Par

2шт.

7

549534R1

SPACER

bearing

2шт.

8

549535R2

SHAFT

rotor, serial no. 10208 and below

1шт.

8

140450C1

SHAFT

rotor, w/internal spline, serial no. 10209 and above

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

132794H1

WASHER

2шт.

10

54770H

GROMMET

ISOMOUNT

8шт.

11

549517R1

BUSHING

isomount

8шт.

12

55281C1

WASHER

.516 x 1-1/4 x .120

16шт.

13

549530R91

NO LONGER SERVICED

MOTOR ASSY, hydraulic, only serviceable items are

1шт.

13

1272625C91R

REMAN-HYD MOTOR

500 INTERNATIONAL HARVESTER CYCLO FLEX FRAME PLANTER, MOTOR ASSY, hydraulic (1/77-12/81), Reman for New PN 549530R91

1шт.

13

1272625C91C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

55192C1

KEY

hydraulic motor

1шт.

123343C2

PACKAGE, REPAIR

KIT, repair, serial no. 10208 and below, order motor assy, 1272625C91, shaft, 140450C1, two retainers, 1272626C1 and two washers, 120388

1шт.

13

141250C93

MOTOR

ASSY, hydraulic, only serviceable item is

1шт.

13

1272625C91R

REMAN-HYD MOTOR

500 INTERNATIONAL HARVESTER CYCLO FLEX FRAME PLANTER, ASSY, hydraulic (1/77-12/81), Reman for New PN 141250C93

1шт.

13

1272625C91C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

123343C2

PACKAGE, REPAIR

KIT, repair, serial no. 10209 and above, order motor assy, 1272625C91, two retainers, 1272626C1 and two washers, 120388

1шт.

13

1272625C91

MOTOR, HYDRAULIC

MOTOR ASSY, hydraulic, only serviceable item is

1шт.

13

1272625C91R

REMAN-HYD MOTOR

500 INTERNATIONAL HARVESTER CYCLO FLEX FRAME PLANTER, MOTOR ASSY, hydraulic (1/77-12/81)

1шт.

13

1272625C91C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1272340C1

KIT

repair

1шт.

1272626C1

RETAINER

motor

2шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

549536R1

HOUSING

bearing

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 znd short sq-nk

8шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

WASHER, 17/32 x 1 x .054 sq hole

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

15

57582C1

COUPLING

air hose, 2 for 16 row, 2 for 12 row 1980 and above

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

WASHER, LOCK, Int Tooth, 1/4"

8шт.

120392

WASHER,1/4", SAE

.281 x .625 x .060 znd

16шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

16

57580C1

GASKET

coupling, 2 for 16 row, 2 for 12 row 1980 and above

1шт.

17

546319R6

SHEET

fan housing rear, 2 for 12 row

1шт.

178372R1

WASHER

.406 x 1.250 x .054

2шт.

23559R1

WASHER

.406 x 1.875 x .054

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

17

58216C4

SHEET

ASSY, fan housing rear, 2 for 16 row

1шт.

180139

SCREW

BOLT, 7/16 x 1/2 type 5

1шт.

271501

SOCKET

NUT, 7/16 type 5

1шт.

18

546320R2

HOUSING

fan, 2 for 12 row, 1979 and below

1шт.

18

57571C1

HOUSING

fan, 2 for 16 row, 2 for 12 row 1980 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

50шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

50шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

50шт.

120376

NUT,5/16"-18, G5

50шт.

120391

WASHER,#10

.219 x .500 x .035 znd

12шт.

19

55192C1

KEY

hydraulic motor, for hydraulic motor 549530R91

2шт.

56767C1

GREASE

LUBRICANT, 1/2 oz., special for hydraulic motor shaft and key

1шт.
