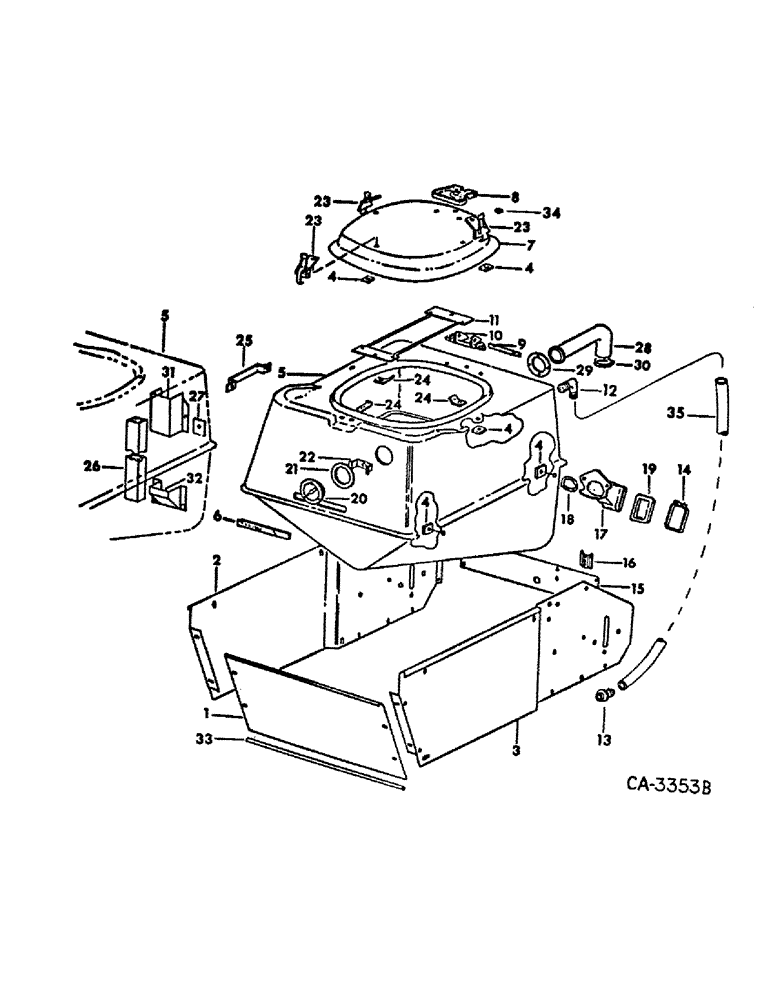

Запчасти Case IH 500 (C-13) - SEED HOPPER AND MOUNTING

1

58192C1

PANEL, support plate front

2шт.

172480

SCREW,Hex, 3/8" - 16 x 5/8"

3/8-16 x 5/8 type D hex-hd tap.

8шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

8шт.

20803R1

WASHER

.406 x 1 x .105 znd

4шт.

2

57370C4

SUPPORT w/PRODUCT GRAPHIC, 113484C1, hopper & blower RH

2шт.

3

100010C4

SUPPORT, hopper & blower LH

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

24шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

8шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.

120377

NUT,3/8" - 16, Gr 5

32шт.

4

547692R1

PAD

seed hopper and lid latch

18шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

21375R1

WASHER

.531 x 1.25 x .164 znd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

5

60216C92

HOPPER ASSY, seed, 2 for 12 row

1шт.

5

60217C92

HOPPER ASSY, seed, 2 for 16 row

1шт.

100433C1

BUMPER, flange plug, used to plug unused holes in seed hopper

2шт.

6

57731C91

WINDOW

ASSY, seed hopper

2шт.

7

548626R1

LID

w/PRODUCT GRAPHIC, 113483C1, hopper

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

6шт.

8

546325R1

HINGE

hopper lid

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

9

547276R1

PIN

pivot lid

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

4шт.

10

546327R1

PIVOT

lid

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

11

546328R1

GUARD ASSY, hopper

2шт.

12

547464R1

ELBOW

FITTING, 90 deg elbow, 2 for 12 row

1шт.

150450H1

LOCK NUT

NUT, 1 in. pipe lock

4шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

4шт.

13

547465R1

FITTING, straight hose shank, 2 for 12 row

1шт.

150450H1

LOCK NUT

NUT, 1 in. pipe lock

4шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

4шт.

14

57730C1

CLAMP

seal

2шт.

15

113164C91

PLATE w/PRODUCT GRAPHIC, 61907C1, & 819809C1 rear, 2 for 12 row

1шт.

15

113165C91

SUPPORT

PLATE w/PRODUCT GRAPHIC, 61907C1, 7 819809C1 rear, 2 for 16 row

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 3/4 znd hex-hd mach

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

16

398976R1

BRACKET

SOCKET, slow moving vehicle emblem mounting

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

17

546348R3

COUPLING

seed tube

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

5/16-18 x 3/4 znp slt-pan head mach

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. flange lock

6шт.

18

60218C1

GASKET

coupling

2шт.

19

57395C1

SEAL

tube upper

2шт.

20

149128C91

GAUGE

air pressure, replaces 149129C1

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21

546988R1

GASKET

air gauge

2шт.

22

BRACKET, gauge retaining, order 149128C91

2шт.

23

549768R1

LATCH

lid

6шт.

24

548622R1

CLIP

locking

6шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

12шт.

25

58281C1

HANDLE, assist

2шт.

547692R1

PAD

assist handle

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

21375R1

WASHER

1.250 x .531 x .164 znd

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

26

57399C1

TUBE

air, 2 for 16 row

1шт.

27

57560C1

CLAMP

air tube, 2 for 16 row

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

4шт.

120376

NUT,5/16"-18, G5

4шт.

28

57581C1

HOSE

hopper air, 2 for 16 row

1шт.

29

57561C1

PLATE

clamping, 2 for 16 row

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

30

21240R1

CLAMP, type D 3-1/2, 2 for 16 row

1шт.

31

57567C1

COVER

hopper air hose, 2 for 16 row

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

32

58047C1

BAFFLE

ASSY, air tube, 2 for 16 row

1шт.

33

100012C1

ROD, plate tie

2шт.

34

542535R1

GASKET

rubber

2шт.

35

TUBE, 38 in. seed, make from 100 foot roll marked, 546541R2, 2 for 12 row

1шт.
