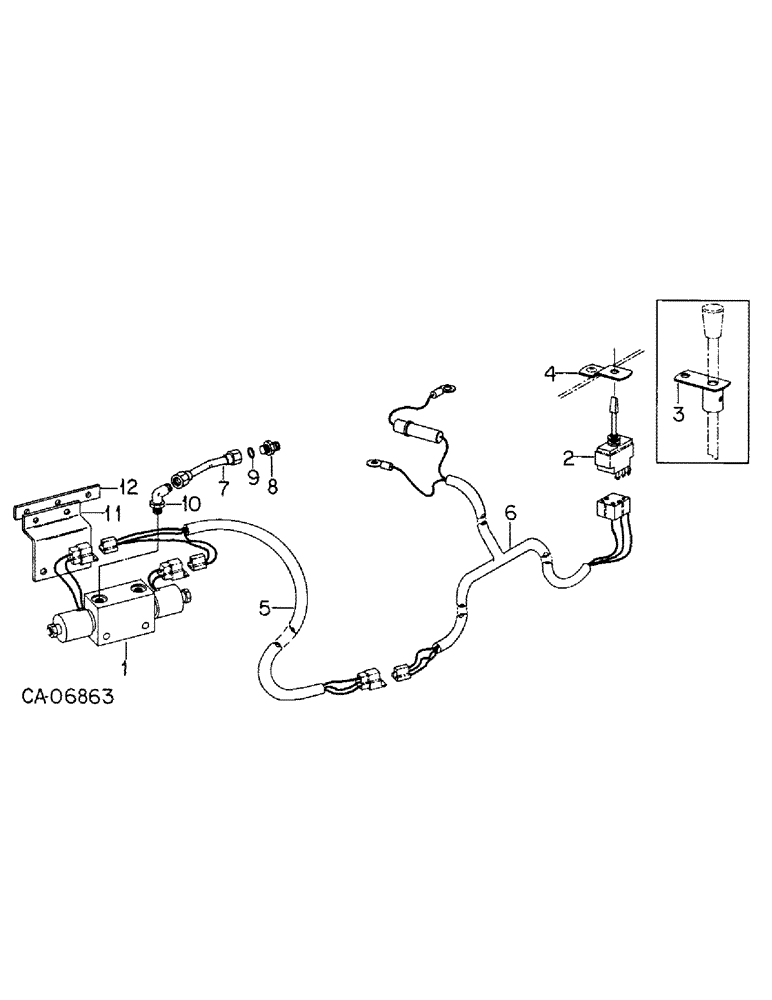

Запчасти Case IH 400 (A-102) - ELECTRIC MARKER ADAPTING PACKAGE

145165C91

PACKAGE

electric marker adapting, consists of

1шт.

1

149988C92

VALVE

ASSY, marker solenoid, replaces 125532C91 by also ordering two cables, 1252639C1, for components see list of parts under details of marker solenoid valve

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

121542C1

SWITCH

1шт.

3

113492C1

ARM

PLATE ASSY, mtg, for 56 & 66 series tractors

1шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16 x 3/8 c/pt znp hdl/s set

1шт.

4

128870C1

LARGE PLATE

PLATE, switch mtg, for 86 series tractors

1шт.

5

119835C1

HARNESS

1шт.

6

119628C1

HARNESS

switch

1шт.

7

145159C1

TUBE,0.375" OD, 62" Length

ASSY

1шт.

8

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 37 deg hyd flared tube short swivel

1шт.

9

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

10

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

9/16-18 37 deg flared tube

1шт.

11

145164C1

PLATE

adapter

1шт.

12

145163C1

BAR

support

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

58555C1

FASTENER

STRAP, tie

2шт.
