Запчасти Case IH 400 (A-100) - GENERATOR, ALTERNATOR, DIAL-A-RATE

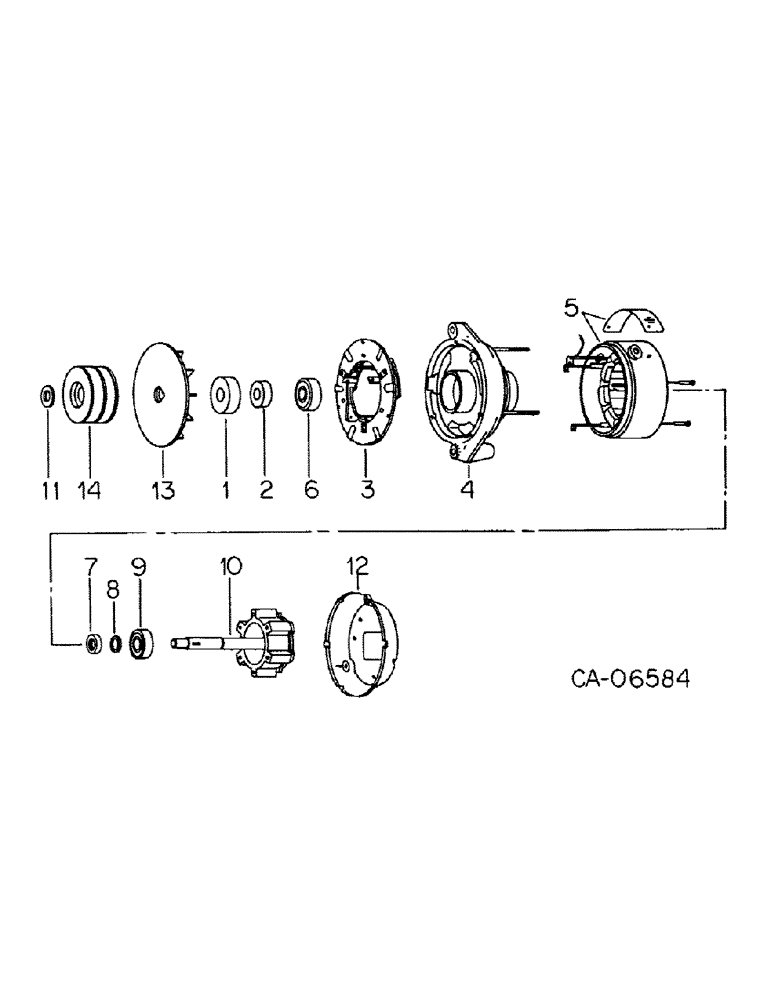

Схема запчастей Case IH 400 - (A-100) - GENERATOR, ALTERNATOR, DIAL-A-RATE
2
3
13
6
14
8
1
4
7
11
9
10
12
5

Артикул

Название

Примечание

Количество

128563C91

GENERATOR

ALTERNATOR, Niehoff N-1033-1

1шт.

1

130991C1

CUP WASHER

front spring and bearing cover

1шт.

2

130922C1

SPACER

front

1шт.

3

131187C1

AMPLIFIER, rectifier and heat sink

1шт.

4

131188C1

FRAME, field winding

1шт.

5

131189C1

STATOR, shell

1шт.

6

131097C91

BALL BEARING,0.6693" ID x 1.8504" OD x 0.5512"

front

1шт.

7

130998C1

CUP WASHER

retainer cup

1шт.

8

130993C1

RING

retaining

1шт.

9

131098C91

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

rear

1шт.

10

130999C1

ROTOR

1шт.

11

131193C1

WASHER

between pulley and fan

1шт.

12

131006C1

COVER

voltage regulator

1шт.

13

131194C1

FAN, alternator

1шт.

14

131192C1

PULLEY

1шт.

131191C1

PACKAGE

1шт.

PACKAGE, small hardware, consists of insulator (NSS), washer (NSS), washer (NSS), (2) washer (NSS), washer (NSS), washer (NSS), (4) screw (NSS), (2) plug (NSS), (4) locknut (NSS), locknut (NSS), (2) locknut (NSS), (3) nut (NSS), key (NSS), ring (NSS), (3) stud (NSS), stud (NSS), (4) guide (NSS), (3) screw (NSS)

1шт.

Выбрано товаров: 17
