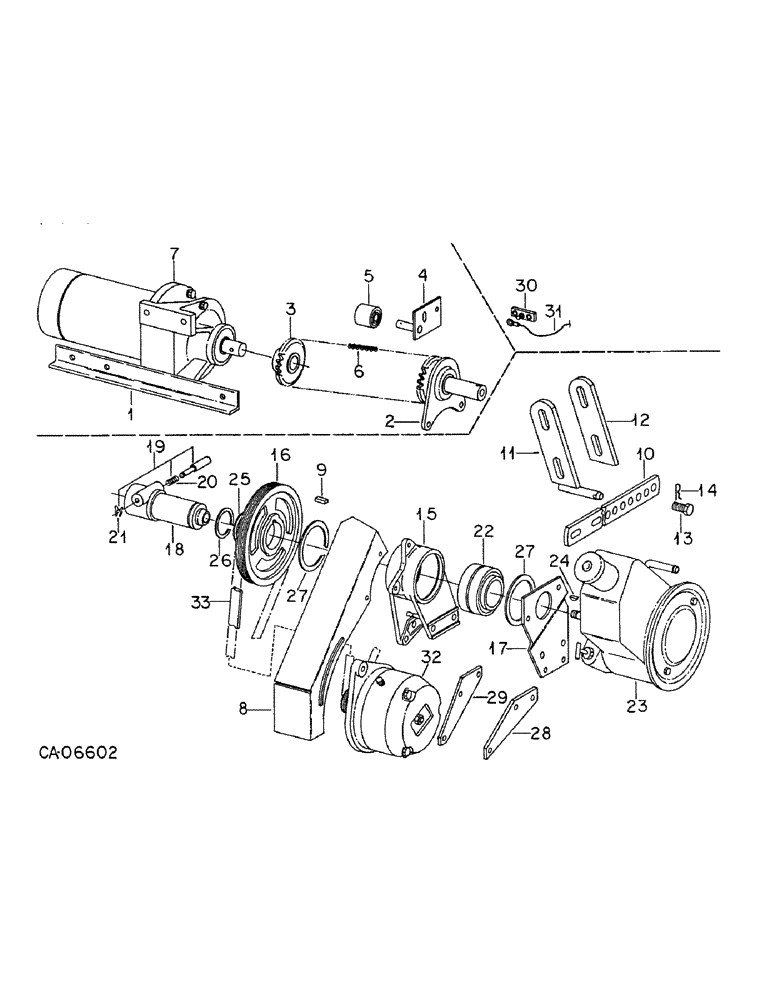

Запчасти Case IH 400 (A-098) - ELECTRONIC POPULATION CONTROL, HYDRAULIC DRIVE
№
Артикул
Название
Примечание
Количество
1
125807C1
ANGLE, side sheet
1шт.
180147
SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5
BOLT, 7/16 x 1-1/4 type 5
1шт.
180149
LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5
BOLT, 7/16 x 1-1/2 type 5
2шт.
180151
BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5
7/16 x 1-3/4 type 5
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
5шт.
271501
SOCKET
NUT, 7/16 type 5
5шт.
2
128565C1
SPROCKET w/BEARING
1шт.
3
128564C1
SPROCKET, 19T
1шт.
4
128974C1
PLATE, chain tightener
1шт.
5
57796C1
ROLLER
chain tightener
1шт.
178373R1
WASHER
.531 x 1.000 x .056
2шт.
137185
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
21891R1
HEADED PIN,5/16" x 2"
PIN, 5/16 x 2 hd type 1
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
23505R1
WASHER
.281 x .625 x .054
2шт.
6
CHAIN, drive, use 51 links from 10 ft roll marked 475879R91 and 1, 3106D connecting link
1шт.
7
128562C91
MOTOR, power unit, for components see list of parts under motor, power unit
1шт.
8
128530C1
BRACKET
adjusting
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
2шт.
180078
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
5/16 x 7/8 type 5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
446363
WASHER,5/16"
.375 x .875 x .064
1шт.
9
578673R1
KEY, 3/8 sq parallel
1шт.
10
56774C1
BRACKET
adjusting
1шт.
Q3542
HEADED PIN,11.1mm OD x 38.1mm L
PIN, 7/16 x 1.500 pln hd type 1
2шт.
120395
WASHER
.469 x .922 x .051
2шт.
11
56775C91
ANGLE
STRAP ASSY
1шт.
12
56776C1
BAR
STRAP
1шт.
433156
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5
1/2 x 4-1/2 type 5
2шт.
NLS
NO LONGER SERVICED
.531 x 1.062 x .074
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
13
56788C1
BOLT,Hex, 5/8" - 11 x 1 1/2", Drilled
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
14
520175R1
CLIP
PIN, 3/16 qa
2шт.
15
125548C1
HOUSING, alternator support
1шт.
16
125547C1
PULLEY, poly, V
1шт.
17
125575C1
SUPPORT, pump mounting
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
18
125545C2
COUPLING
ASSY, pressed
1шт.
19
631976R91
PIN
ASSY, lock
1шт.
20
455347R1
VALVE SPRING
SPRING, locking pin
1шт.
21
661406R1
LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk
1шт.
22
125666C91
BEARING, ROLLER, CYL,1.9375" ID
BEARING
2шт.
23
149368C91
PUMP
ASSY, hydraulic w/caution product graphic 145167C1, for components see list of details under hydraulic pump
1шт.
23
1986017C1R
REMAN-HYD PUMP
Reman for New P/N 149368C91
1шт.
23
1986017C1C
CORE-HYDRAULIC PUMP
Return Number
1шт.
24
218217
KEY
3/16 x 5/8 Woodruff
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
25
125546C1
WASHER
6шт.
26
24985R1
RING,#193, Ext
Snap, #193, Ext
1шт.
27
12125
SNAP RING
Ring, Snap, 3.562", Int, #354
2шт.
28
125576C1
SUPPORT
1шт.
180123
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd
3/8 x 1-1/8 type 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
29
125577C1
SUPPORT
1шт.
180138
BOLT,Hex, 3/8" - 16 x 3", Gr 5
3/8 x 3 type 5
1шт.
180123
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd
3/8 x 1-1/8 type 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
30
187526C1
BLOCK
JUNCTION
1шт.
274957
GIFTS, VACUUM FLASK
no. 10 x 3/4 znp h/hd mach
2шт.
120391
WASHER,#10
.219 x .500 x .036
4шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
31
134095C1
CABLE
1шт.
32
128563C91
GENERATOR
ALTERNATOR, for components see list of details under generator alternator
1шт.
33
125671C1
V-BELT,0.74" W
8 Ribs 0.74" W
1шт.
76697C1
PACKAGE, product graphics, consists of International 400 LH (NSS), International 400 RH (NSS), dial-a-rate (NSS)
1шт.
Выбрано товаров: 78
