Запчасти Case IH 400 (A-097) - ELECTRONIC POPULATION CONTROL, PTO DRIVE

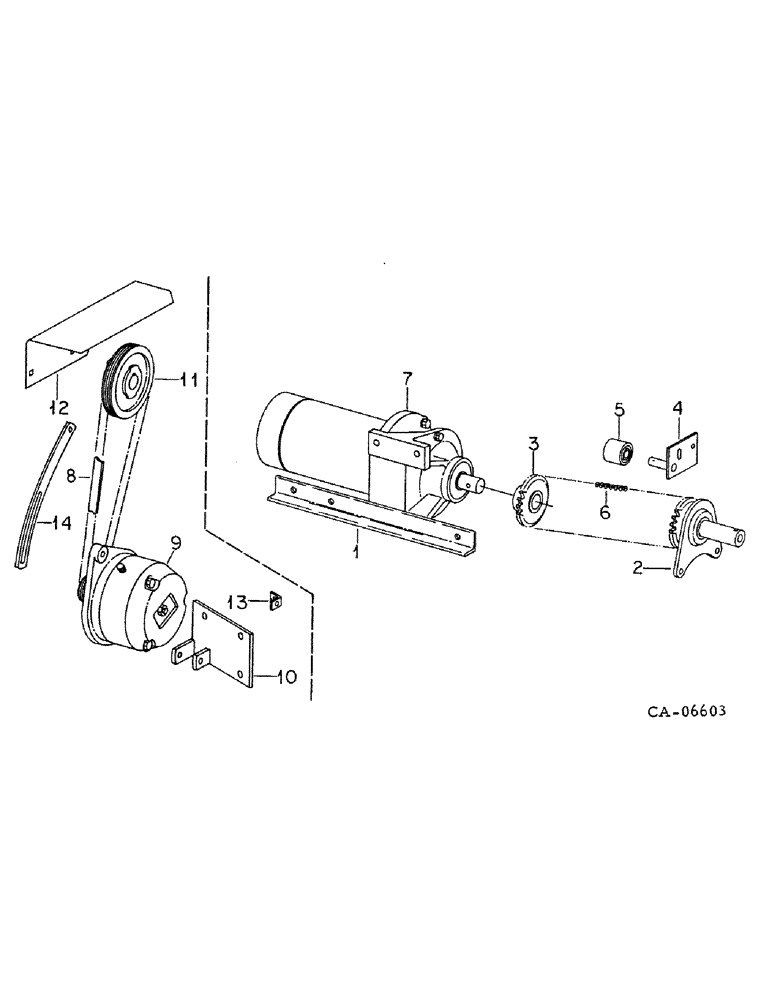

Схема запчастей Case IH 400 - (A-097) - ELECTRONIC POPULATION CONTROL, PTO DRIVE
10
5
2
7
12
4
3
9
14
11
8
1
6
13

Артикул

Название

Примечание

Количество

1

125807C1

ANGLE, side sheet

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 type 5

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2 type 5

2шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16 x 1-3/4 type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

5шт.

271501

SOCKET

NUT, 7/16 type 5

5шт.

2

128565C1

SPROCKET w/BEARING

1шт.

3

128564C1

SPROCKET, 19T

1шт.

4

128974C1

PLATE, chain tightener

1шт.

5

57796C1

ROLLER

chain tightener

1шт.

178373R1

WASHER

.531 x 1.000 x .056

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

21891R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

23505R1

WASHER

.281 x .625 x .054

2шт.

6

CHAIN, drive, use 51 links from 10 ft roll marked 475879R91 and 1, 1306D connecting link

1шт.

7

128562C91

MOTOR ASSY, power unit, for components see list of parts under motor, power unit

1шт.

8

125671C1

V-BELT,0.74" W

8 Ribs 0.74" W

1шт.

9

128563C91

GENERATOR

ALTERNATOR, for components see list of details under generator, alternator

1шт.

10

128802C2

SUPPORT, alternator

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

11

140534C91

PULLEY w/SET SCREW

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 znd sq-hd c/pt set

1шт.

12

137018C1

SHIELD, belt

1шт.

13

125820C1

ANGLE, bracket

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

14

125819C1

SUPPORT, adjusting

1шт.

76697C1

PACKAGE, product graphics, consists of International 400 LH (NSS), International 400 RH (NSS), dial-a-rate (NSS)

1шт.

Выбрано товаров: 37
