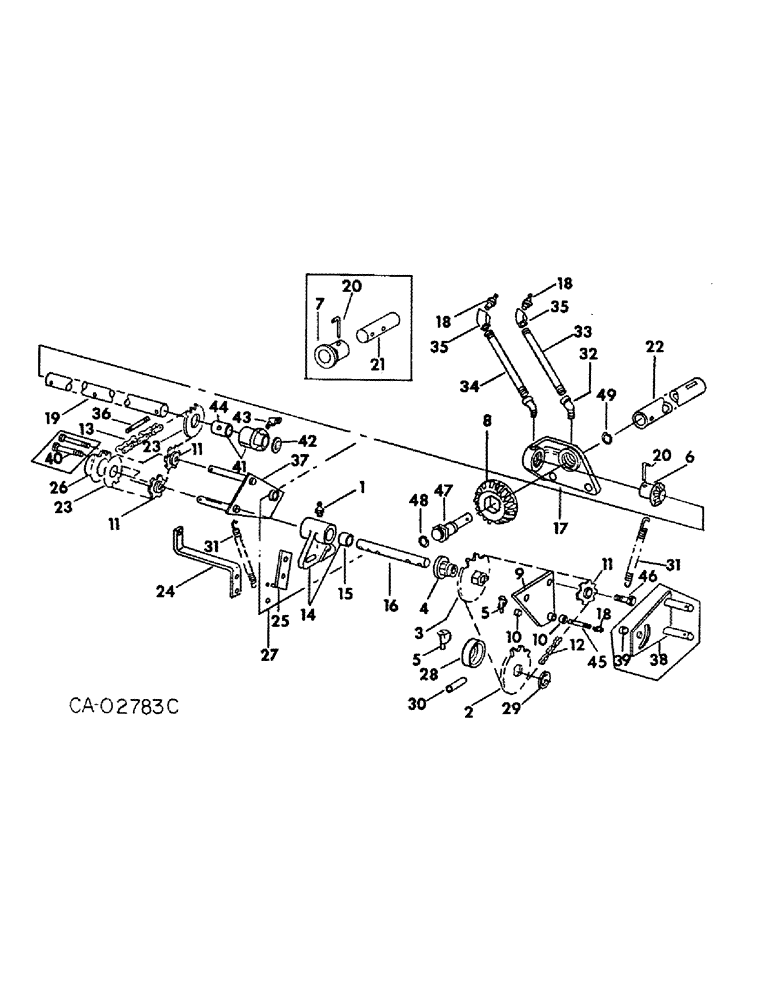

Запчасти Case IH 400 (A-012) - SECONDARY SEED HANDLING DRIVE

1

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF2 STR lub

1шт.

2

546516R1

SPROCKET ASSY.

SPROCKET, 15T, serial no. 60299 and below

1шт.

2

134239C1

SPROCKET ASSY.

SPROCKET, 15T, serial no. 60300 and above

1шт.

2

546515R1

SPROCKET ASSY.

SPROCKET, 18T, serial no. 60299 and below

1шт.

2

134242C1

SPROCKET ASSY.

SPROCKET, 18T, serial no. 60300 and above

1шт.

2

484196R2

SPROCKET ASSY.

SPROCKET, 17T, serial no. 60299 and below

1шт.

2

134241C1

SPROCKET ASSY.

SPROCKET, 17T, serial no. 60300 and above

1шт.

2

546432R1

SPROCKET ASSY.

SPROCKET, 16T, serial no. 60299 and below

1шт.

2

134240C1

SPROCKET ASSY.

SPROCKET, 16T, serial no. 60300 and above

1шт.

2

546433R1

SPROCKET ASSY.

SPROCKET, 14T, serial no. 60299 and below

1шт.

2

134238C1

SPROCKET ASSY.

SPROCKET, 14T, serial no. 60300 and above

1шт.

2

484197R2

SPROCKET ASSY.

SPROCKET, 12T, serial no. 60299 and below

1шт.

2

134237C1

SPROCKET ASSY.

SPROCKET, 12T, serial no. 60300 and above

1шт.

2

546518R1

SPROCKET ASSY.

SPROCKET, 11T, serial no. 60299 and below

1шт.

2

134236C1

SPROCKET ASSY.

SPROCKET, 22T, serial no. 60300 and above

1шт.

2

546514R1

SPROCKET ASSY.

SPROCKET, 10T, serial no. 60299 and below

1шт.

2

134235C1

SPROCKET ASSY.

SPROCKET, 10T, serial no. 60300 and above

1шт.

2

546517R1

SPROCKET ASSY.

SPROCKET, 8T, serial no. 60299 and below

1шт.

2

134234C1

SPROCKET ASSY.

SPROCKET, 8T, serial no. 60300 and above

1шт.

3

484197R2

SPROCKET ASSY.

SPROCKET, 12T, serial no. 60299 and below

1шт.

3

134237C1

SPROCKET ASSY.

SPROCKET, 12T, serial no. 60300 and above

1шт.

3

546515R1

SPROCKET ASSY.

SPROCKET, 18T, serial no. 60299 and below

1шт.

3

134242C1

SPROCKET ASSY.

SPROCKET, 18T, serial no. 60300 and above

1шт.

3

484196R2

SPROCKET ASSY.

SPROCKET, 17T, serial no. 60299 and below

1шт.

3

134241C1

SPROCKET ASSY.

SPROCKET, 17T, serial no. 60300 and above

1шт.

3

546432R1

SPROCKET ASSY.

SPROCKET, 16T, serial no. 60299 and below

1шт.

3

134240C1

SPROCKET ASSY.

SPROCKET, 16T, serial no. 60300 and above

1шт.

3

546516R1

SPROCKET ASSY.

SPROCKET, 15T, serial no. 60299 and below

1шт.

3

134239C1

SPROCKET ASSY.

SPROCKET, 15T, serial no. 60300 and above

1шт.

3

546433R1

SPROCKET ASSY.

SPROCKET, 14T, serial no. 60299 and below

1шт.

3

134238C1

SPROCKET ASSY.

SPROCKET, 14T, serial no. 60300 and above

1шт.

3

546518R1

SPROCKET ASSY.

SPROCKET, 11T, serial no. 60299 and below

1шт.

3

134236C1

SPROCKET ASSY.

SPROCKET, 11T, serial no. 60300 and above

1шт.

3

546514R1

SPROCKET ASSY.

SPROCKET, 10T, serial no. 60299 and below

1шт.

3

134235C1

SPROCKET ASSY.

SPROCKET, 10T, serial no. 60300 and above

1шт.

3

546517R1

SPROCKET ASSY.

SPROCKET, 8T, serial no. 60299 and below

1шт.

3

134234C1

SPROCKET ASSY.

SPROCKET, 8T, serial no. 60300 and above

1шт.

4

547955R1

HUB

sprocket drive

1шт.

5

373025R91

PIN ASSY.

PIN, quick attachable snap

2шт.

6

128760C1

PINION

drum drive, will work for 546287R3 when used w/gear 128763C1

1шт.

7

546298R1

BUSHING

drive, for service replacement order gear 128763C1, pinion, 128760C1, shaft 128806C1, washer Q3835, ring 202306R1 and ring 659380R1

1шт.

7

55579C3

BUSHING

drive, for use w/shaft 546532R1

1шт.

8

546239R1

GEAR

drum drive, 24 teeth, for service replacement order gear 128763C1, pinion 128760C1, shaft 128806C1, washer Q3835, ring 202306R1 and ring 659380R1

1шт.

8

128763C1

PINION

GEAR, drum drive, 24 teeth, will work for 55580C3 when used w/gear 128760C1

1шт.

9

64477C1

LEVER

PLATE ASSY, chain tightener, serial no. 1608 and above, will work for 548530R2 when used with 2 screws 26527R1 and 4 nuts 120238

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

SCREW, 3/8-16 x 1/2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

178372R1

WASHER

13/32 x 1-1/4 x .054 znd

1шт.

10

548537R1

BUSHING

pivot, serial nos., Serial Range: 1608-9048

2шт.

10

58439C1

BUSHING

pivot, serial no. 9049 and above

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

5шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

3шт.

11

472344R3

SPROCKET

idler, 6 teeth

4шт.

20869R1

WASHER

17/32 x 7/8 x 16 ga znd

4шт.

12

CHAIN, drum drive, use 31 links from 10 ft roll marked, 569088R91, one connecting link, 457113R91 and two offset links, 457114R91

1шт.

13

CHAIN, main drum drive, use 53 links from 10 ft roll marked, 569088R91, and one connecting link, 457113R91

1шт.

14

484393R12

BRACKET

BEARING w/BUSHING, 378699R1, shaft

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach, 2 for 4 row and 6 row narrow

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach, 2 for 6 row wide and 8 row

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

15

378699R1

BUSHING,22.25mm ID x 25.43mm OD x 22.35mm L

replaces 210094R1

2шт.

16

547957R1

SHAFT

drum drive, serial no. 60299 and below

1шт.

16

137403C1

SHAFT

drum drive, serial no. 60300 and above

1шт.

22098R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

17

546529R2

BOX

GEAR BOX

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

3шт.

19

546530R2

SHAFT

gear drive

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

2шт.

21794R1

WASHER

1-13/32 x 2 x 20 ga C-Z (as required)

2шт.

22481R1

WASHER

1-13/32 x 2-1/4 x .054 znd

2шт.

20

546531R1

PIN

drive

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

21

546532R1

SHAFT

gear drum drive, for service replacement order shaft 128806C1, washer Q3835, ring 202306R1 and ring 659380R1

1шт.

22

546533R1

COUPLING

drum drive, serial no. 9048 and below

1шт.

22

56041C1

COUPLING

drum drive, serial no. 9049 and above

1шт.

385098R1

HEADED PIN,1/4" x 1 11/16"

PIN, 1/4 x 1.81 STD hd

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga C-Z

2шт.

23

546538R1

SPROCKET ASSY.

SPROCKET, 15 teeth

1шт.

20535R1

CLEVIS PIN

PIN, 3/16 x 1-3/4 rod end

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

24

546991R1

BRACKET, sprocket storage

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

25

548535R1

ANCHOR, spring, serial no. 1608 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

1978 and below 3/8"-16, G5

2шт.

149218C1

CLIP

spring, 1979 and since

16шт.

26

546537R1

SPROCKET ASSY.

SPROCKET, 12 teeth

1шт.

20535R1

CLEVIS PIN

PIN, 3/16 x 1-3/4 rod end

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

27

MAIN FRAME, refer to main frame unit

1шт.

28

548461R1

CYLINDER END CAP

CAP, drive

1шт.

29

548462R1

WASHER

1шт.

30

22061R1

PIN, 1/4 x 1-1/8 HV coiled spring

1шт.

31

PO7

SPRING

serial no. 1608 and above

2шт.

32

105422

ELBOW UNION

ELBOW, 1/8 x 90 deg street

2шт.

33

219320

NIPPLE, 1/8 x 12 in. pipe Nipple, 1/8" NPT x 12"

1шт.

34

25804R1

NIPPLE, 1/8 x 11 in. pipe

1шт.

35

NLS

NO LONGER SERVICED

ELBOW, 1/8 x 45 deg pipe, 4 and 6 row

2шт.

36

548312R1

PIN

rear drive

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

37

548526R2

LEVER

TIGHTENER ASSY

1шт.

38

546520R1

PLATE

ASSY, chain tightener, serial no. 1607 and below

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z cot.

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

39

622567R1

WASHER

BUSHING, serial no. 1607 and below

2шт.

40

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap, serial no. 1607 and below

2шт.

20601R1

WASHER

17/32 x 1-1/4 x .105 znd

4шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znd hex. jam

4шт.

41

481812R11

BEARING ASSY

w/BUSHING, 484060R1, shaft

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 znd self-opening cot.

1шт.

42

589937R1

WASHER

wear

1шт.

43

19700R91

FITTING

3/16 45 deg angle lub

1шт.

44

484060R1

BUSHING

shaft bearing

1шт.

45

100207C1

UNION

STUD, pivot, replaces bolt, 58438C1

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 16 ga znd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

46

26527R1

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap drld

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

4шт.

47

128806C1

SHAFT

drive

1шт.

Q3858

WASHER

1.406 x 2.250 x .033 pln

1шт.

48

202306R1

SNAP RING,#162, Ext

Ring, Snap, #162, Ext

1шт.

49

659380R1

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.
