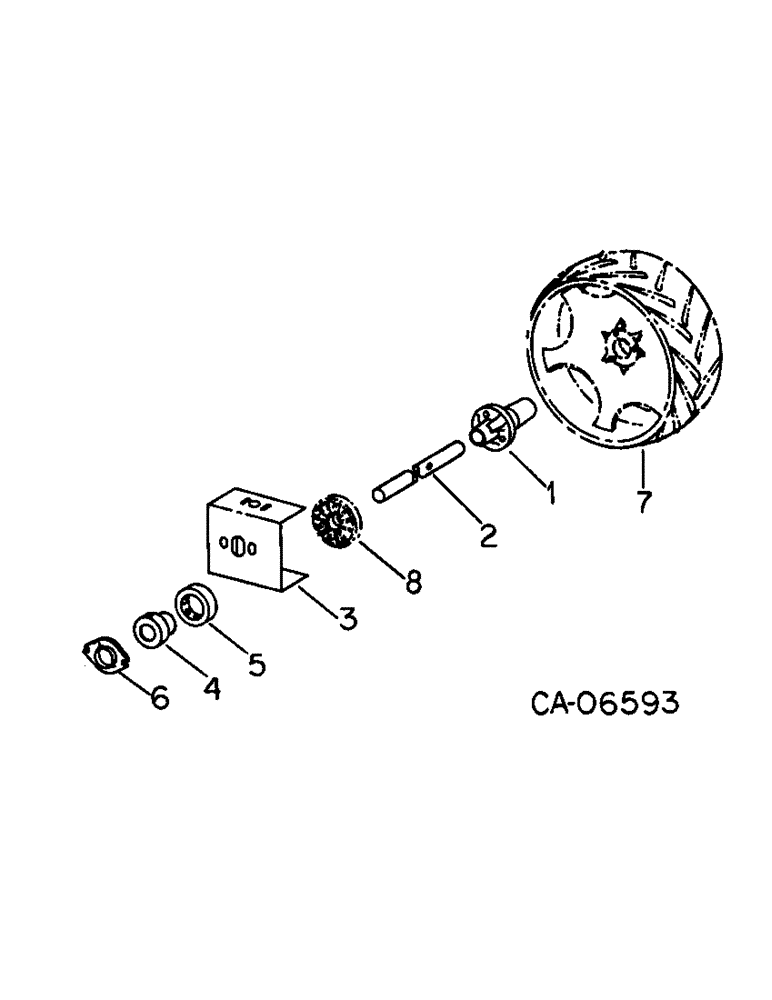

Запчасти Case IH 400 (A-096) - DISTANCE PICK-UP WHEEL AND RELATED PARTS

1

119684C1

HUB, press wheel

1шт.

2

119683C1

PIN

AXLE

1шт.

22076R1

HEADED PIN,1/4" x 1 7/16"

PIN, 1/4 x 1.438 hd type 5

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-open cot

1шт.

3

125851C1

CASE, rotor

1шт.

4

545139R91

COLLAR ASSY.

COLLAR w/SET SCREW

2шт.

5

543766R91

BEARING ASSY,15.88mm ID x 35mm OD x 11mm W

press wheel

2шт.

6

543731R1

FLANGE

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

607895R1

WASHER

.531 x 1.000 x .105

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

7

WHEEL, press and tire, refer to press wheels and tires

1шт.

8

WHEEL, distance pick-up, Serial Range: refer-dial-a-rate

1шт.
