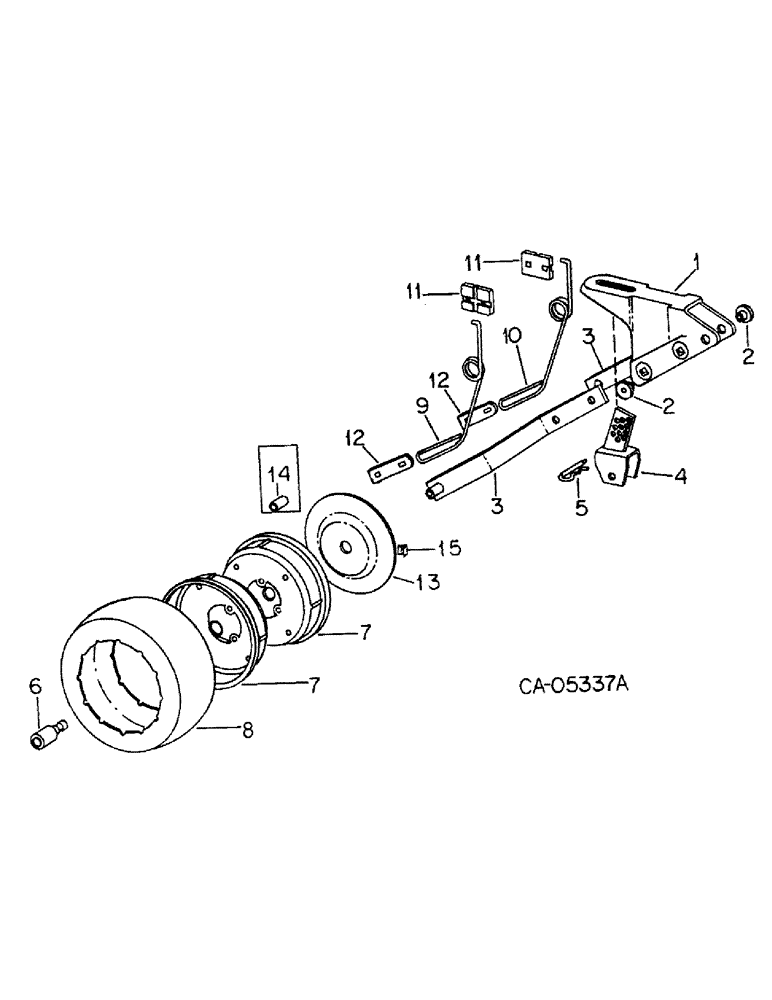

Запчасти Case IH 400 (A-092) - GAUGE WHEEL FOR OPENER, QUANTITIES SHOWN ARE PER ROW

1

125935C4

BRACKET

gauge wheel

1шт.

20281R1

BOLT,Hex, 1/2"-13 x 3 3/4", G2

1/2 x 3-3/4 type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

546562R2

BUSHING

pivot

2шт.

3

125929C1

ARM

ASSY, gauge wheel, Serial Range: 1971-1978

2шт.

3

137336C1

ARM

ASSY, gauge wheel, 1978 and since

2шт.

22227R1

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 znd f/pt hdl/hs set

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

125932C1

BRACKET

ASSY, depth

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

473865R91

LINCH PIN

PIN ASSY, depth stop

1шт.

6

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING ASSY, gauge wheel

2шт.

7

526768R1

WHEEL

RIM, gauge wheel

4шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16 x 2-1/4 crg type 1

8шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 type 1

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

120376

NUT,5/16"-18, G5

14шт.

8

516492R1

TYRE/TIRE

TIRE, zero pressure 4 x 12 in.

2шт.

9

125984C1

SPRING

seed covering left, 1971 to 1978, order spring pkg 75809C91

1шт.

9

137389C91

SPRING

ASSY, covering left, 1978 and since

1шт.

10

137390C91

SPRING

ASSY, covering right, 1978 and since

1шт.

10

125952C1

SPRING

ASSY, seed covering right, 1971 to 1978, order spring pkg 75809C91

1шт.

11

137313C1

CLAMP

spring, 1978 and since

1шт.

137314C2

U-BOLT,3/8" - 16 x 38.10mm W x 46mm L

1шт.

11

125953C4

BAR, clamp, block, Serial Range: 1971-1978

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 crg type 1

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

12

125977C2

BAR

spring, blade

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

4шт.

97865H

WASHER

.281 x .875 x .054

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

13

128702C1

PLATE

shield, 1978 and below

2шт.

14

128703C1

SPACER

disk

8шт.

15

149218C1

CLIP

spring, 1979 and since

16шт.

953255R1

SPACER, used for center rows for mounting to drawbar extensions

2шт.

75809C91

SET

SPRING PKG, consists of

1шт.

140445C91

SPRING

PKG

1шт.

137375C1

PLUG

1шт.

137376C1

CAP

1шт.

SPRING (NSS)

1шт.

140446C91

SPRING

ASSY

1шт.

137375C1

PLUG

1шт.

137376C1

CAP

1шт.

75810C91

ARM

PKG, gauge wheel, consists of

1шт.

137336C1

ARM

gauge wheel

1шт.

137337C1

ARM, gauge wheel

1шт.

137338C1

SLEEVE

1шт.
