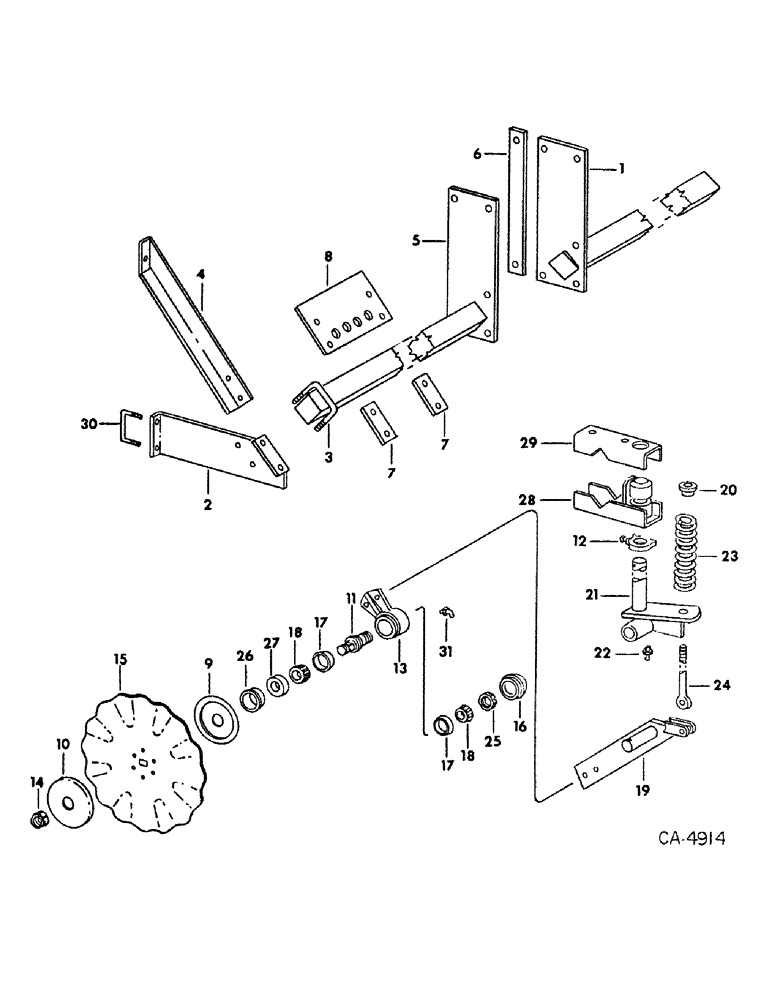

Запчасти Case IH 400 (A-090) - COU-TILL ATTACHMENT, USED WITH 4 ROW AND 6 ROW NARROW PLANTERS, MACHINES BUILT 1976 AND SINCE
№
Артикул
Название
Примечание
Количество
1
113326C1
HITCH ASSY, LH, 4 row
1шт.
1
113242C1
HITCH ASSY, LH, 6 row narrow
1шт.
24875R1
BOLT,Hex, 5/8" - 11 x 2", Gr 8
5шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
5шт.
25528R1
NUT,5/8"-11, G8
5/8-11 PHC type 8 lock
5шт.
2
113302C2
SUPPORT ASSY, frame tie
2шт.
3
514300R2
U-BOLT
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8-11 znd hex.
4шт.
4
113300C1
FRAME ASSY, brace
2шт.
18496R1
BOLT,Hex, 1/2"-13 x 1 1/2", G2
1/2 x 1-1/2 znd hex-hd mach
6шт.
120384
WASHER,1/2"
LOCK, 1/2"
6шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
6шт.
5
113325C1
HITCH ASSY, RH, 4 row
1шт.
5
113245C1
HITCH ASSY, RH, 6 row narrow
1шт.
24875R1
BOLT,Hex, 5/8" - 11 x 2", Gr 8
5шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
5шт.
25528R1
NUT,5/8"-11, G8
5/8-11 PHC type 8 hex.
5шт.
6
544062R1
STRAP, hitch plate
4шт.
7
113082C1
CLAMP, weight bracket
4шт.
8
113083C1
BAR
weight bracket
2шт.
20281R1
BOLT,Hex, 1/2"-13 x 3 3/4", G2
1/2 x 3-3/4 znd hex-hd mach
8шт.
120384
WASHER,1/2"
LOCK, 1/2"
8шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
8шт.
9
523020R3
SUPPORT ASSY.
SUPPORT, inside blade, 1 per row
1шт.
10
523021R2
SUPPORT ASSY.
SUPPORT, outside blade, 1 per row
1шт.
11
541480R1
SPINDLE
colter, 1 per row
1шт.
12
523345R21
COLLAR CLAMP
COLLAR W/SET SCREW, 20080R1, stop, 1 per row
1шт.
20080R1
SET SCREW
1/2-13 x 1-1/4 znd sq-hd cup pt set
1шт.
13
541482R1
BEARING HOUSING,2.3275" ID x 3" OD x 2.44"
HOUSING, RH brg, 1 per row
1шт.
14
26963R1
NUT,7/8"-14, G8
NUT, 7/8-14 znd SLT hex. type 8, 1 per row
1шт.
137214
COTTER PIN
1/8" x 1-3/4"
1шт.
15
469191R3
BLADE
17 in. diameter rippled edge colter disk, 1 per row
1шт.
15
60814C1
DISK HARROW
BLADE, 17-1/2 in. diameter colter disk, 1-3/4 inch fluted, 1 per row
1шт.
15
113331C1
DISK HARROW
BLADE, 18 in. diameter colter disk, 1 inch fluted, 1 per row
1шт.
16
518842R1
CAP
hub, 1 per row
1шт.
19
113105C1
ARM ASSY, colter, 1 per row
1шт.
180183
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5
SCREW, 1/2-13 x 2-1/4 znd hex-hd cap
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
20
487697R1
CENTERING RING
SPACER, spring assy, 1 per row
1шт.
21
113100C1
BRACKET ASSY, colter, 1 per row
1шт.
19471R1
PIN, SPLIT (COTTER),1/4" x 1 3/4"
1шт.
22
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4-28NF STR lubr, 1 per row
1шт.
23
487698R1
SPRING
cushion, 1 per row
1шт.
24
480344R1
EYEBOLT,Spring, 5/8" - 11 x 299.70mm
BOLT, spring eye, 1 per row
1шт.
231-14410
NUT,5/8"-11, GB
NUT, LOCK, 5/8"-11, GB
1шт.
21660R1
HEADED PIN,1/2" x 1 11/16"
PIN, 1/2 x 1-11/16 znd std-hd
1шт.
187988
COTTER PIN,3/16" x 1 1/4"
PIN, SPLIT (COTTER), 3/16" x 1 1/4"
1шт.
21226R1
WASHER
1-9/32 x 2 x 11 ga znd
1шт.
25
519250R1
SLOTTED NUT
1-1/4-12 SLT hex., 1 per row
1шт.
20328R1
COTTER PIN,3/16" x 1 1/2"
3/16" x 1 1/2"
1шт.
26
472222R1
SLEEVE
oil seal, 1 per row
1шт.
27
472221R91
SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk
oil, 1 per row
1шт.
28
113095C1
CLAMP ASSY, colter, 1 per row
1шт.
29
113096C1
CLAMP, channel, 1 per row
1шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
3/4-10 x 6 znd hex-hd cap
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
280954
NUT,3/4"-10, G5
2шт.
30
478243R1
BOLT,1/2" - 13 x 3.6"
U-BOLT
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
31
17238R91
LUBE NIPPLE,65 Degree, 1/4" NPT x .73" lg
FITTING, 1/4-28 65 deg angle lub, in bearing housing, 1 per row
1шт.
549827R92
HUB CAP
1шт.
HUB ASSY, bearing and spindle, 1 per row, composed of (2) bearing 651817R1, (2) bearing 651818R91, (1) cap 518842R1, (1) fitting 17238R91, (1) housing, RH 541482R1, (1) nut 26963R1, (1) nut 519250R1, (1) pin 20328R1, (1) pin 137214, (1) seal 472221R91, (1) sleeve 472222R1, (1) spindle 541480R1
1шт.
Выбрано товаров: 67
