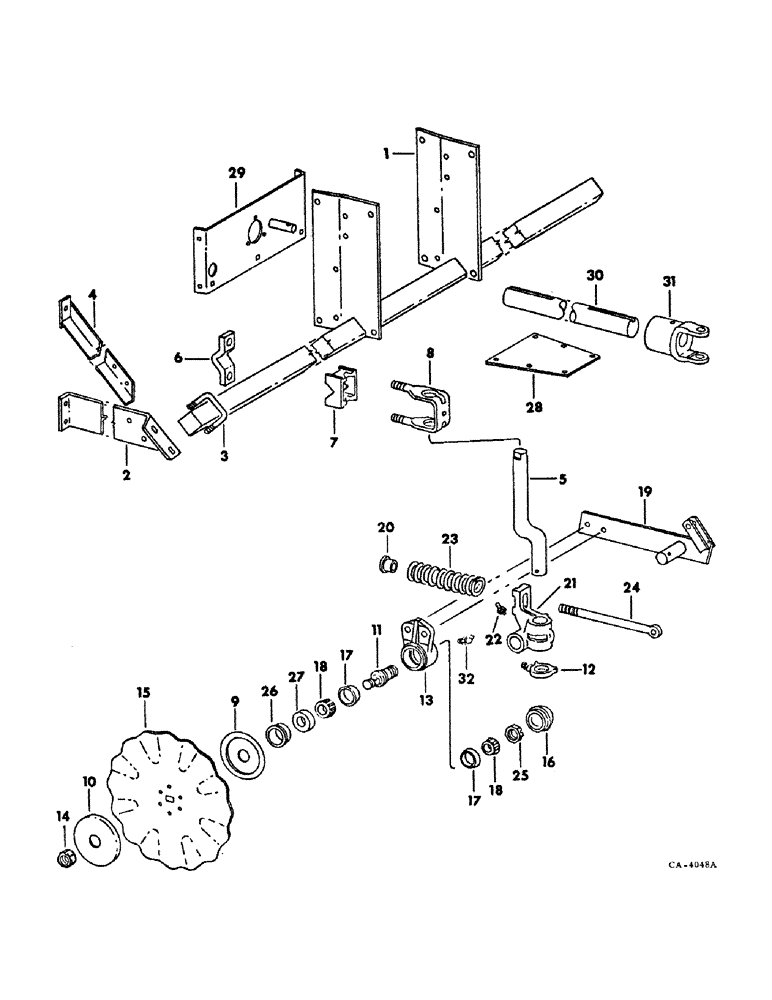

Запчасти Case IH 400 (A-088) - COU-TILL ATTACHMENT, USED WITH 4 ROW AND 6 ROW NARROW PLANTERS, MACHINES BUILT 1973 THROUGH 1975
№
Артикул
Название
Примечание
Количество
1
60817C1
TOOL BAR ASSY, 4 row planter
1шт.
1
60816C1
TOOL BAR ASSY, 6 row narrow planter
1шт.
161068R1
BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 znd hex.
4шт.
2
60813C1
PLATE, frame tie
2шт.
3
478243R1
BOLT,1/2" - 13 x 3.6"
U-BOLT
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
8шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
8шт.
4
60810C1
BRACE ASSY, frame
2шт.
18496R1
BOLT,Hex, 1/2"-13 x 1 1/2", G2
1/2 x 1-1/2 znd hex-hd mach
6шт.
120384
WASHER,1/2"
LOCK, 1/2"
6шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
6шт.
5
466944R1
ROD
SHANK, colter, 1 per row
1шт.
22947R1
COTTER PIN,5/16" x 2 1/4"
Pin, Split (Cotter), 5/16" x 2 1/4"
1шт.
6
525329R2
CLAMP
CAP, clamp, 1 per row
1шт.
7
525330R2
CLAMP
BLOCK, clamp, 1 per row
1шт.
8
525328R2
BOLT,3/4" - 10 x 7"
U-BOLT, 1 per row
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
280954
NUT,3/4"-10, G5
2шт.
9
523020R3
SUPPORT ASSY.
SUPPORT, inside blade, 1 per row
1шт.
10
523021R2
SUPPORT ASSY.
SUPPORT, outside blade, 1 per row
1шт.
11
541480R1
SPINDLE
colter, 1 per row
1шт.
12
523345R21
COLLAR CLAMP
COLLAR W/SET SCREW, 20080R1, stop, 1 per row
1шт.
20080R1
SET SCREW
1/2-13 x 1-1/4 znd sq-hd cup pt set
1шт.
13
541482R1
BEARING HOUSING,2.3275" ID x 3" OD x 2.44"
HOUSING, RH brg, 1 per row
1шт.
180185
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
SCREW, 1/2-13 x 2-1/2 znd hex-hd cap
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
14
26963R1
NUT,7/8"-14, G8
NUT, 7/8-14 znd SLT hex. type 8, 1 per row
1шт.
137214
COTTER PIN
1/8" x 1-3/4"
1шт.
15
60814C1
DISK HARROW
BLADE, 17-1/2 in. diameter colter disk, 1-3/4 inch fluted, 1 per row
1шт.
15
469191R3
BLADE
17 in. diameter rippled edge colter disk, 1 per row
1шт.
16
518842R1
CAP
hub, 1 per row
1шт.
19
492812R1
ARM
ASSY, colter, 1 per row
1шт.
20
487697R1
CENTERING RING
SPACER, spring assy, 1 per row
1шт.
21
492815R1
BUSHING
colter, 1 per row
1шт.
22
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4-28NF STR lubr, 1 per row
1шт.
23
487698R1
SPRING
cushion, 1 per row
1шт.
24
480344R1
EYEBOLT,Spring, 5/8" - 11 x 299.70mm
BOLT, spring eye, 1 per row
1шт.
21660R1
HEADED PIN,1/2" x 1 11/16"
PIN, 1/2 x 1-11/16 znd std-hd
1шт.
187988
COTTER PIN,3/16" x 1 1/4"
PIN, SPLIT (COTTER), 3/16" x 1 1/4"
1шт.
231-14410
NUT,5/8"-11, GB
NUT, LOCK, 5/8"-11, GB
1шт.
19471R1
PIN, SPLIT (COTTER),1/4" x 1 3/4"
1шт.
21226R1
WASHER
1-9/32 x 2 x 11 ga znd
1шт.
25
519250R1
SLOTTED NUT
1-1/4-12 SLT hex., 1 per row
1шт.
20328R1
COTTER PIN,3/16" x 1 1/2"
3/16" x 1 1/2"
1шт.
26
472222R1
SLEEVE
oil seal, 1 per row
1шт.
27
472221R91
SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk
oil, 1 per row
1шт.
28
548704R1
TIE, hitch lower
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8-16 x 3/4 znd sq-nk crg
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
29
546411R2
PLATE
hitch bearing mounting
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 znd hex-hd cap
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
30
60815C2
SHAFT, PTO drive extended
1шт.
31
60101C1
YOKE
& KEYWAY, PTO drive, required on PTO drive planters w/serial no. 20472 & below
1шт.
32
17238R91
LUBE NIPPLE,65 Degree, 1/4" NPT x .73" lg
FITTING, 1/4-28 65 deg angle lub, 1 per flow
1шт.
549827R92
HUB CAP
1шт.
HUB ASSY, bearing and spindle, 1 per row, composed of (2) bearing 651817R1, (2) bearing 651818R91, (1) cap 518842R1, (1) fitting 17238R91, (1) housing, RH 541482R1, (1) nut 26963R1, (1) nut 519250R1, (1) pin 20328R1, (1) pin 137214, (1) seal 472221R91, (1) sleeve 472222R1, (1) spindle 541480R1
1шт.
Выбрано товаров: 64
