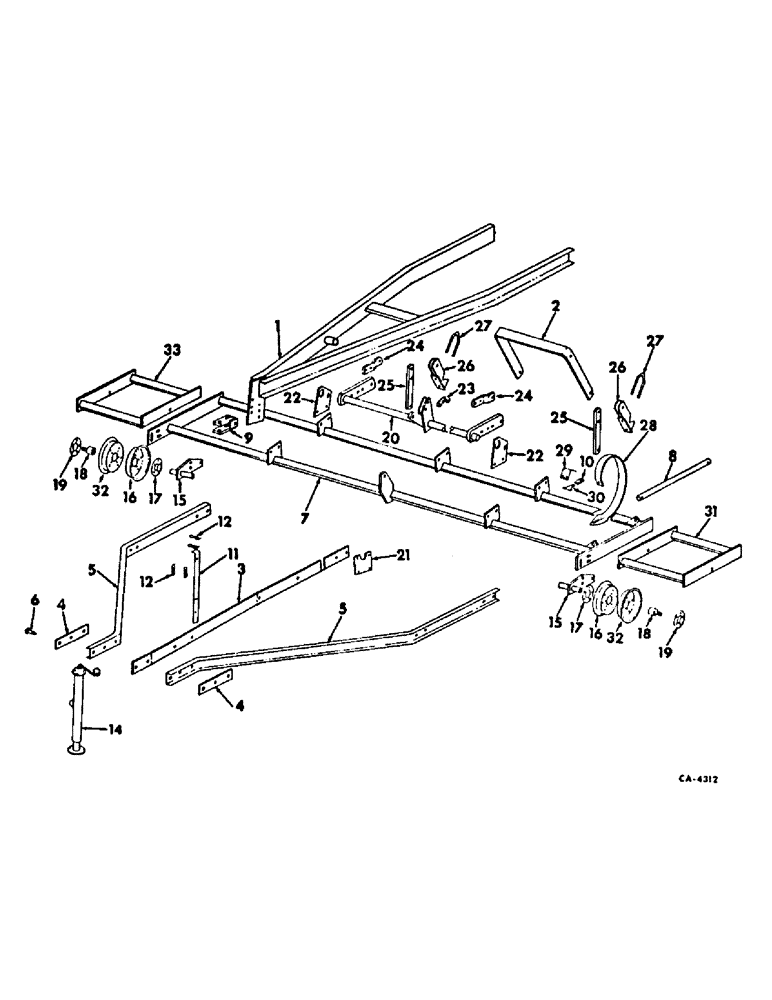

Запчасти Case IH 400 (A-086) - SPRING TOOTH HARROW ATTACHMENT, FOR 4 ROW AND 6 ROW NARROW

1

58102C1

HITCH ASSY, planter

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

2

58108C1

SPREADER, front rail

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

489560R2

SUPPORT, drawbar center rail

1шт.

4

489561R1

BAR, harrow drawbar pivot strap

2шт.

5

489562R1

CHANNEL, harrow drawbar rail

2шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

6шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

14шт.

6

489563R1

PIN, harrow drawbar

1шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

7

489564R1

BAR ASSY, tooth

1шт.

8

489570R1

ROD, tooth bar hinge

2шт.

18375R1

WASHER, 25/32 x 1-1/4 x 16 ga C-Z

4шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self opening cot.

4шт.

9

489571R1

CLEVIS ASSY

1шт.

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4 C-Z std-hd

1шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

10

489574R1

BAR, tooth angle

6шт.

11

489575R2

SUPPORT, hose

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8-16 x 1-3/4 C-Z sq-nk crg

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga znd

2шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 znd wing

2шт.

12

515030R1

CLAMP

hose

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

1шт.

13

(Not used in this application)

1шт.

14

60353C1

JACK ASSY, replaces 489623R91

1шт.

363082R1

SPACER,3/8" Pipe x .656"

3/8 x .656 STD pipe

2шт.

15

489576R1

ARM ASSY, gauge wheel

2шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8 x 7/16 C-Z hex-soc-hd ov-pt set

4шт.

18732R1

BOLT

3/4-10 x 2-1/4 C-Z sq-nk crg

4шт.

467750R1

WASHER

25/32 x 1-1/2 x 16 ga znd

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

16

465233R1

WHEEL

DISK LESS VALVE HOLE, wheel, 4 required when using harrow without planter, converts harrow wheels to dual type

2шт.

17

465235R1

RETAINER

HOUSING, brg open half, 4 required when using harrow without planter, converts harrow wheels to dual type

2шт.

18

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball, 4 required when using harrow without planter, converts harrow wheels to dual type

2шт.

19

465236R1

COVER

HOUSING, brg closed half, 4 required when using harrow without planter, converts harrow wheels to dual type

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap, 5 per housing

1шт.

464466R1

RETAINER

WASHER, 3/8 ext-tooth lock, 5 per housing

1шт.

120377

NUT,3/8" - 16, Gr 5

5 per housing 3/8"-16, G5

1шт.

20

489579R1

ROCKSHAFT ASSY

1шт.

22068R1

HEADED PIN,5/8" x 1 13/16"

PIN, 5/8 x 1-13/16 C-Z std-hd

2шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

22066R1

PIN, 3/4 x 1-9/16 C-Z std-hd

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

21

489584R1

SUPPORT

1шт.

22

489585R1

BAR, bearing

2шт.

23

489586R1

BEARING, rockshaft

2шт.

66584D

FITTING

3/16 STR drive type lub

3шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

24

489587R1

SUPPORT, strap

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

25

58109C1

BAR

2шт.

22104R1

PIN, 3/4 x 2-7/8 C-Z std-hd

2шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

26

58110C1

SUPPORT ASSY, bracket

2шт.

472396R1

BOLT,Hex, 3/4" - 10 x 2.24"

3/4-10 x 2-1/4 hex-hd mach

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 znd hex. jam

2шт.

27

58114C1

U-BOLT, support bracket

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

28

470963R2

SPRING

TOOTH, spring, 27 used for 4 row, 31 used for 6 row narrow

1шт.

29

484623R1

ANGLE

tooth clamp, one used per spring tooth

1шт.

30

484625R1

STRAP

tooth locator, one used per spring tooth

1шт.

180161

SCREW, 7/16-14 x 3-1/4 C-Z hex-hd cap, 21 used for 4 row, 25 used for 6 row narrow

1шт.

180162

SCREW,Hex, 7/16" - 14 x 3 1/2", Gr 5

7/16-14 x 3-1/2 C-Z hex-hd cap

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 used per screw 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex., one used per screw

1шт.

31

489593R1

BAR ASSY, tooth outer LH, 4 row

1шт.

31

489597R1

BAR ASSY, tooth outer LH, 6 row narrow

1шт.

32

465234R1

WHEEL

DISK W/VALVE HOSE, wheel, 4 required when using harrow without planter, converts harrow wheels to dual type

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap, 6 per disk

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 6 per disk 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

6 per disk 3/8"-16, G5

1шт.

33

489594R1

BAR ASSY, tooth outer RH, 4 row

1шт.

33

489598R1

BAR ASSY, tooth outer RH, 6 row narrow

1шт.
