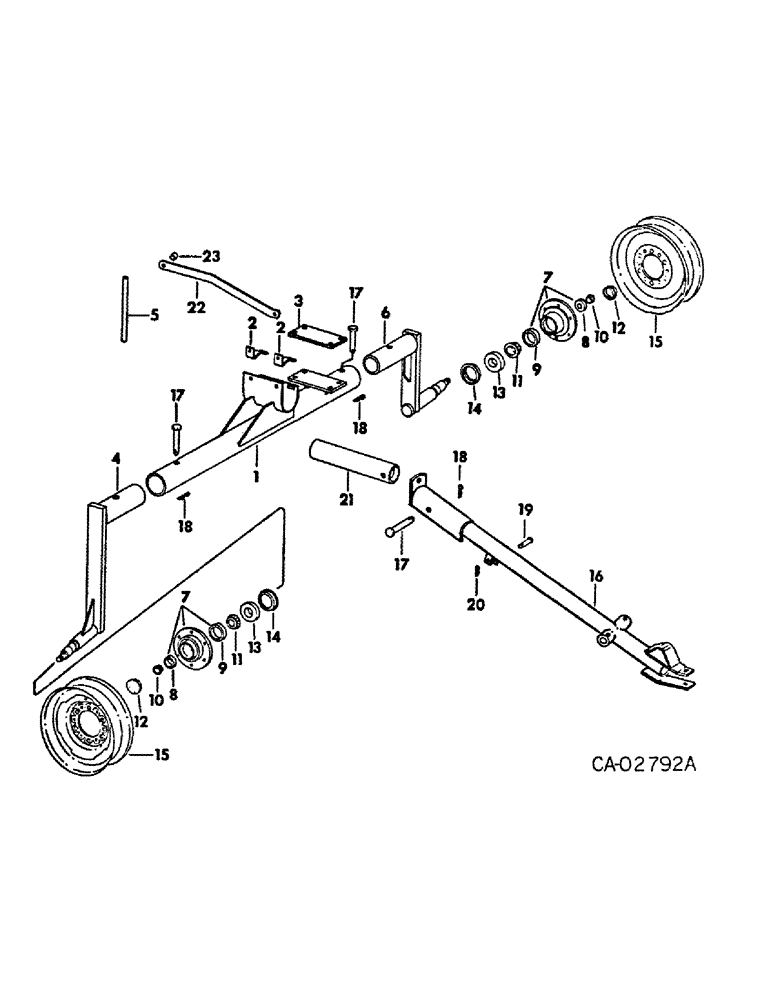

Запчасти Case IH 400 (A-084) - TRANSPORT ATTACHMENT, FOR 6 ROW WIDE AND 8 ROW

1

548752R1

FRAME ASSY, transport

1шт.

2

548758R1

CLAMP, bearing

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

548757R1

BAR, attaching, replaces 478243R1

1шт.

25526R1

NUT,1/2"-13, G8

1/2 PHC type 8

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

548759R1

AXLE ASSY, wheel long

1шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 SLT hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

5

548776R1

SPACER, lift rod

2шт.

6

548763R1

AXLE ASSY, wheel short

1шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 SLT hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

7

465496R11

HUB

ASSY, 6-bolt wheel

2шт.

8

663558R1

BEARING CUP

BEARING, wheel hub inner cup

2шт.

9

651817R1

BEARING CUP

BEARING, wheel hub outer cup

2шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, wheel hub inner cone

2шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, wheel hub outer cone

2шт.

12

663906R1

CAP

hub

2шт.

13

654674R91

OIL SEAL

wheel hub oil

2шт.

14

654675R1

RING

2шт.

15

463034R1

RIM

WHEEL ASSY, 14 in., recommend 8.25 x 14 tire

2шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

12шт.

16

57819C1

TONGUE ASSY, transport

1шт.

17

486220R1

PIN

transport tube pointed

3шт.

18

517843R1

COTTER PIN

PIN, quick attachable cot.

4шт.

19

22092R1

PIN

5/8 x 2-3/4 STD hd

1шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z cot.

1шт.

20

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

21

548773R2

TUBE ASSY, tongue extension

1шт.

22

548774R1

BRACE, hitch

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd cap

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znd hex. jam

1шт.

137156

WING NUT,1/2"-13

NUT, 1/2-13 znd wing

1шт.

23

548775R1

BUSHING

1шт.
