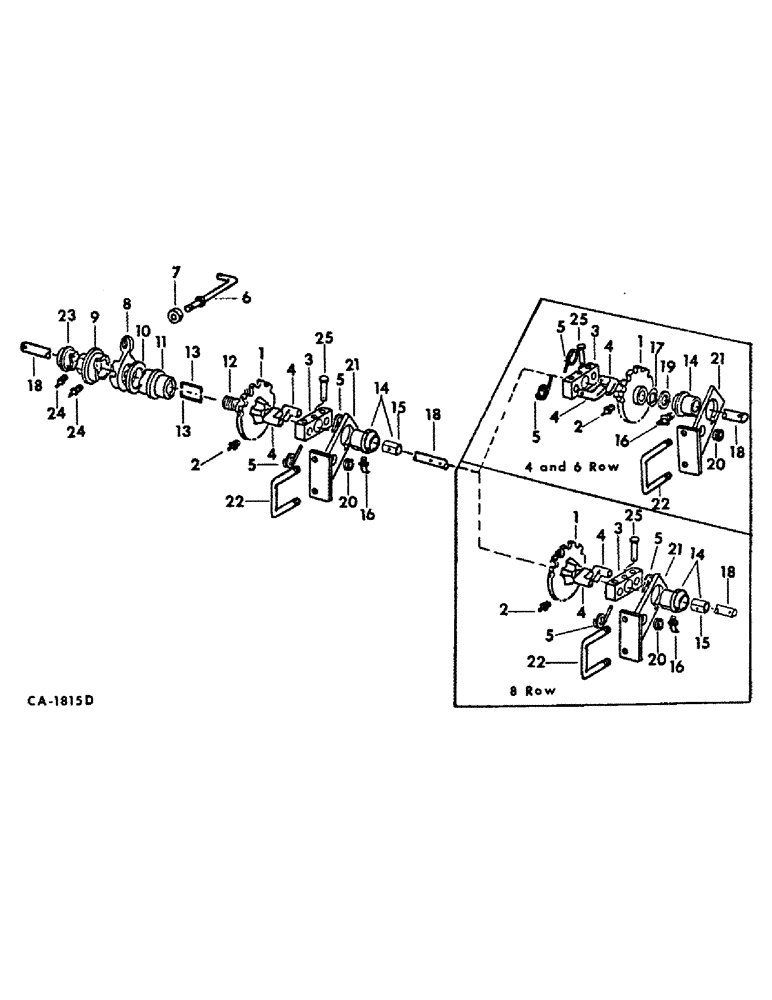

Запчасти Case IH 400 (A-010) - MAIN SEED HANDLING DRIVE

1

546431R1

SPROCKET ASSY.

SPROCKET, main drive, 12 teeth, 1 used per two wheels

1шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF2 STR lub, 1 used per two wheels

1шт.

3

472328R1

CARRIER

pawl, 1 used per two wheels

1шт.

4

472329R1

PAWL

drive sprocket, 2 per carrier

1шт.

137190

PIN,1/8" x 1 1/8"

1/8" x 1-1/8"

2шт.

5

472722R1

SPRING

wheel ratchet RH, 1 per wheel, 4 and 6 row

1шт.

5

472721R1

SPRING

wheel ratchet LH, 1 per wheel, 8 row

1шт.

6

472331R2

ROD

throwout

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

7

514547R11

COLLAR CLAMP

COLLAR w/SET SCREW, 142671

1шт.

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 C-Z sq-hd cup-pt set

1шт.

8

472332R3

CAM

clutch

1шт.

9

472333R3

BUSHING,2.165" ID x 3" OD x 1.93"

clutch

1шт.

10

479139R1

THRUST WASHER

clutch thrust

1шт.

11

113262C1

BLOCK DRIVER

DRIVE, clutch, serial no. 60299 and below, also order driver, 113263C1

1шт.

12

269182R1

SPRING

clutch

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

3шт.

13

PO23196

KEY

clutch

2шт.

14

481812R11

BEARING ASSY

w/BUSHING, 484060R1, shaft, 1 used per two wheels

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 znd self-opening cot.

1шт.

15

484060R1

BUSHING

shaft bearing

1шт.

16

19700R91

FITTING

3/16 45 deg angle lub, 1 per bearing

1шт.

17

481810R1

WASHER

keyed

1шт.

18

547958R2

SHAFT

main drive, 4 row wide

1шт.

18

547959R2

SHAFT

main drive, 4 row convertible & 6 row narrow, serial no. 60299 and below

1шт.

18

134091C1

SHAFT

main drive, 4 row convertible, 6 row narrow, serial no. 60300 and above

1шт.

18

57645C1

SHAFT

main drive, 4 row adjustable, serial no. 60299 and below

1шт.

18

137359C1

SHAFT

main drive, serial no. 60300 and above

1шт.

18

548716R1

SHAFT

main drive, 6 row wide, serial no. 60299 and below

1шт.

18

137362C1

SHAFT

main drive, 6 row wide, serial no. 60300 and above

1шт.

18

548715R1

SHAFT

main drive, 8 row narrow, serial no. 60299 and below

1шт.

18

137360C1

SHAFT

main drive, 8 row narrow, serial no. 60300 and above

1шт.

18

57660C1

SHAFT

main drive, 8 row narrow, serial no. 60299 and below

1шт.

18

137361C1

SHAFT

main drive, 8 row wide, serial no. 60300 and above

1шт.

19

589937R1

WASHER

wear

1шт.

20

548262R1

GROMMET

1 per support, serial no. 60299 and below

1шт.

20

137341C1

GROMMET

1 per support, serial no. 60300 and above

1шт.

21

546527R2

SUPPORT

ASSY, bearing, 1 used per two wheels

1шт.

22

478243R1

BOLT,1/2" - 13 x 3.6"

U-BOLT, 1 per support

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

23

113263C1

BLOCK DRIVER

DRIVER, sprocket bearing, serial no. 60299 and below, also order drive, 113262C1

1шт.

21875R1

WASHER

29/32 x 2 x 16 ga C-Z

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

24

66584D

FITTING

3/16 drive STR lub

2шт.

25

21835R1

HEADED PIN,5/16" x 1 3/4"

PIN, 5/16 x 1-3/4 C-Z std-hd, 1 used per two wheels

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.
