Запчасти Case IH 400 (A-082) - HYDRAULIC OIL RESERVOIR, NO. 5 COMBINED TILLAGE HITCH

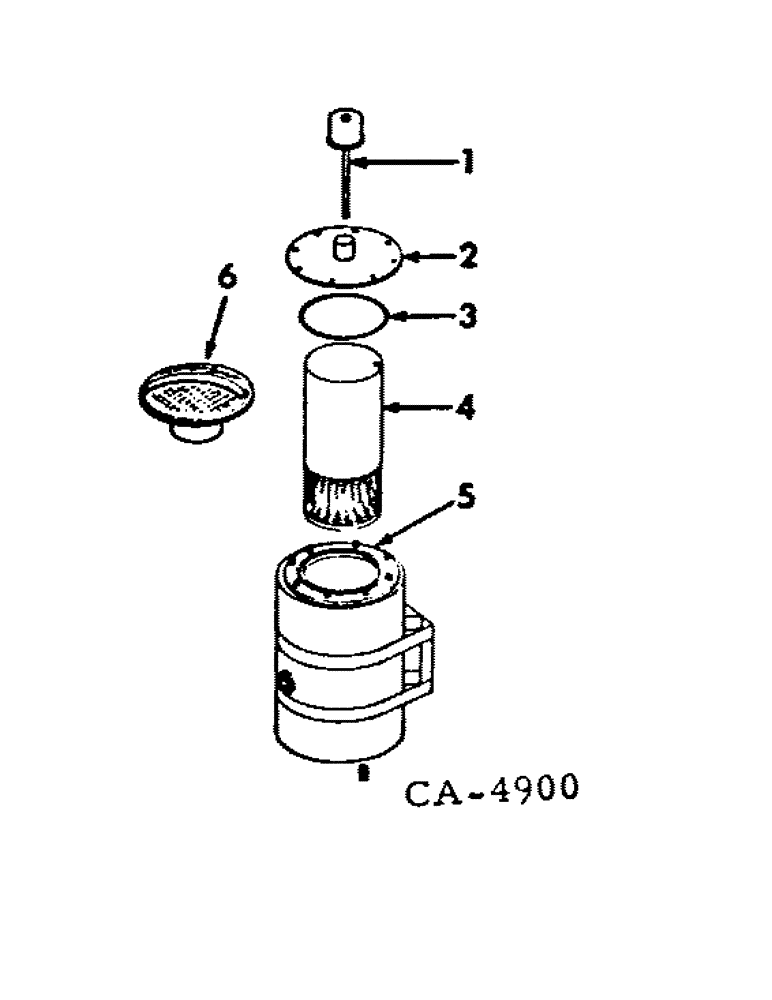

Схема запчастей Case IH 400 - (A-082) - HYDRAULIC OIL RESERVOIR, NO. 5 COMBINED TILLAGE HITCH
2
3
6
5
1
4

Артикул

Название

Примечание

Количество

156395C91

RESERVOIR

ASSY, hydraulic oil

1шт.

1

567521R91

CAP

BREATHER CAP AND DIPSTICK ASSY

1шт.

2

163646C91

COVER

ASSY, reservoir

1шт.

126177

WING NUT

NUT, 1/4-20 znd wing

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

3

22760R1

O-RING,6.725" ID x 7.275" OD x 0.275"

6-3/4 x 7 x 1/4

1шт.

4

528493R3

HYDRAULIC OIL FILTER

ELEMENT, oil reservoir filter, replaces 386120R91

1шт.

5

BODY, reservoir, (not serviced separately) order 156395C91

1шт.

6

386121R92

VALVE

ASSY, relief

1шт.

Выбрано товаров: 9
