Запчасти Case IH 400 (A-080[B]) - MOUNTING COMPLETING PACKAGE, TO ADAPT NO. 5 COMBINED TILLAGE HITCH TO 153 SERIES 4 ROW WIDE AND 6 ROW NARROW AND 163 SERIES 4 ROW CULTIVATORS, NOT FOR USE WITH CATEGORY 1 COMPLETING PACKAGE

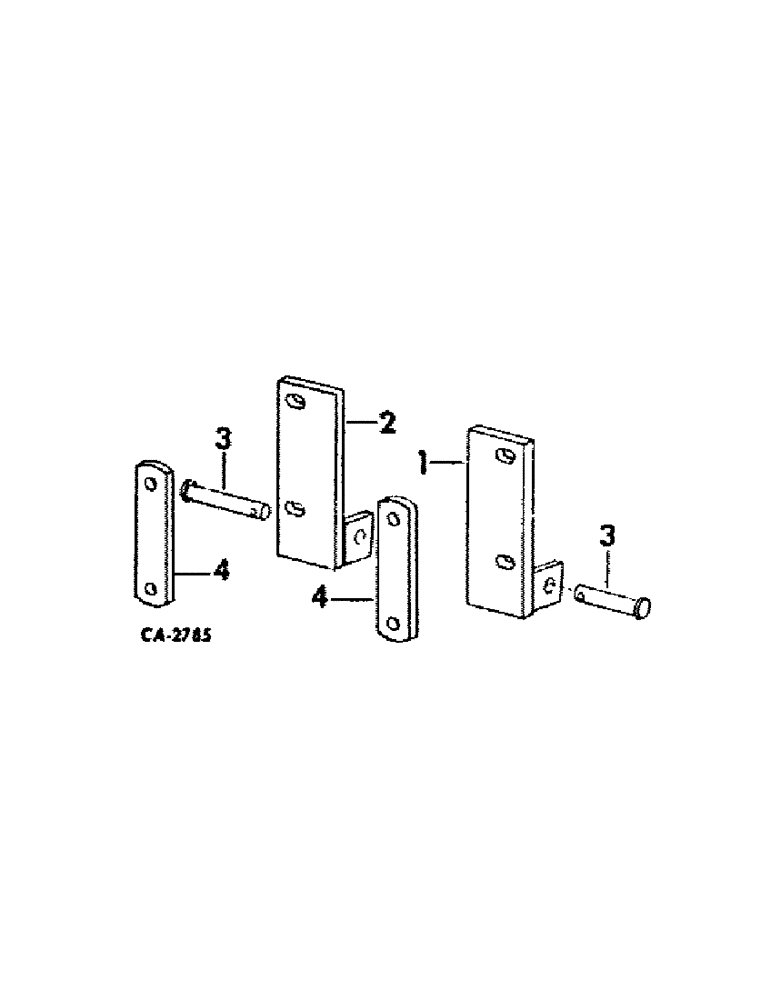

Схема запчастей Case IH 400 - (A-080[B]) - MOUNTING COMPLETING PACKAGE, TO ADAPT NO. 5 COMBINED TILLAGE HITCH TO 153 SERIES 4 ROW WIDE AND 6 ROW NARROW AND 163 SERIES 4 ROW CULTIVATORS, NOT FOR USE WITH CATEGORY 1 COMPLETING PACKAGE
2
3
3
4
1
4

Артикул

Название

Примечание

Количество

1

547287R1

BRACKET ASSY, LH

1шт.

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

SCREW, 3/4-10 x 6-1/2 znd hex-hd cap

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

2

547288R1

BRACKET ASSY, RH

1шт.

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

SCREW, 3/4-10 x 6-1/2 znd hex-hd cap

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

3

22063R1

PIN, 7/8 x 4-1/4 znd std-hd

2шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

4

543008R1

STRAP, hitch

2шт.

Выбрано товаров: 13
