Запчасти Case IH 400 (A-079) - NO. 5 COMBINED TILLAGE HITCH, FOR 4 ROW AND 6 ROW NARROW

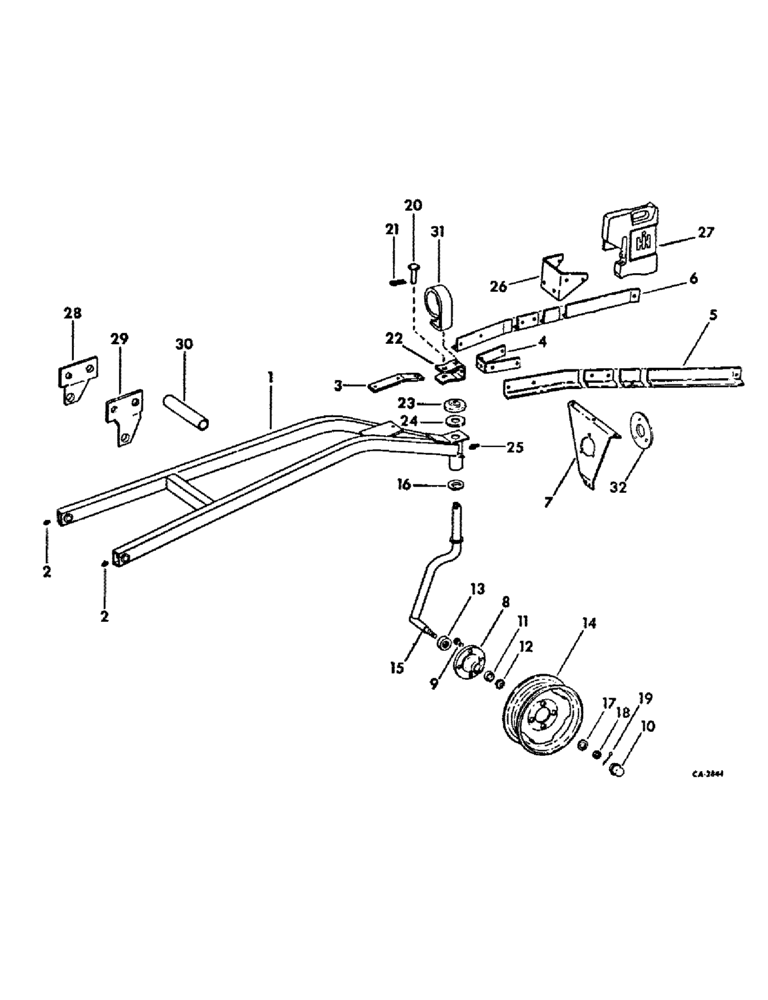

Схема запчастей Case IH 400 - (A-079) - NO. 5 COMBINED TILLAGE HITCH, FOR 4 ROW AND 6 ROW NARROW
29
22
18
13
1
9
5
3
24
27
10
25
7
2
15
2
31
30
28
8
16
23
21
11
4
20
17
12
19
26
14
6
32

Артикул

Название

Примечание

Количество

1

480637R91

FRAME ASSY, main

1шт.

2

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive-type STR lub, in pivot spacer

2шт.

3

480651R1

BRACKET, hitch

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

4

549524R1

BRACKET, hitch clevis

1шт.

5

549527R1

ANGLE, tongue RH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 znd hex-hd cap type 8

1шт.

21905R1

WASHER

21/32 x 1-3/4 x 3 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

1шт.

6

549526R1

ANGLE, tongue LH

1шт.

21149R1

BOLT, 1/2 x 9 znd hex-hd mach

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 znd hex-hd cap type 8

1шт.

21905R1

WASHER

21/32 x 1-3/4 x 3 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

7

549525R1

PLATE, tongue brace

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

472220R21

HUB

w/SET SCREW, wheel

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 STR lubrication

1шт.

9

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

conical head wheel

4шт.

10

651194R1

CAP

wheel hub

1шт.

11

651814R1

BEARING CUP

BEARING, outer cup

1шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

1шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

13

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

ASSY, inner

1шт.

14

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in.

1шт.

15

480689R91

AXLE ASSY, caster wheel, includes ref. nos. 16, 17, 18 & 19

1шт.

16

462997R1

WASHER

wear

1шт.

17

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

18

69442D

NUT

3/4-16 SLT hex.

1шт.

19

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

20

480791R1

PIN

hitch, supplied w/planter

1шт.

21

520175R1

CLIP

PIN, quick attachable cot., supplied w/planter

1шт.

22

484505R2

YOKE

CLEVIS, hitch bracket, supplied w/planter

1шт.

102639

NUT,5/8"-11, G5

2шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

480659R1

CAP, axle

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

24

480660R1

WASHER, caster wheel rubber

1шт.

25

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, In caster wheel brg pipe 1/8"-27 x .66 lg

1шт.

26

480661R1

CHANNEL, weight

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

27

383392R1

WEIGHT

67 pounds, (as required)

3шт.

105608

NUT

1/2-13 sq.

1шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 hex-hd cap

1шт.

28

480658R1

PLATE, upper hitch point RH

1шт.

29

480657R1

PLATE, upper hitch pivot LH

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

SCREW, 3/4-10 x 5-1/4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

30

53924D

SPACER, upper hitch point plate

1шт.

18861R1

BOLT,Hex, .100 x 5.5, G2

1-8 x 5-1/2 znd hex-hd mach

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

9849633

NUT,1"-8, G5

1шт.

31

549961R1

GUIDE, hydraulic hose

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

32

549805R1

RING

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

3шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

Выбрано товаров: 78
