Запчасти Case IH 400 (A-078) - HYDRAULIC OIL RESERVOIR, DUPLEX HITCH

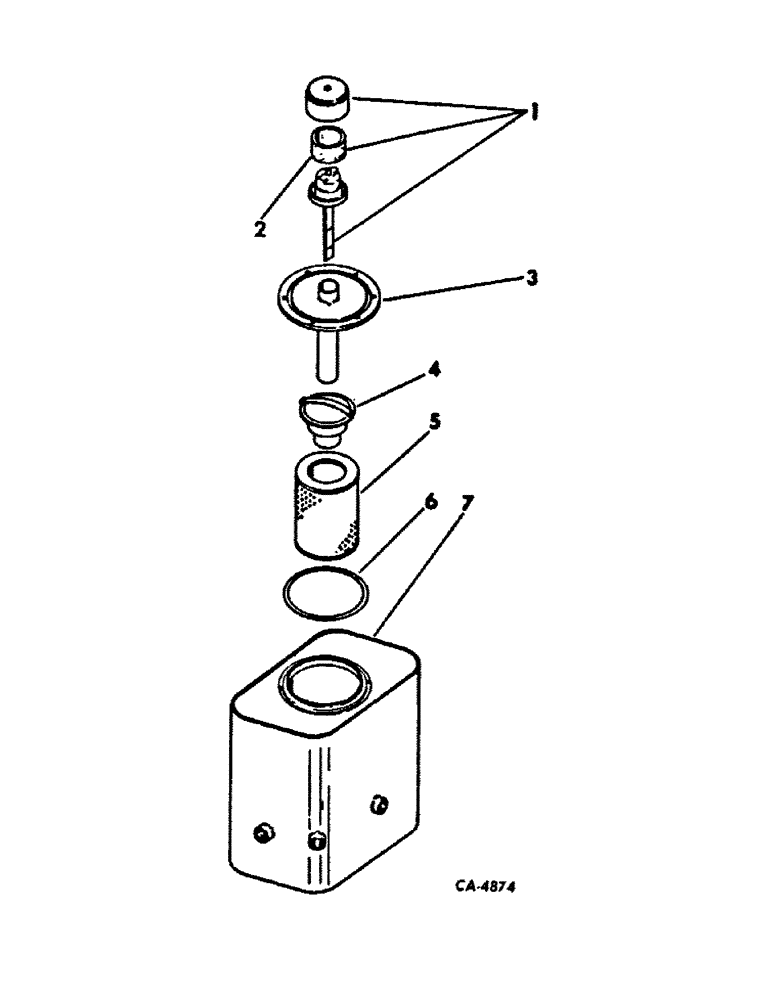

Схема запчастей Case IH 400 - (A-078) - HYDRAULIC OIL RESERVOIR, DUPLEX HITCH
7
4
2
6
1
5
3

Артикул

Название

Примечание

Количество

160993C91

RESERVOIR ASSY, hydraulic oil

1шт.

1

167461C91

CAP

ASSY, reservoir

1шт.

2

167852C1

FILTER, reservoir cap

1шт.

3

172004C1

COVER, reservoir top

1шт.

4

386121R92

VALVE

reservoir relief

1шт.

5

528493R3

HYDRAULIC OIL FILTER

ELEMENT, oil reservoir filter, replaces 386120R91

1шт.

6

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

5-3/4 x 6-1/4 x 1/4, top cover

1шт.

7

BODY, oil reservoir, (not serviced separately) order 160993C91

1шт.

Выбрано товаров: 8
