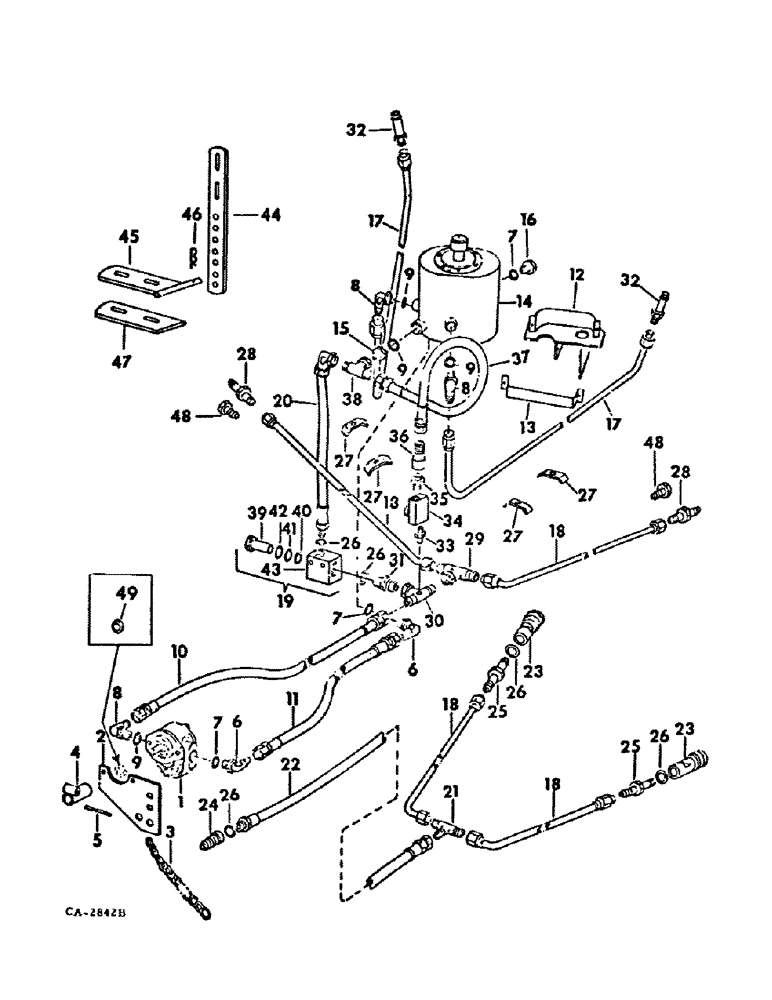

Запчасти Case IH 400 (A-076) - HYDRAULIC CONNECTIONS, DUPLEX HITCH, FOR 4 ROW AND 6 ROW

1

142482C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, replaces pump, 60584C91 by also ordering 140584C1 coupling assy, for components see list of parts under details of hydraulic pump

1шт.

2

549811R1

PLATE, pump mounting, serial no. 9048 & below

1шт.

2

56773C1

PLATE

pump mounting, serial no. 9049 & above

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

549806R1

CHAIN, retaining, serial no. 90498 & below

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

483303R1

LOCK NUT

5/16-18 C-Z flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .688 x .344 x 16 ga C-Z

1шт.

4

549319R91

COUPLING

ASSY, pressed, for use w/pump, 549531R91

1шт.

4

60582C1

COUPLING ASSY, serial no. 60299 and below, for use w/pump, 60584C91

1шт.

4

140584C1

COUPLING

ASSY, order 1279355C91, serial no. 60300 and above, for use w/pump, 142482C91

1шт.

4

149504C92

COUPLING

ASSY, dual modules, twist type, order coupling, 1279355C91, composed of

1шт.

1261263C1

COLLAR

1шт.

1261262C1

CAP WASHER

COVER, collar

1шт.

HUB, (NSS)

1шт.

1261261C1

PIN

1шт.

1268289C1

PRODUCT GRAPHIC

caution

1шт.

383878R1

SNAP RING,1.25, Int, #125

RING, 1.388 int ret

1шт.

4

1279355C91

COUPLING

ASSY, dual modules, push pull type, replaces 140584C1 and 149504C92, composed of

1шт.

21505R1

BALL,1/2" Dia, Stainless

1/2 grade ST100 metal

3шт.

1279357C1

COLLAR

1шт.

HUB, (NSS)

1шт.

279762R1

SNAP RING,#168, Ext

RING, 1.560 ext ret

1шт.

1279356C1

SPRING

1шт.

180141

SPRING,Hex, 7/16" - 14 x 5/8", Gr 5

SCREW, 7/16-14 x 5/8 znd hex-hd cap

1шт.

180146

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, 7/16-14 x 1-1/8 znd hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

5

631976R91

PIN

ASSY, lock, used only with couplings, 60582C1, 140504C92 and 549319R91

1шт.

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X

1шт.

6

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1-5/16-12 C-Z 37 deg hyd flared tube adj STR THD 90 deg

2шт.

7

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD tube

3шт.

8

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 C-Z 37 deg hyd flared tube adj STR THD 90 deg

3шт.

9

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

4шт.

10

549353R1

HOSE ASSY, 3/4 ID x 61 in. hyd pressure

1шт.

11

549520R1

HOSE

ASSY, 1 in. ID x 65 in. hydraulic suction

1шт.

12

549309R1

PLATFORM ASSY, reservoir mounting

1шт.

13

549335R1

BAND, tie down

1шт.

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

SCREW, 3/8 x 5 znd hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

14

160993C91

RESERVOIR ASSY, hydraulic oil, for components see list of parts under details of hydraulic oil reservoir

1шт.

15

573206R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 7/8-14 C-Z 37 deg hyd flared tube x 1-1/16-12 STR THD o-ring boss reducer

1шт.

16

9410363

PLUG

1-5/16-12 C-Z STR THD o-ring boss

1шт.

17

549348R1

TUBE, return line

2шт.

18

549345R1

TUBE, pressure line

4шт.

19

549528R93

VALVE

ASSY, relief

1шт.

20

548739R1

HOSE, Serial Range: relief-reservoir

1шт.

21

9402983

TEE,7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd flared tube three way, remote cylinder

1шт.

22

546822R1

HOSE ASSY, 1/2 ID x 90 in. hydraulic

1шт.

23

395150R91

COUPLING, QUICK, FEM

COUPLER, self sealing female quick attachable

2шт.

24

395149R1

QUICK MALE COUPLING

COUPLER, self sealing male quick attachable

1шт.

25

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, return line

2шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

5шт.

27

549521R1

CLAMP, tubing

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

28

9403217

HYD CONNECTOR,7/8"-14, 37 Degree

UNION, 7/8-14 C-Z 37 deg hyd flared tube

2шт.

29

549529R1

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Fem Sw Br

special, 1-1/16 x 7/8 x 7/8

1шт.

30

539791R1

TEE

special

1шт.

31

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

UNION, 1-1/16 to 7/8 reducer

1шт.

32

549960R1

TUBE ASSY, connecting

2шт.

33

443979

HYD CONNECTOR

NIPPLE, 1/4-18 znd auto. pipe

1шт.

34

539794R91

VALVE

ASSY, control

1шт.

35

192467H1

NIPPLE, 1/2 to 1/4 male pipe reducing

1шт.

36

9402749

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, Fem Pipe

CONNECTOR, 1/2-14 37 deg hyd flared internal pipe thread

1шт.

37

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

ASSY, 1/2 ID x 18-1/4 in. hyd

1шт.

38

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

7/8-14 C-Z 37 deg hyd flared tube swivel

1шт.

39

396729R93

VALVE

ASSY, pilot relief, 2300 PSI, 1000 RPM PTO

1шт.

40

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, class 6

1шт.

41

378985R2

BACK-UP RING

relief valve backup

1шт.

42

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

43

403187R1

BLOCK

relief valve

1шт.

44

56774C1

BRACKET

adjusting, 1000 RPM PTO, serial no. 9049 & above

1шт.

M906

HEADED PIN,7/16" x 1 1/8"

PIN, 7/16 x 1-1/8 std-hd

2шт.

NLS

NO LONGER SERVICED

.469 x .922 x .051 znd

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

45

56775C91

ANGLE

STRAP ASSY, serial no. 9049 & above, 1000 RPM PTO

1шт.

46

520174R1

CLIP, SPRING

PIN, 3/16 quick attachable cot. 1000 RPM PTO

1шт.

47

56776C1

BAR

STRAP, serial no. 9049 & above, 1000 RPM PTO

1шт.

443156

SCREW, 1/2-13 x 4-1/2 znd hex-hd cap

2шт.

495-11053

WASHER,1/2", SAE

.531 x 1.062 x .074 C-Z

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

48

478754R1

ADAPTER

REDUCER, Serial Range: 5/8-1/2

1шт.

49

60583C1

WASHER

15/32 x 1-3/16 x 3/16, serial no. 60299 and below, for use w/pump, 60584C91

1шт.

50

60580D

WASHER

serial no. 60300 and above, for use w/pump, 60584C91

1шт.
