Запчасти Case IH 400 (A-008) - BLOWER DRIVE, BELT DRIVEN

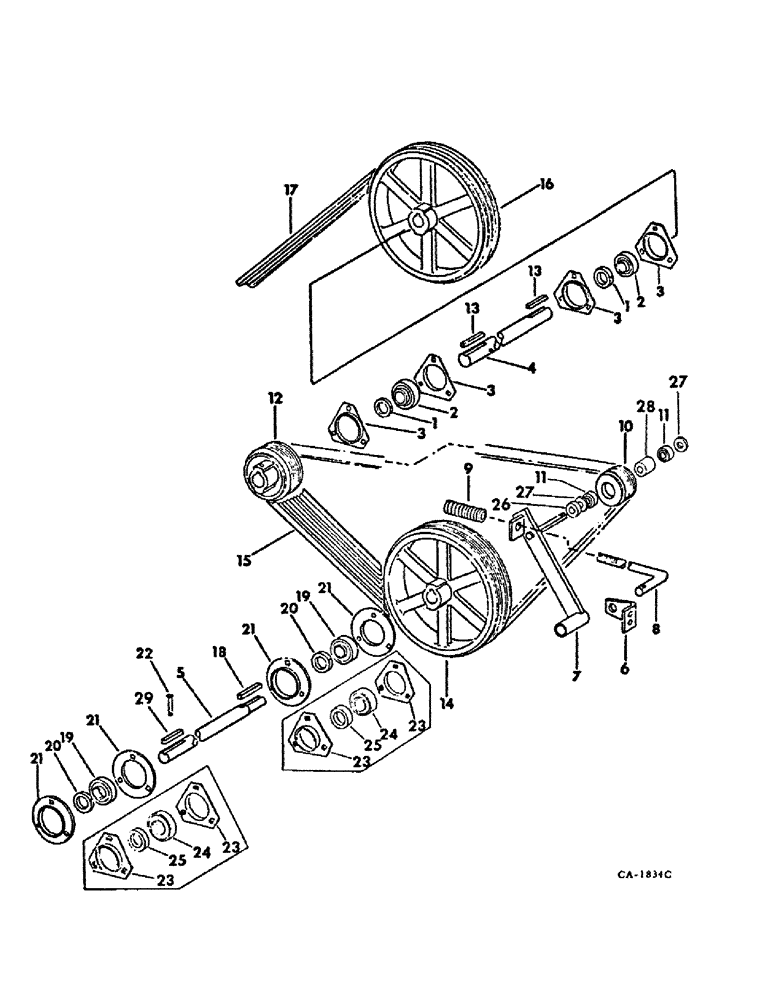

Схема запчастей Case IH 400 - (A-008) - BLOWER DRIVE, BELT DRIVEN
2
9
27
24
13
1
6
21
17
4
19
14
24
22
25
11
3
25
16
18
27
11
29
21
15
12
1
8
28
13
20
23
23
21
3
7
10
5
21
2
9
26
3
23
3
23
20

Артикул

Название

Примечание

Количество

1

547010R11

CLAMP

COLLAR w/SET SCREW, bearing, serial no. 38311 and below

2шт.

1

557115R11

COLLAR

COLLAR w/SET SCREW, bearing, serial no. 38312 and above

2шт.

2

546540R91

BEARING ASSY,1.1255" ID x 55 mm OD x 1.03125, 0.5118"

W/O LOCKING COLLAR, serial no. 38311 and below

2шт.

2

455960R91

BALL BEARING

BEARING W/O LOCKING COLLAR, serial no. 38312 and above

2шт.

3

546896R1

FLANGE

bearing, serial no. 38311 and below

4шт.

3

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

bearing, serial no. 38312 and above

4шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 znd hex-hd mach

1шт.

19417R1

BOLT

3/8 x 1 CDP sq-nk crg

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

4

546457R1

SHAFT

rear fan drive

1шт.

5

546422R2

SHAFT

front drive, serial no. 20472 and below

1шт.

5

60183C2

SHAFT

front drive, serial no. 20473 and above

1шт.

5

60815C2

SHAFT, front drive, machines built 1973 through 1975 with Cou-Till attachment

1шт.

6

546423R1

ANCHOR

belt tightener

1шт.

21860R1

BOLT, 3/8 x 7/8 znd sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

546424R2

ARM

ASSY, pivot belt tightener, serial nos. 26535 and below

1шт.

7

60076C1

ARM

ASSY, pivot belt tightener, serial nos. 26536 and above

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

1шт.

8

546429R3

ROD

belt tightener

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga znd

3шт.

9

V679

VALVE SPRING

SPRING

1шт.

10

472178R1

PULLEY

idler, serial nos. 26535 and below

1шт.

10

60271C91

PULLEY

w/TWO BEARINGS, 582010R91 and spacer, 60078C1, idler, serial nos. 26536 and above

1шт.

11

ST485

BALL BEARING,0.828" ID x 1.6535" OD x 0.5906"

BEARING, idler ball, serial nos. 26535 and below

2шт.

11

582010R91

BEARING ASSY,0.625" ID x 1.375" OD x 0.4331"

idler ball, serial nos. 26536 and above

2шт.

12

59142C91

PULLEY

w/SET SCREW, 128228, 8 groove

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 znd sq-hd cup-pt set

1шт.

13

479370R1

KEY,1/4" Sq x 2", Par

1/4 x 2 sq parallel, serial no. 28106 and below

2шт.

13

575824R1

KEY,1/4" Sq x 3", Par

1/4 x 3 sq parallel, serial no. 28107 and above

2шт.

14

59143C91

PULLEY

w/SET SCREW, 128228, 8 groove, for 540 RPM PTO

1шт.

14

60045C91

PULLEY

w/SET SCREW, 128228, 8 groove, for 1000 RPM PTO

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 znd sq-hd cup-pt set

1шт.

15

546499R1

V-BELT,0.19" W, 8 Ribs

for 540 RPM PTO 0.19" W, 8 Ribs

1шт.

15

546500R1

V-BELT,0.19" W, 8 Ribs

for 1000 RPM PTO 0.19" W, 8 Ribs

1шт.

16

59141C91

PULLEY

w/SET SCREW, 128228, 4 groove

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 znd sq-hd cup-pt set

1шт.

17

546372R1

V-BELT,0.19" W, 4 Ribs

0.19" W, 4 Ribs

1шт.

18

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1-1/2 sq parallel

1шт.

19

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

W/O LOCKING COLLAR, serial no. 1608 and above

2шт.

20

557115R11

COLLAR

COLLAR w/SET SCREW, serial no. 1608 and above

2шт.

21

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

bearing, serial no. 1608 and above

4шт.

21860R1

BOLT, 3/8 x 7/8 znd sq-nk crg

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

22

478043R1

HEADED PIN,5/16" x 2 3/8"

PIN, 5/16 x 2-3/8 std-hd heat treated

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

23

546896R1

FLANGE

bearing, serial no. 1607 and below

4шт.

19417R1

BOLT

3/8 x 1 CDP sq-nk crg

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

24

546540R91

BEARING ASSY,1.1255" ID x 55 mm OD x 1.03125, 0.5118"

W/O LOCKING COLLAR, serial no. 1607 and below

2шт.

25

547010R11

CLAMP

COLLAR w/SET SCREW, bearing, serial no. 1607 and below

2шт.

26

650338R1

BUSHING

SPACER, idler shaft

1шт.

27

548509R1

SPACER

idler shaft

2шт.

28

60078C1

SPACER

idler bearing

1шт.

29

479370R1

KEY,1/4" Sq x 2", Par

1/4 x 2 sq parallel, serial no. 28106 and below

1шт.

29

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 2-1/2 sq parallel, serial no. 28107 and above

1шт.

Выбрано товаров: 67
