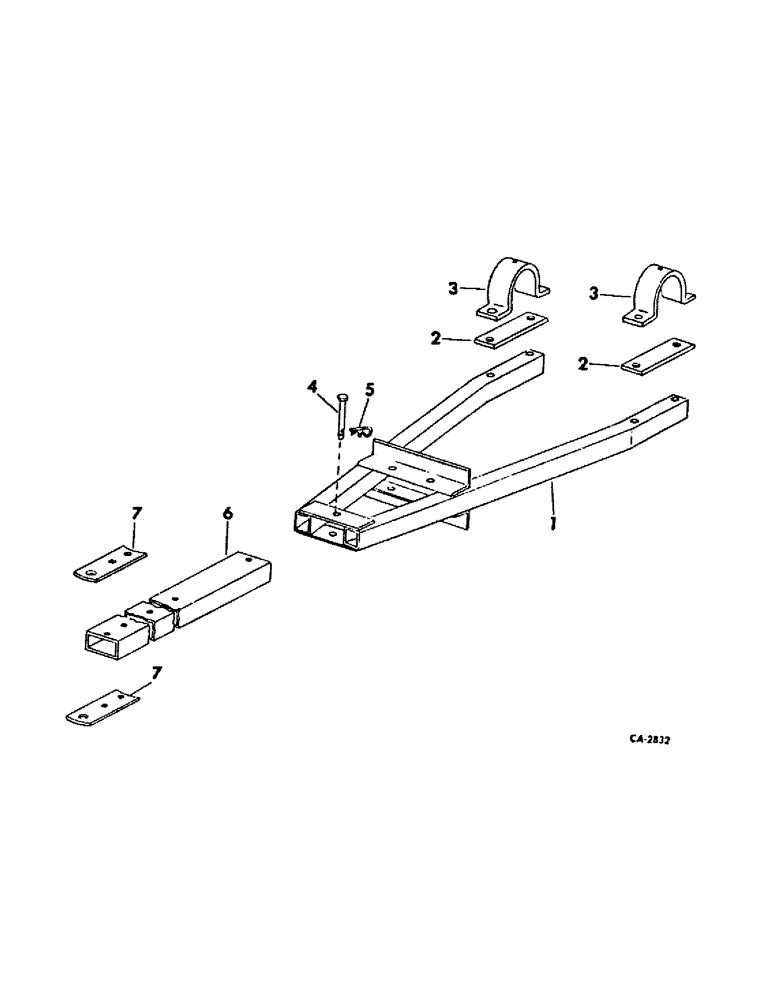

Запчасти Case IH 400 (A-074) - DUPLEX REAR HITCH

1

549305R1

SUPPORT ASSY, auxiliary drawbar

1шт.

2

549350R2

SPACER, drawbar support

2шт.

3

58458C1

CAP, wheel shaft bearing, will work for 543185R1

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

24478R1

HEADED PIN,5/8" x 3 1/4"

PIN, 5/8 x 3-1/4 znd STD hd

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

4

490048R1

PIN

5/8 diameter pointed

1шт.

5

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

6

549337R1

TUBE, auxiliary drawbar

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8-16 x 3/4 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

7

549351R1

BAR, hitch

2шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 znd hex-hd cap

1шт.

271732

SWASH PLATE,Hex, 5/8" - 11 x 4 1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

2шт.

546887R2

CLUTCH

DRIVER, clutch, serial no. 60299 and below

1шт.

113260C1

CLUTCH

DRIVER, clutch, serial no. 60300 and above

1шт.

546889R3

CLUTCH

driven, serial no. 60299 and below

1шт.

113261C1

CLUTCH

driven, serial no. 60300 and above

1шт.

472721R1

SPRING

wheel ratchet

2шт.

546484R1

ARM

ASSY, drive chain tightener

1шт.
