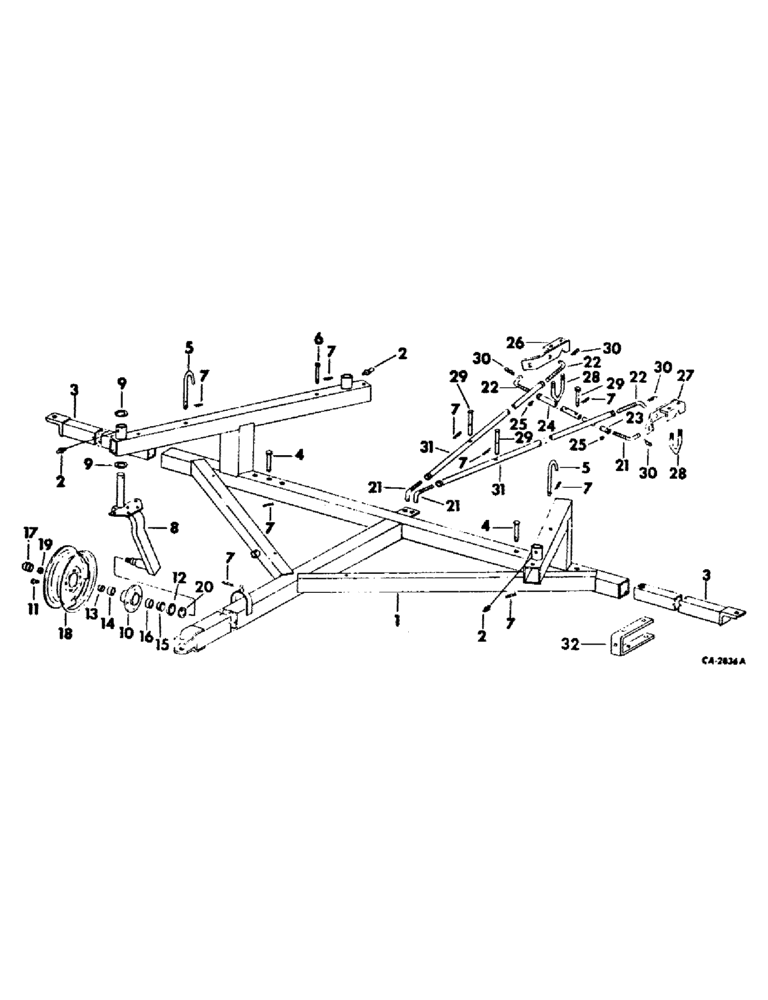

Запчасти Case IH 400 (A-073) - DUPLEX MAIN HITCH, FOR 4 ROW AND 6 ROW NARROW

1

549533R2

FRAME ASSY, main

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

3

549322R1

TUBE ASSY, extension

2шт.

4

486220R1

PIN

7/8 diameter pointed

2шт.

5

549349R1

PIN, 5/8 diameter front wheels lockout

2шт.

6

549813R1

PIN, wheel lockout rear

1шт.

7

517843R1

COTTER PIN

PIN, quick attachable cot.

9шт.

8

549302R1

AXLE ASSY, wheel

3шт.

9

462997R1

WASHER

wear

6шт.

193244

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

3шт.

10

472220R21

HUB

w/SET SCREW, wheel

3шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 straight lub

3шт.

11

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

12шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

3шт.

12

472222R1

SLEEVE

oil wear

3шт.

13

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

3шт.

13

651815R91GV

BEARING CONE

Value, Cone Bearing

3шт.

14

651814R1

BEARING CUP

BEARING, outer cup

3шт.

15

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

3шт.

16

651817R1

BEARING CUP

BEARING, inner cup

3шт.

17

651194R1

CAP

wheel brg hub

3шт.

18

463036R1

WHEEL (STEERING)

WHEEL, 14 in., recommend 8.00-14 tire

3шт.

19

69442D

NUT

3/4-16 SLT hex.

3шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

3шт.

20

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

3шт.

21

490057R1

ROD

connecting

3шт.

426899

NUT,Jam, 1"-8, G5

1-8 znd hex. jam

3шт.

22

490058R1

ROD

connecting

3шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

23

490059R1

PIPE ASSY, inside

1шт.

24

490062R1

PIPE ASSY, outside

1шт.

25

66584D

FITTING

3/16 STR drive type lub

2шт.

26

487528R2

SUPPORT ASSY, LH

1шт.

27

487529R2

SUPPORT ASSY, RH

1шт.

28

479885R1

U-BOLT

2шт.

280954

NUT,3/4"-10, G5

4шт.

29

487492R1

PIN, handle

3шт.

30

473865R91

LINCH PIN

PIN, quick attachable cot.

4шт.

31

549325R1

PIPE ASSY, stabilizing

2шт.

32

119809C1

CLEVIS, chain retainer

2шт.

271732

SWASH PLATE,Hex, 5/8" - 11 x 4 1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.
