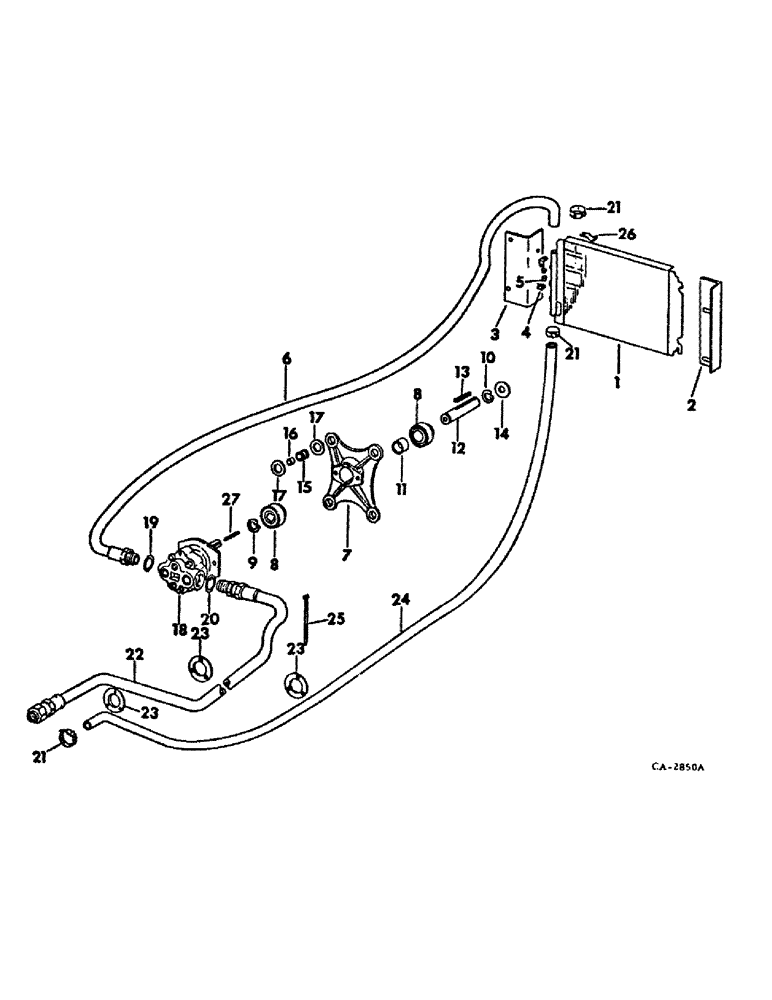

Запчасти Case IH 400 (A-071) - HYDRAULIC DRIVEN BLOWER PARTS

1

387322R92

COOLER ASSY.

COOLER ASSY, oil, 4 row wide and 6 row narrow, serial no. 9048 and below

1шт.

1

533233R1

OIL RESERVOIR

COOLER ASSY, oil, 4 and 6 row, order oil cooler, 68437C1 and bracket, 125479C1, serial no. 9049 and above

1шт.

1

387323R91

COOLER ASSY, oil, 8 row, order oil cooler, 68437C1 and bracket, 125479C1, serial no. 9049 and above

1шт.

1

68437C1

COOLER

ASSY, oil, serial no. 9049 and above

1шт.

2

549346R1

BRACKET, oil cooler mounting LH, 4 row wide and 6 row narrow, serial no. 9048 and below

1шт.

2

56770C2

BRACKET, oil cooler mounting, 4 and 6 row, used only w/oil cooler, 533233R1, serial no. 9049 and above

1шт.

2

56772C2

BRACKET, oil cooler mounting, 8 row, used only w/oil cooler, 387323R91, serial no. 9049 and above

1шт.

2

125749C1

BRACKET

oil cooler mounting, used only with oil cooler, 68437C1, serial no. 9049 and above

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

2шт.

3

549347R1

BRACKET, oil cooler mounting RH, 4 row wide and 6 row narrow, serial no. 9048 and below

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

549518R1

CLIP, oil cooler mounting, serial no. 9048 and below

2шт.

5

387327R1

BUSHING

oil cooler mounting, serial no. 9048 and below

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

6

549519R1

HYDRAULIC HOSE,0.50" ID x 38.00", SAE 30R2 Type 3 or SAE 100R3

Top Return 0.50" ID x 38.00", SAE 30R2 Type 3 or SAE 100R3

1шт.

7

519536R1

HOUSING, bearing

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 znd sq-nk crg

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

20731R1

SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole

17/32 x 1 x .054 sq hole

4шт.

8

566632R92

BALL BEARING,44.04mm ID x 62mm OD x 18mm W

BEARING

2шт.

9

21745R1

SNAP RING,#118, Ext

Ring, Snap, #118, Ext

1шт.

10

289357R1

RING

retaining

1шт.

11

549534R1

SPACER

bearing

1шт.

12

549535R2

SHAFT

rotor, serial no. 60299 and below

1шт.

12

140450C1

SHAFT

rotor, w/internal spline, serial no. 60300 and above

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

479370R1

KEY,1/4" Sq x 2", Par

1/4 x 2 sq parallel

1шт.

14

132794H1

WASHER

13/32 x 1-3/4 x .180 znd

1шт.

15

54770H

GROMMET

ISOMOUNT

4шт.

16

549517R1

BUSHING

isomount

4шт.

17

55281C1

WASHER

.516 x 1-1/4 x .120

8шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

18

549530R91

NO LONGER SERVICED

MOTOR ASSY, hydraulic, only serviceable items are

1шт.

Ref #18 - (Keyed Shaft) 07/03/96

1шт.

ITEM#18- ALL MOTORS SUB TO 1272625C91-(RH)- CUSTOMER SAYS MOTOR RUNS BACKWARD/ SUPPLY 1272056C92 (LH) AND NEW SPLINED SHAFT (140450C1) S/B S-3942 AND S-4559 JP

1шт.

18

1272625C91R

REMAN-HYD MOTOR

400 INTERNATIONAL HARVESTER CYCLO PLANTER, MOTOR ASSY, hydraulic (1/71-12/80), Reman for New PN 549530R91

1шт.

18

1272625C91C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

55192C1

KEY

hydraulic motor

1шт.

123343C2

PACKAGE, REPAIR

KIT, repair, serial no. 60299 and below, order motor assy, 1272625C91, shaft, 140450C1, two retainers, 1272626C1 and two washers, 120388

1шт.

18

141250C93

MOTOR

ASSY, hydraulic, only serviceable item is

1шт.

Ref #18A - (Splined Shaft) 07/03/96

1шт.

18

1272625C91R

REMAN-HYD MOTOR

400 INTERNATIONAL HARVESTER CYCLO PLANTER, ASSY, hydraulic (1/71-12/80), Reman for New PN 141250C93

1шт.

18

1272625C91C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

123343C2

PACKAGE, REPAIR

KIT, repair, serial no. 60300 and above, order motor assy, 1272625C91, two retainers, 1272626C1 and two washers, 120388

1шт.

18

1272625C91

MOTOR, HYDRAULIC

MOTOR ASSY, hydraulic, only serviceable item is

1шт.

18

1272625C91R

REMAN-HYD MOTOR

400 INTERNATIONAL HARVESTER CYCLO PLANTER, MOTOR ASSY, hydraulic (1/71-12/80)

1шт.

18

1272625C91C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1272340C1

KIT

repair

1шт.

1272626C1

RETAINER

motor

2шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

20

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

21

995218R1

CLAMP

hose, serial no. 9048 and below

3шт.

21

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Serial no. 9049 and above #06, .44/.78 Type F Worm

3шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 znd hex-hd mach

1шт.

19417R1

BOLT

3/8 x 1 CDP sq-nk crg

5шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

22

549614R1

HOSE, 1/2 in. pressure, serial no. 9048 and below

1шт.

Ref #22 - 7/8" on one end 07/03/96

1шт.

22

56771C1

HYDRAULIC HOSE,0.50" ID x 180.00", Class 7

. Pressure, Serial No. 9049 and Above 0.50" ID x 180.00", Class 7

1шт.

Ref #22A - 3/4" on one end 07/03/96

1шт.

23

549805R1

RING

2шт.

24

549957R1

HYDRAULIC HOSE,0.5" ID x 176.00", SAE 100R6, SAE J517

Bottom return 0.5" ID x 176.00", SAE 100R6, SAE J517

1шт.

25

306132C1

CABLE TIE,14.5" L

STRAP

1шт.

26

468256R1

CLAMP

hose

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

27

55192C1

KEY

hydraulic motor, for hydraulic motor 549530R91

1шт.

56767C1

GREASE

LUBRICANT, 1/2 ounce, special for hydraulic motor shaft, key & bore

1шт.
