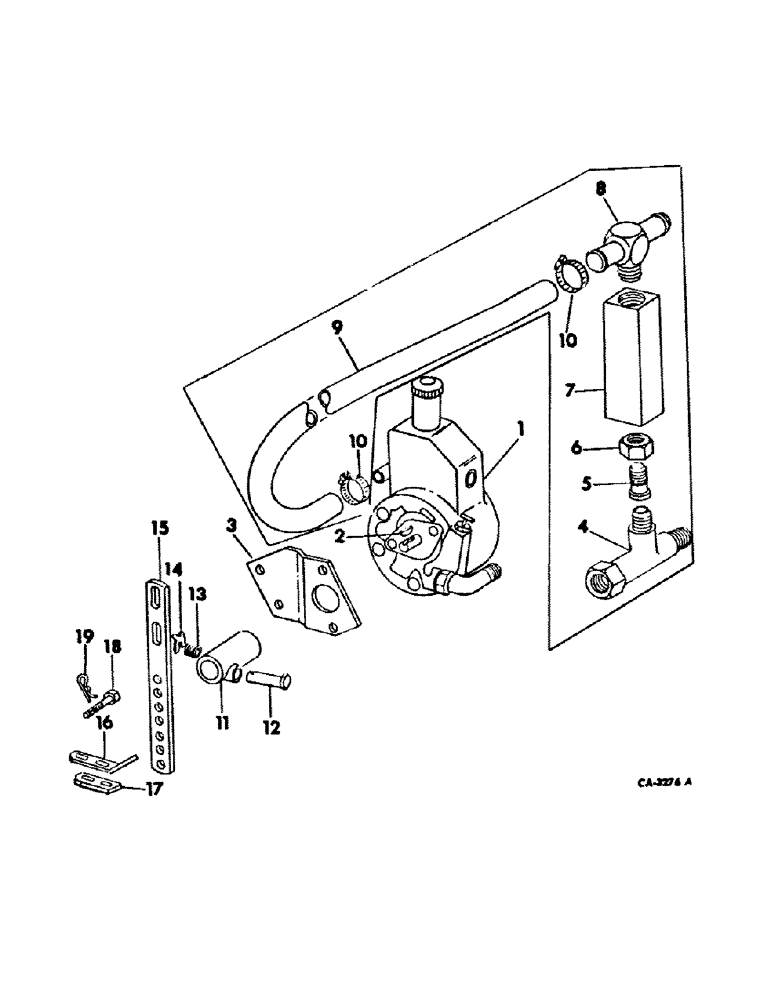

Запчасти Case IH 400 (A-068) - HYDRAULIC PUMP AND RELATED PARTS, 1000 RPM PTO

1

149368C91

PUMP

ASSY, hydraulic, 8 GPM, w/product graphic caution, 145167C1, for components see list of parts under details of 1000 RPM hydraulic pump

1шт.

1

1986017C1R

REMAN-HYD PUMP

Reman for New P/N 149368C91

1шт.

1

1986017C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

*

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

*

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

218217

KEY

3/16 x 5/8 Woodruff no. 61

1шт.

3

56780C1

PLATE

pump mounting

1шт.

*

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

*

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

3/4-16 C-Z 37 deg hyd flared tube 90 deg swivel, used only with hydraulic pump, 56779C1 without internal flow control valve

1шт.

5

56781C1

ADAPTER

REDUCER, 1/4-18 x 1/2 OD tube, used only with hydraulic pump, 56779C1 without internal flow control valve

1шт.

6

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 3/4-16 37 deg hyd flared tube, used only with hydraulic pump, 56779C1 without internal flow control valve

1шт.

7

539794R91

VALVE

ASSY, flow control, used only with hydraulic pump, 56779C1 without internal flow control valve

1шт.

8

56782C91

TEE

ASSY, used only with hydraulic pump, 56779C1 without internal flow control valve

1шт.

9

391259R1

HYDRAULIC HOSE,12.70 mm ID, SAE 100R6, SAE J517

HOSE, 25 in., used only with hydraulic pump, 56779C1 without internal flow control valve

1шт.

10

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Used only with hydraulic pump, 56779C1 without internal flow control valve #06, .44/.78 Type F Worm

1шт.

11

56785C92

COUPLING

ASSY, pressed, order couplings, 1279354C91

1шт.

11

149503C92

COUPLING

ASSY, single modules, twist type, order coupling, 1279354C91, composed of

1шт.

*

1261263C1

COLLAR

1шт.

*

1261262C1

CAP WASHER

COVER, collar

1шт.

*

HUB, (NSS)

1шт.

*

1261261C1

PIN

1шт.

*

1268269C1

PRODUCT GRAPHIC, caution

1шт.

*

383878R1

SNAP RING,1.25, Int, #125

RING, 1.388 int ret

1шт.

11

1279354C91

COUPLING

ASSY, single modules, push pull type, replaces 56785C92 and 149503C92, composed of

1шт.

*

21505R1

BALL,1/2" Dia, Stainless

1/2 grade ST100 metal

3шт.

*

1279357C1

COLLAR

1шт.

*

HUB, (NSS)

1шт.

*

279762R1

SNAP RING,#168, Ext

RING, 1.560 ext ret

1шт.

*

1279356C1

SPRING

1шт.

12

631976R91

PIN

ASSY, lock, used only with coupling, 56785C92

1шт.

13

455347R1

VALVE SPRING

SPRING, locking pin, for pin, 631976R91

1шт.

14

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

x, for pin, 631976R91

1шт.

15

56774C1

BRACKET

adjusting

1шт.

*

M906

HEADED PIN,7/16" x 1 1/8"

PIN, 7/16 x 1-1/8 std-hd

2шт.

*

120395

WASHER

.469 x .922 x .051 znd

4шт.

*

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

16

56775C91

ANGLE

STRAP ASSY

1шт.

17

56776C1

BAR

STRAP

1шт.

*

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2-13 x 4-1/2 znd hex-hd cap

2шт.

*

120396

WASHER

.531 x 1.062 x .074 C-Z

4шт.

*

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

*

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

*

180141

SPRING,Hex, 7/16" - 14 x 5/8", Gr 5

SCREW, 7/16-14 x 5/8 znd hex-hd cap

1шт.

*

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

18

56788C1

BOLT,Hex, 5/8" - 11 x 1 1/2", Drilled

5/8-11 x 1-1/2 znd hex-hd drilled

2шт.

*

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

*

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex. jam

2шт.

19

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.
