Запчасти Case IH 400 (A-066) - SEEDMAN SPECIAL DRILL PLANTING ATTACHMENT, DRAWBAR AND CONNECTIONS

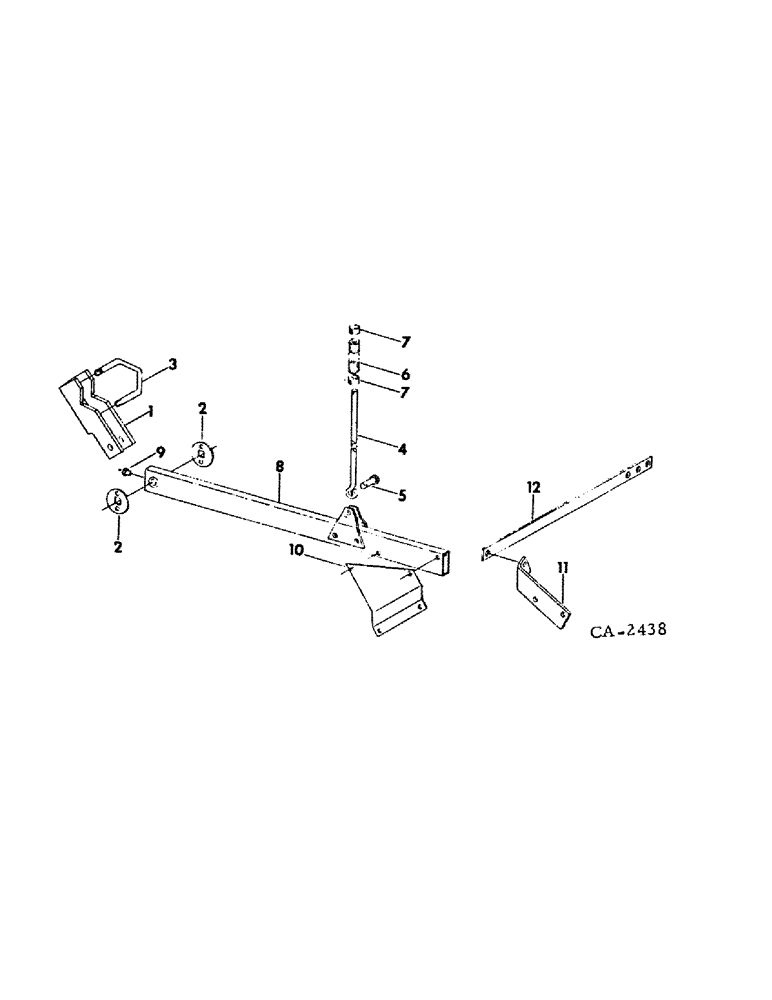

Схема запчастей Case IH 400 - (A-066) - SEEDMAN SPECIAL DRILL PLANTING ATTACHMENT, DRAWBAR AND CONNECTIONS
6
12
8
7
5
3
11
1
2
10
9
7
4
2

Артикул

Название

Примечание

Количество

1

548125R1

BRACKET, head

1шт.

18613R1

BOLT,Hex, 3/4"-10 x 3 1/4", G2

3/4 x 3-1/4 znd hex-hd mach

1шт.

280954

NUT,3/4"-10, G5

1шт.

2

486998R1

WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk

wear

2шт.

3

484386R1

BOLT,5/8" - 11 x 6.1"

U-BOLT, head bracket

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

2шт.

4

546563R2

ROD

planter lift

1шт.

5

21816R1

HEADED PIN,1/2" x 1 3/8"

PIN, 1/2 x 1-3/8 C-Z std-hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

6

PO121

SPRING

pressure

1шт.

7

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR w/SET SCREW, 21803R1

2шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

2шт.

8

548632R1

DRAWBAR ASSY

1шт.

9

66584D

FITTING

1/4 STR drive lub

1шт.

10

548634R1

PLATE, support LH

1шт.

10

548635R1

PLATE, support RH

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd hex-hd mach

2шт.

18817R1

BOLT,Hex, 1/2" - 13 x 6", Gr 2

1/2 x 6 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

11

548636R1

BRACKET, jockey bar LH

1шт.

11

548637R1

BRACKET, jockey bar RH

1шт.

12

548638R1

BAR, jockey

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd sq-nk crg

2шт.

Выбрано товаров: 24
