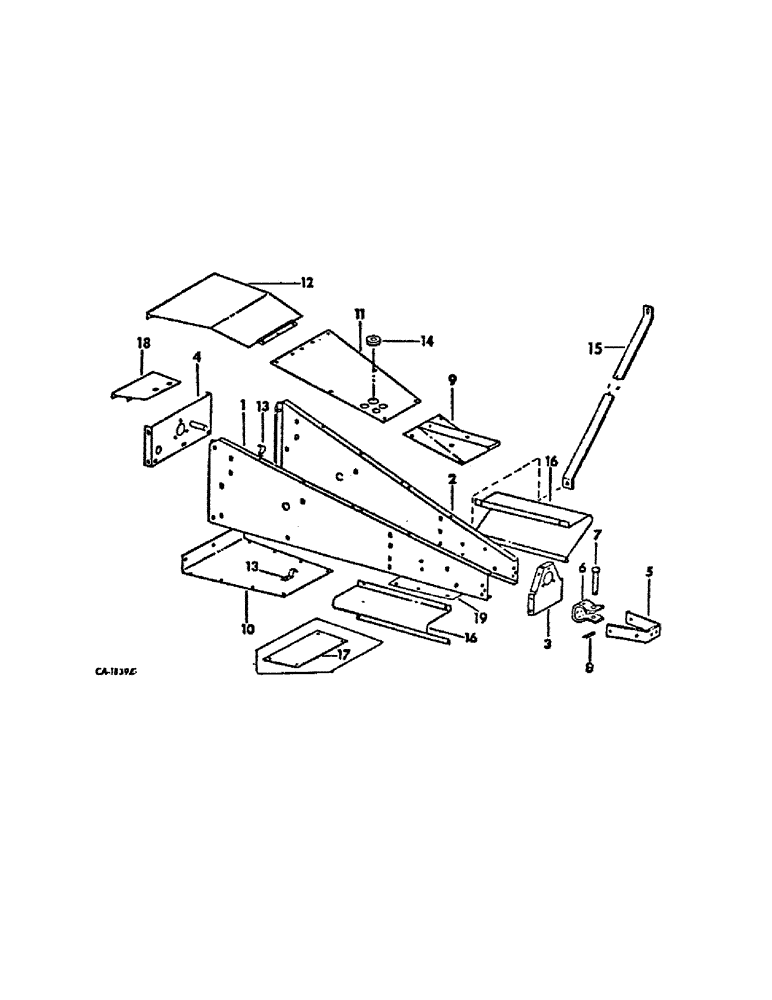

Запчасти Case IH 400 (A-006) - HITCH AND CONNECTIONS

1

546407R1

SHEET ASSY, hitch side RH, serial no. 1607 and below

1шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

1

548486R4

SHEET ASSY, hitch side RH, 4 and 6 row, serial no. 1608 and above

1шт.

1

57630C2

SHEET ASSY, hitch side RH, 8 row, serial no. 1608 and above

1шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

4шт.

2

546406R1

SHEET ASSY, hitch side LH, serial no. 1607 and below

1шт.

2

548485R4

SHEET

ASSY, hitch side LH, 4 and 6 row, serial no. 1608 and above

1шт.

2

57629C2

SHEET ASSY, hitch side LH, 8 row, serial no. 1608 and above

1шт.

3

546410R2

PLATE

PTO drive forward bearing

1шт.

3

57336C1

PLATE, hydraulic drive forward bearing

1шт.

546417R3

GROMMET

hose, for hydraulic drive

1шт.

4

546411R2

PLATE

ASSY, lower bearing mounting

1шт.

21860R1

BOLT, 3/8 x 7/8 znd sq-nk crg

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

120377

NUT,3/8" - 16, Gr 5

14шт.

5

546414R2

CLEVIS

hitch

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

25526R1

NUT,1/2"-13, G8

1/2 PHC type 8

4шт.

6

484505R2

YOKE

CLEVIS, hitch bracket

1шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap type 8

1шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap type 8

1шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21434R1

NUT,5/8"-11, G8

5/8-11 znd type 8 hex.

2шт.

7

480791R1

PIN

hitch

1шт.

8

520175R1

CLIP

PIN, quick attachable cot.

1шт.

9

546415R11

COVER

w/product graphics, 202707C2 and 64553C1, forward bearing, for PTO drive

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

10

548484R1

BRACE, hitch lower, serial no. 1608 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

11

113119C91

COVER, w/product graphics, 113117C1 and 136018C2, hitch lower, for PTO drive

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

11

113120C91

COVER, w/product graphics, 113117C1 and 136018C2, hitch lower, for hydraulic drive

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

12

547299R2

COVER, w/product graphic, 113484C1, hitch

1шт.

19570R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

1/4 x 5/8 znd hex-hd mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

13

468256R1

CLAMP

hydraulic hose, 1 used for 6 row wide and 8 row, 2 used for 4 row and 6 row narrow

1шт.

14

187954

GROMMET,1" ID x 1 3/4" x .062"

rubber, for PTO drive

2шт.

15

57668C1

BRACE, hitch, 8 row wide

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

4шт.

568741R1

WASHER, special

2шт.

489407R1

WASHER

.656 x 1.250 x .135 CDP

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

25128R1

PIN,5/8" x 3 3/4"

PIN, 5/8 x 3-3/4 znd std-hd

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

16

548627R1

BUMPER, for PTO drive

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

17

546416R1

BRACE, lower hitch, serial no. 1607 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

187954

GROMMET,1" ID x 1 3/4" x .062"

rubber

2шт.

18

549954R2

SHIELD, PTO drive belt

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

19

548704R1

TIE, hitch lower, 6 row wide and 8 row

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.
