Запчасти Case IH 400 (A-064) - SEEDMAN SPECIAL DRILL PLANTING ATTACHMENT, HOPPER SUPPORT AND DRIVE

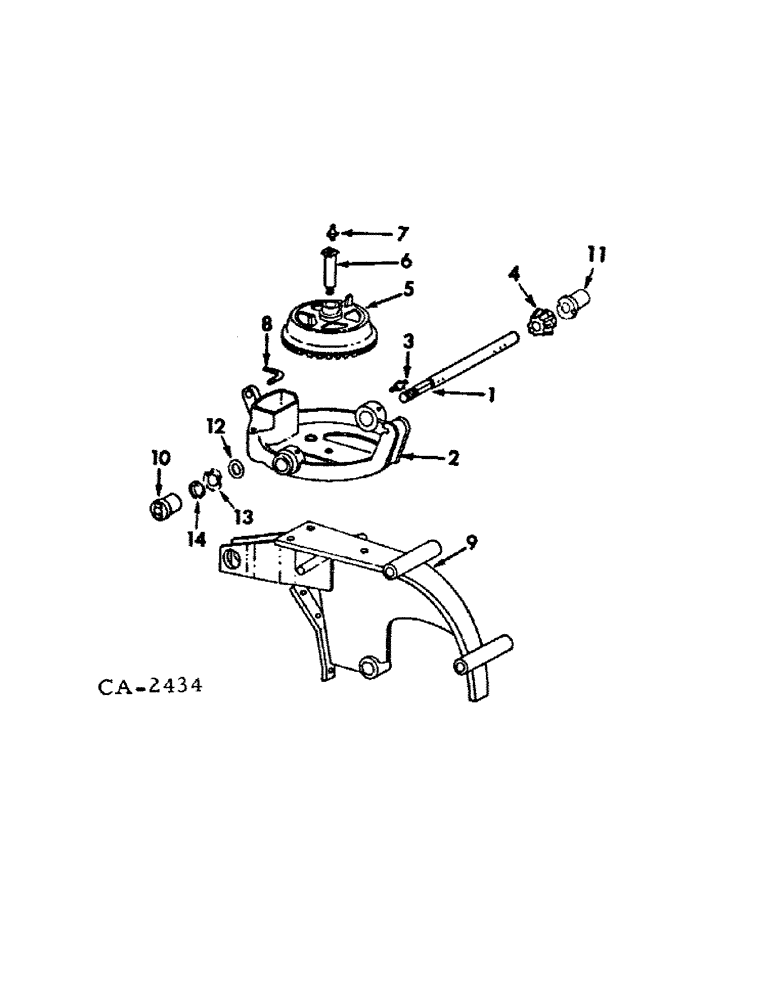

Схема запчастей Case IH 400 - (A-064) - SEEDMAN SPECIAL DRILL PLANTING ATTACHMENT, HOPPER SUPPORT AND DRIVE
10
2
1
14
13
5
9
8
11
4
3
7
6
12

Артикул

Название

Примечание

Количество

1

541318R1

SHAFT

drive gear

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

541319R1

BRACKET

hopper

1шт.

3

66584D

FITTING

3/16 STR drive type

2шт.

4

492758R1

GEAR

PINION, 10T bevel

1шт.

455182R1

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

1шт.

5

472121R1

GEAR WHEEL

GEAR, 40 T bevel

1шт.

6

493085R1

STUD,1/2" - 13 x 2 23/64"

bevel gear

1шт.

7

126098

FITTING

5/16 STR drive type

1шт.

8

541320R1

BOLT,L, 5/16" - 18 x 1.72"

U-BOLT, hopper hold down

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

129-419

WING NUT,5/16"-18

NUT, hopper hold down

1шт.

9

493087R3

BRACKET ASSY, disk

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

10

541321R1

ADAPTER

sprocket brg

1шт.

11

541322R1

BUSHING,0.635" ID x 1.22" OD x 1.47"

feed shaft

1шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

12

608701R1

WASHER

21/32 x 1-1/4 x 16 ga, units w/left hand drive

1шт.

13

542438R1

SPRING WASHER

finger spring, units w/left hand drive

1шт.

14

542439R1

WASHER

SPACER, feed shaft, units w/left hand drive

1шт.

Выбрано товаров: 30
