Запчасти Case IH 400 (A-063) - SEEDMAN SPECIAL DRILL PLANTING ATTACHMENT, GROUND EQUIPMENT

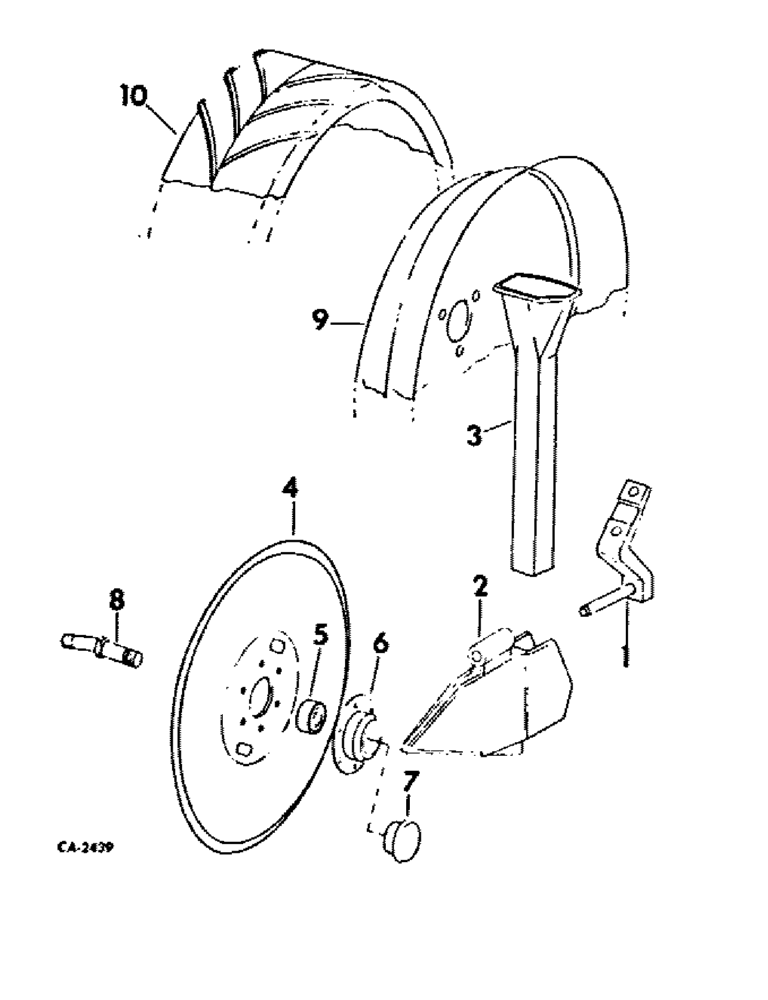

Схема запчастей Case IH 400 - (A-063) - SEEDMAN SPECIAL DRILL PLANTING ATTACHMENT, GROUND EQUIPMENT
4
10
5
9
7
8
3
1
2
6

Артикул

Название

Примечание

Количество

1

547671R91

BRACKET

ASSY

1шт.

19807R1

PIN, 1/8 x 1 PHC coil spring

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

2

493109R3

SHOE

all purpose

1шт.

3

493097R1

TUBE

seed

1шт.

4

492756R1

DISC

DISK, 13-1/2 in., opener

2шт.

5

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball, opener, replaces 492757R91

2шт.

5

1268017C91GV

BEARING

Value, Ball Bearing

2шт.

6

492710R1

RETAINER

FLANGE, brg, opener

2шт.

47-410

RIVET,FH, 1/4" x 5/8"

1/4 x 5/8 fl-hd solid

12шт.

7

492709R1

CAP

brg housing, opener

2шт.

8

492750R1

BOLT,5/8" - 11

double disk tie, opener

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 znd hex. jam

1шт.

23467R1

NUT,Jam, 5/8"-11, G5, LH

5/8-11 znd hex. jam LH THD

1шт.

9

483328R1

DISC

DISK HALF, 7 x 16 press wheel

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT, 5/16-18 x 3/4 znd flange lock

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd flange lock

6шт.

10

483118R1

TYRE/TIRE

TIRE, 7 x 16 concave traction

1шт.

Выбрано товаров: 19
