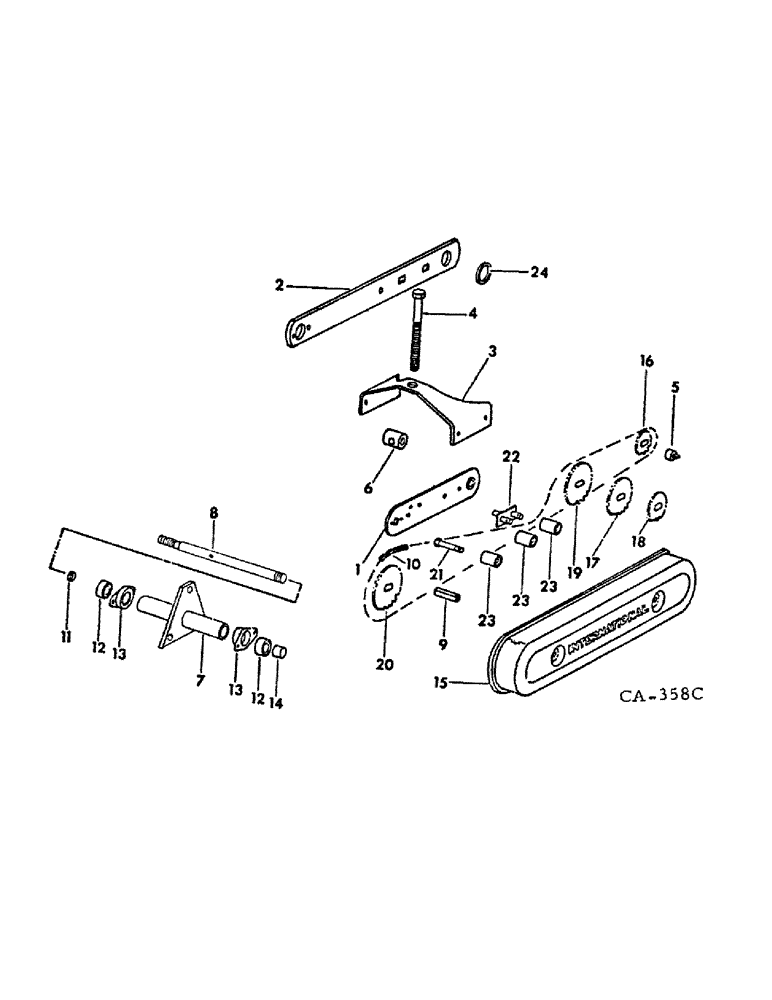

Запчасти Case IH 400 (A-062) - SEEDMAN SPECIAL DRILL PLANTING ATTACHMENT, FRAME AND WHEEL

1

493124R1

PLATE ASSY, wheel rail

1шт.

2

493127R1

RAIL, wheel

1шт.

3

493128R2

ANCHOR, adj screw

1шт.

17465R1

BOLT, 1/2 x 1-3/8 znd hex-hd mach

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znd hex. jam

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

4

493058R1

BOLT,Wheel, 5/8" - 11 x 6 1/2"

press wheel adj

1шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11 C-Z SLT hex.

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

522591R1

PLUG

locking

1шт.

5

493080R1

FITTING

SPACER, frt cover

1шт.

6

482461R1

PIN

SWIVEL, adj screw

1шт.

180168

SCREW,Hex, 1/2" - 13 x 5/8", Gr 5

BOLT, 1/2 x 5/8 znd hex-hd mach

1шт.

7

493066R1

HUB

ASSY, press wheel

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

20535R1

CLEVIS PIN

PIN, 3/16 znd rod end

1шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga C-Z

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

8

541316R1

AXLE

wheel

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

9

493081R1

UNION

SPACER, rear cover

1шт.

22475R1

BOLT, 3/8 x 5/8 znd sq-nk crg

1шт.

10

CHAIN, drive, use 104 links from a 10 ft. roll marked, 489466R91 and two connecting links, 489467R1

1шт.

11

493072R2

WASHER

SPACER, axle, thin

1шт.

12

582010R91

BEARING ASSY,0.625" ID x 1.375" OD x 0.4331"

wheel

2шт.

13

493073R1

FLANGE

wheel brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/6 x 3/4 znd sq-nk crg

2шт.

19569R1

BOLT,Hex, 5/16"-18 x 7/8", G2

5/16 x 7/8 znd hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

14

541317R1

ADAPTER

HUB, sprocket drive

1шт.

15

493082R2

COVER

chain

1шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 znd hex-hd mach

2шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

2шт.

16

524662R1

SPROCKET ASSY.

SPROCKET, 11T

1шт.

17

493119R1

SPROCKET ASSY.

SPROCKET, 18T

1шт.

18

524663R1

SPROCKET ASSY.

SPROCKET, 14T

1шт.

19

524664R1

SPROCKET ASSY.

SPROCKET, 20T

1шт.

20

524665R1

SPROCKET ASSY.

SPROCKET, 22T

1шт.

21

180157

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, 7/16-14 x 2-1/2 znd hex-hd cap

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

1шт.

272122

BUSHING

7/16-14 znd hex. jam

1шт.

22

493077R1

BRACKET

ASSY, idler

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

23

492759R1

ROLLER

idler

3шт.

24

493103R1

WASHER

SPACER, wheel rail

1шт.
