Запчасти Case IH 400 (A-060) - SEED FLOW MONITOR AND CONNECTIONS

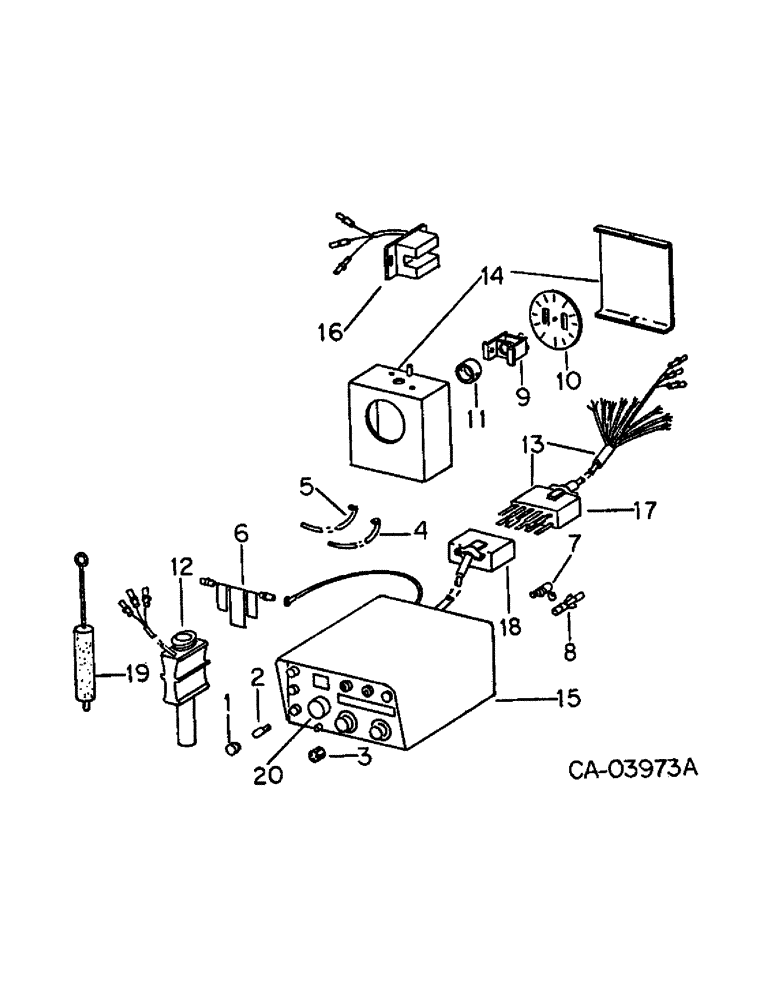

Схема запчастей Case IH 400 - (A-060) - SEED FLOW MONITOR AND CONNECTIONS
6
20
2
11
14
8
13
3
1
18
10
9
19
12
4
17
7
16
15
5

Артикул

Название

Примечание

Количество

1

58499C1

LENS

amber

1шт.

2

58554C1

BULB,C2F, #1892, 14V

LAMP

1шт.

3

106652

FUSE,3 Amp, Type 3AG

3 ampere

1шт.

4

58555C1

FASTENER

TIE WRAP, 7 in.

1шт.

5

306132C1

CABLE TIE,14.5" L

TIE WRAP, 14 in., replaces 58556C1

1шт.

6

58557C1

ELECTRICAL WIRE

WIRE, shortening

1шт.

7

58558C1

SUPPRESSOR

spark plug

1шт.

8

58559C1

SUPPRESSOR

distributor

1шт.

9

58603C1

BRACKET

disk

1шт.

10

DISK, sensor, 6 slot, serviced as a machine attachment

1шт.

10

DISK, sensor, 8 slot, serviced as a machine attachment

1шт.

10

58604C1

DISC

DISK, sensor, 12 slot

1шт.

10

60655C1

DISC

DISK, sensor, 18 slot

1шт.

11

59065C1

COLLAR

1шт.

21242R1

HEADED PIN

PIN, 1/4 x 1.75 znd std-hd

1шт.

648002

KNIFE

1/8" x 3/4", 2 used with duplex hitch

1шт.

12

59363C1

SENSOR

SEED SENSOR, used with digital cyclomitor monitor

1шт.

12

61729C1

SENSOR

SEES SENSOR, used with seed flow monitor

1шт.

13

57684C91

HARNESS

planter, 4 row

1шт.

13

57685C91

HARNESS

planter, 6 row

1шт.

13

57686C91

HARNESS

planter, 8 row

1шт.

14

DRUM w/SLOT WHEEL ASSY, pickup, serviced only as a machine att

1шт.

15

79298C1

REMAN-ELECT MONITOR

CONSOLE, digital cyclomitor monitor

1шт.

133925C1

PRODUCT GRAPHIC, console panel

1шт.

15

79299C

CONSOLE, seed flow monitor

1шт.

133924C1

DECAL

PRODUCT GRAPHIC, console panel

1шт.

16

128815C1

RELAY

sensor

1шт.

17

128813C1

CONNECTOR,ELECTRIC

PLUG, male connector socket

1шт.

18

128814C1

SOCKET

female connector

1шт.

19

128817C1

BRUSH, COMMUTATOR

BRUSH, seed sensor cleaning

1шт.

20

128816C1

BUZZER

sonalert

1шт.

Выбрано товаров: 31
