Запчасти Case IH 400 (A-058) - STEP AND PLATFORM ATTACHMENT

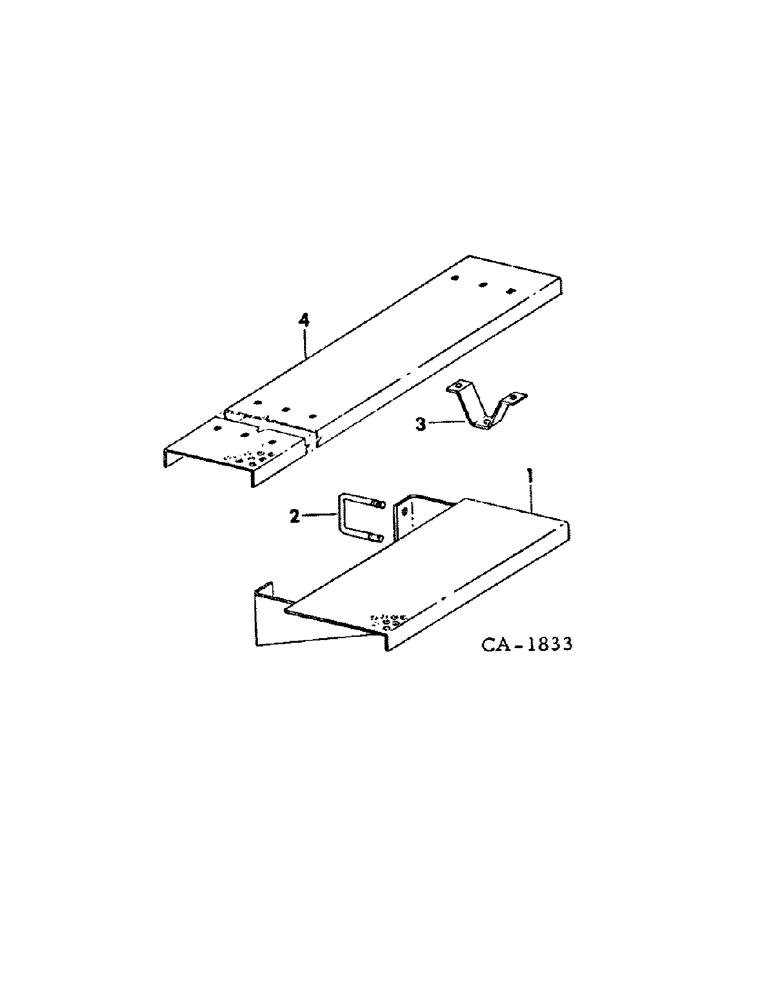

Схема запчастей Case IH 400 - (A-058) - STEP AND PLATFORM ATTACHMENT
2
4
3
1

Артикул

Название

Примечание

Количество

1

547026R1

STEP ASSY

1шт.

2

478243R1

BOLT,1/2" - 13 x 3.6"

U-BOLT, step

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

3

547024R1

BRACE, support, 6 for 4 row and 6 row narrow, 8 for 6 row wide & 8 row

1шт.

17142R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 2

BOLT, 3/8 x 3-1/2 znd sq-nk crg, 1 per brace

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg, 2 per brace on 4 row and 6 row narrow, 1 per brace on 6 row wide and 8 row

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg, 1 per brace on 6 row wide & 8 row

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 3 per brace 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

3 per brace 3/8"-16, G5

1шт.

4

547025R1

PLATFORM, one per side, 4 row and 6 row narrow

1шт.

4

548786R1

PLATFORM, one per side, 6 row wide and 8 row

1шт.

Выбрано товаров: 11
