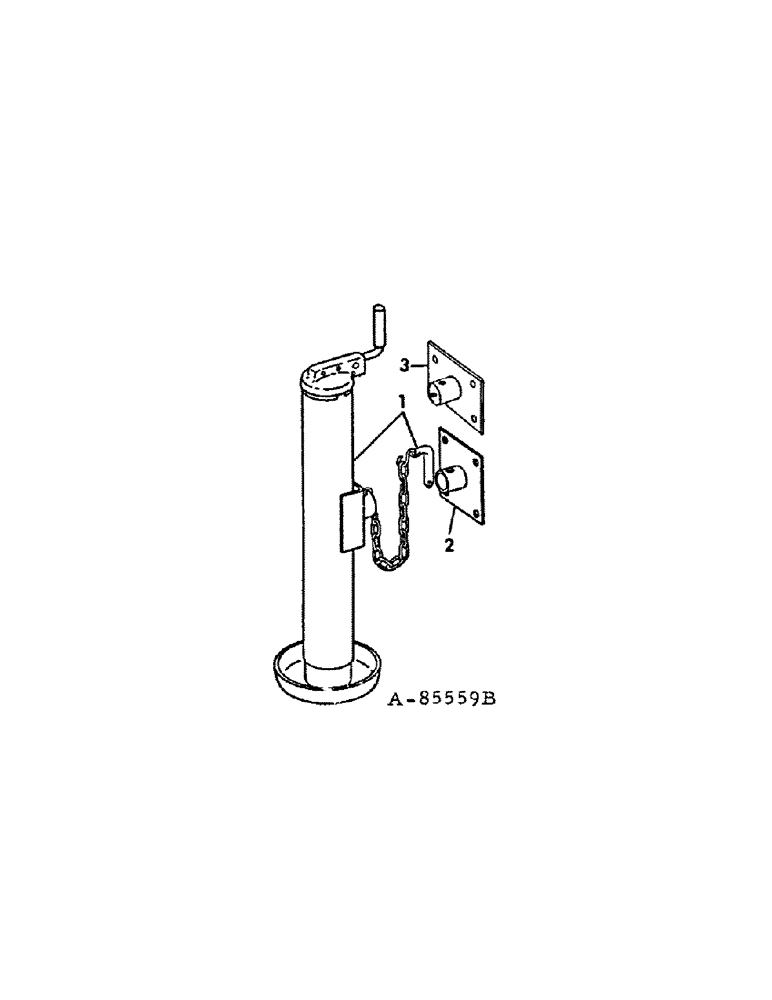

Запчасти Case IH 400 (A-058[A]) - JACK STAND

1

547403R91

HOIST

JACK ASSY, serial no. 9048 and below

1шт.

1

549619R1

JACK

ASSY, serial no. 9049 and above

1шт.

2

547400R1

BRACKET ASSY, pivot, serial no. 9048 and below

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

548702R1

BRACKET ASSY, pivot, serial no. 9049 and above, 2 used w/duplex hitch

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga C-Z

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga znd

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.
