Запчасти Case IH 400 (A-005) - MAIN FRAME AND STORAGE LINKS

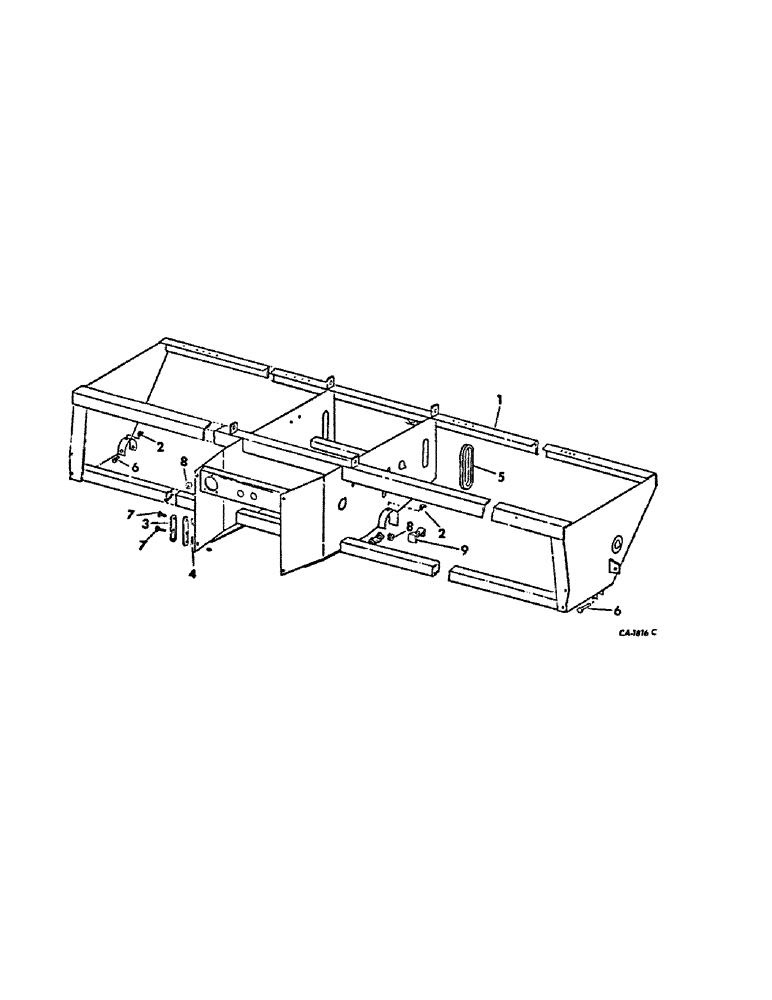

Схема запчастей Case IH 400 - (A-005) - MAIN FRAME AND STORAGE LINKS
9
8
3
4
6
8
2
1
2
6
7
7
5

Артикул

Название

Примечание

Количество

1

546434R2

FRAME

ASSY, main, 4 row wide, serial no. 1607 and below

1шт.

1

55148C2

FRAME ASSY, main, 4 row wide, serial no. 1608 and above

1шт.

1

57637C3

FRAME ASSY, main, 4 row adjustable

1шт.

1

55149C3

FRAME ASSY, main, 4 row convertible and 6 row narrow

1шт.

1

548678R4

FRAME ASSY, main, 6 row wide

1шт.

1

548694R3

FRAME ASSY, main, 8 row narrow

1шт.

1

57636C2

FRAME ASSY, main, 8 row wide

1шт.

2

16964R91

FITTING

1/4-28NS 90 deg angle lub, 4 used with 4 row & 6 row narrow, 6 used with 6 row wide & 8 row

1шт.

3

546456R1

LINK, transport, serial no. 1607 and below

2шт.

3

548525R1

LINK, transport, serial no. 1608 and above, 2 used with 4 and 6 row, 4 used with 8 row

1шт.

4

520175R1

CLIP

PIN, quick attachable cot. 2 used with 4 and 6 row, 4 used with 8 row

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z, 1 per pin

1шт.

5

546417R3

GROMMET

hose, 2 used with 4 row and 6 row narrow

1шт.

5

57337C1

GROMMET, hose, 2 used with 6 row wide and 8 row

1шт.

6

Q3553

PIN

1/2 x 5 std-hd

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

7

540874R1

HEADED PIN,15.88mm OD x 53.57mm L

PIN, 5/8 x 1-7/8 znd std-hd, replaces 21880R1, 2 used for 4 and 6 row, 4 used for 8 row

1шт.

8

548262R1

GROMMET

2шт.

9

57664C1

BEARING, main frame, 8 row wide

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znd hex. jam

4шт.

Выбрано товаров: 22
