Запчасти Case IH 400 (A-055[A]) - SEED FIRMING WHEEL ATTACHMENT, FOR USE WITH RUNNER OPENERS, ONE PER ROW

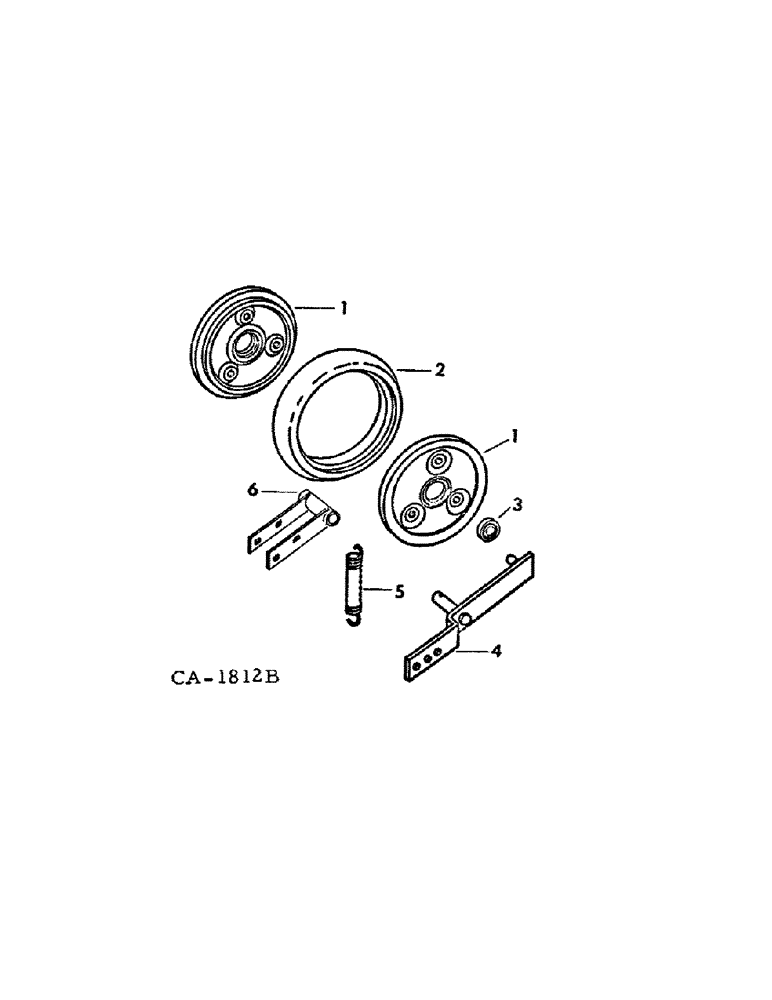

Схема запчастей Case IH 400 - (A-055[A]) - SEED FIRMING WHEEL ATTACHMENT, FOR USE WITH RUNNER OPENERS, ONE PER ROW
3
2
1
4
1
6
5

Артикул

Название

Примечание

Количество

1

527151R1

PLATE

WHEEL, seed firming disc

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

2

527227R1

TYRE/TIRE

TIRE, 7 x 1 semi-pneumatic

1шт.

3

467880R91

BALL BEARING,0.503" ID x 1.375" OD x 0.4331"

ASSY, seed firming ball

1шт.

4

471214R91

BRACKET

PIVOT ASSY, wheel

1шт.

20869R1

WASHER

17/32 x 7/8 x 16 ga C-Z

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2 C-Z hex-hd mach

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

1шт.

446354

WASHER,1/4"

5/16 x 7/8 x 16 ga C-Z

1шт.

5

622016R1

SPRING

extension, replaces 207199R1

1шт.

21644R1

PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

1шт.

137273

COTTER PIN

PIN, 3/16 x 2-1/2 C-Z cot.

1шт.

6

55029C1

SUPPORT ASSY, wheel pivot

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 znd sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

Выбрано товаров: 20
