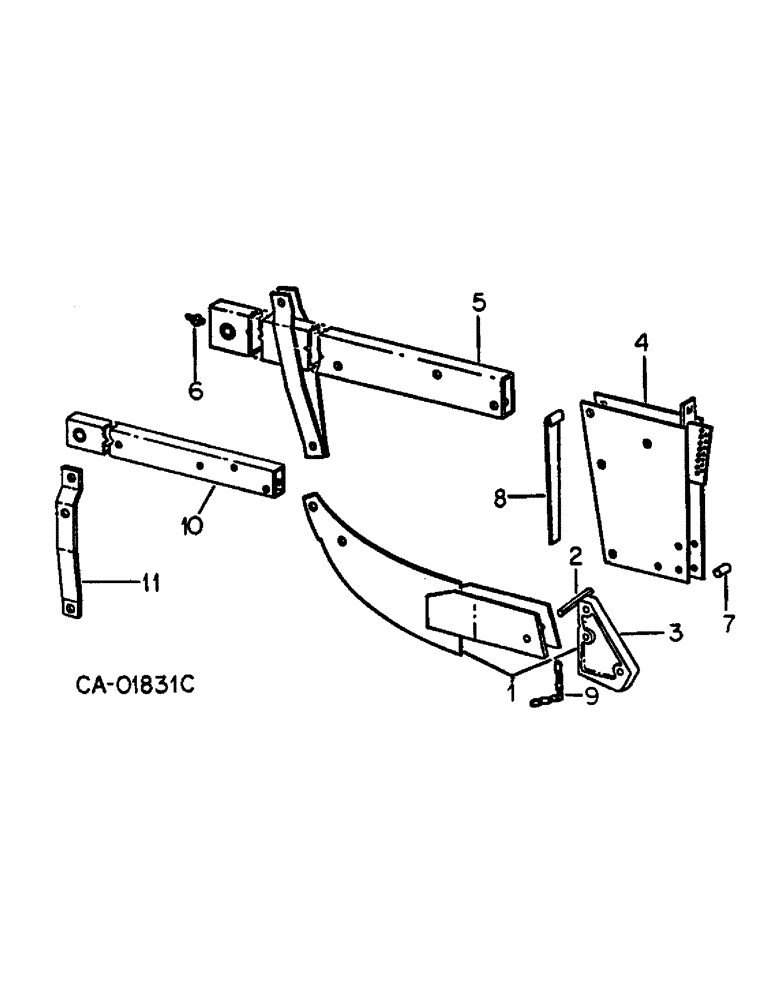

Запчасти Case IH 400 (A-054) - RUNNER OPENER, ONE PER ROW

1

546554R92

OPENER

ASSY, runner

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

21492R1

PIN

3/16 x 1-5/8 HV coiled spring

1шт.

3

489404R2

FROG

runner

1шт.

14036R1

RIVET, 3/8 x 1-1/2 74 deg csk hd solid

1шт.

14064R1

RIVET, 3/8 x 1-13/16 74 deg csk-hd solid

1шт.

4

546564R1

BRACKET ASSY, runner

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

5

548720R1

TUBE ASSY, drawbar, for two center rows

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

6

66584D

FITTING

3/16 STR drive lubrication

1шт.

7

12302N

SPACER,1/4" Pipe x 15/16"

1/4 x .938 pipe

2шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 znd hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

8

546582R1

COVER, front plate

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

9

548451R1

CHAIN (AG)

CHAIN, seed opener

4шт.

10

64576C1

TUBE ASSY, drawbar, outer rows, replaces 546567R1 when used w/2 arm 546570R2 and 1 bolt 180185, 1 washer 120384 and 1 nut 120378

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

11

546570R2

ARM, pickup & runner brace

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
