Запчасти Case IH 400 (A-053) - DOUBLE DISK OPENER AND SCRAPER, NON STAGGERED, QUANTITIES SHOWN ARE PER ROW

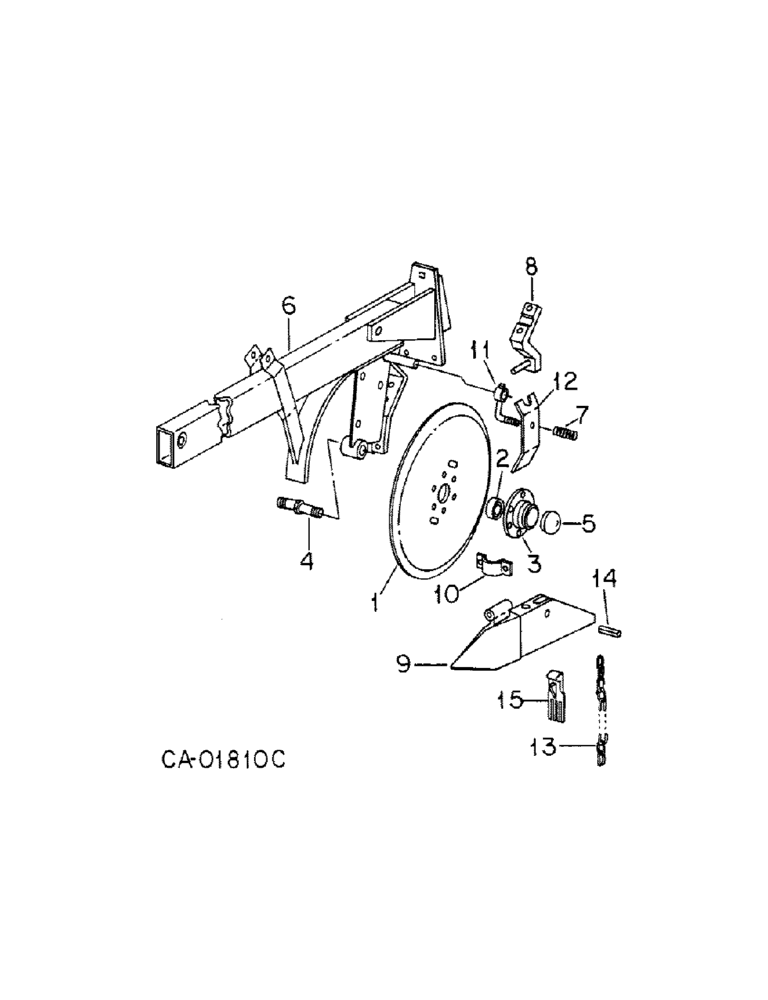

Схема запчастей Case IH 400 - (A-053) - DOUBLE DISK OPENER AND SCRAPER, NON STAGGERED, QUANTITIES SHOWN ARE PER ROW
7
4
15
1
8
10
2
6
12
11
5
14
13
3
9

Артикул

Название

Примечание

Количество

1

492756R1

DISC

DISK, 13-1/2 in. opener

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-hd solid

12шт.

2

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball, replaces 492757R91

2шт.

2

1268017C91GV

BEARING

Value, Ball Bearing

2шт.

3

492710R1

RETAINER

FLANGE, bearing

2шт.

4

492750R1

BOLT,5/8" - 11

tie

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga znd

3шт.

124847

COLLAR

5/8-11 znd hex. jam

1шт.

23467R1

NUT,Jam, 5/8"-11, G5, LH

5/8-11 znd hex. jam LH THD

1шт.

5

492709R1

CAP

bearing housing

2шт.

6

546571R1

FRAME ASSY, disk opener, outer

1шт.

6

548729R2

FRAME ASSY, disk opener, inner

1шт.

7

6633

SPRING

see note

4шт.

8

547671R91

BRACKET

ASSY, shoe pivot

1шт.

19807R1

PIN, 1/8 x 1 PHC coil spring

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

548452R3

SHOE

all purpose

1шт.

9

128823C92

SHOE (ASSY)

SHOE, Cou-Till

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

10

546581R1

RETAINER

seed tube

1шт.

10

59718C1

RETAINER, seed tube, for Cou-Till shoe

1шт.

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, hose

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 znd hex hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

11

493111R1

SPACER

ASSY, left, see note

1шт.

11

493112R1

SPACER

ASSY, right, see note

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

120376

NUT,5/16"-18, G5

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

12

471240R1

SUPPORT

SCRAPER, see note

4шт.

13

548451R1

CHAIN (AG)

CHAIN, seed opener, not used on Cou-Till shoe

4шт.

14

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

All purpose shoe 3/16" x 1 3/4", Coiled

1шт.

14

17084R1

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8 x 1 HV coiled spring, Cou-Till shoe

1шт.

15

128965C1

DEFLECTOR

seed

2шт.

Выбрано товаров: 37
